Iron Sheet Hydraulic Hole Punch Machine 100 Ton With Hand Foot / Electric Pump
Iron Sheet Hydraulic Hole Punch Machine 100 Ton With Hand Foot / Electric Pump
Iron Sheet Hydraulic Hole Punch Machine 100 Ton With Hand Foot / Electric Pump
Iron Sheet Hydraulic Hole Punch Machine 100 Ton With Hand Foot / Electric Pump
Specifications
Brand Name :
SHENGHONG
Model Number :
CH-100
Certification :
ISO
Place of Origin :
MADE IN CHINA
MOQ :
1set
Price :
negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000sets/month
Delivery Time :
10 days after payment
Packaging Details :
wood case
Product :
hydraulic puncher
Punching force :
100T
Max thickness of sheet :
20mm of copper sheet/20 mm of metal sheet
Depth of throat :
125mm
Weight :
80kg
Accessories :
16,18,22,25mm
Description

Iron Sheet Hydraulic Hole Punch Machine 100 Ton With Hand Foot / Electric Pump​

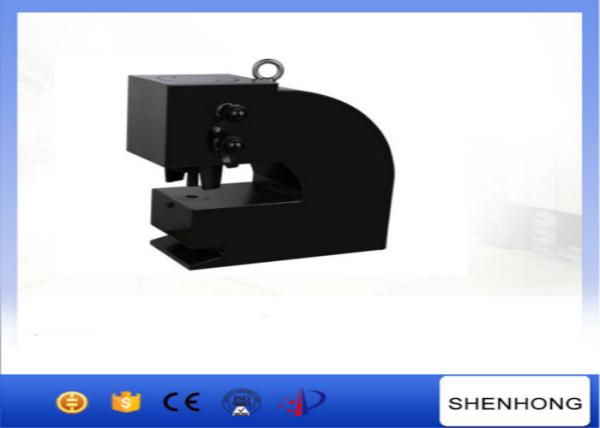

CH -60/70/80/100 eyelet punching machine is a remote control tool, works with an external hydraulic pump (Hand Foot or Electric pump). It is designed to punch round holes on Cu/Al Busbar. With 4 pairs standard punching dies (10.5 / 13.8 / 17 / 20.5mm), punching hole size is between diameter 10.5mm and diameter 20.5mm. Busbar thickness should below or equivalent to 12mm. With hydraulic power, 4 pairs sharp punching dies, easy fast and clean punching can be achieved.

1 Hydraulic hole puncher is designed for punching holes on Cu/AI bus bar
2 Punching the different kind metal sheet up to 20mm.

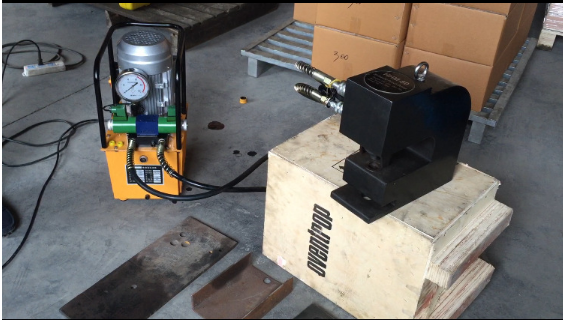

3 This type of hydraulic hole puncher can match up hand pump or electric pump.

Data Sheet

Aperture(mm)22,25,28,32mm
Output(T)100
Max Thickness(Iron Sheet)20mm
Throat Depth130mm
Overall Dimension(mm)380mm(L)*220mm(W)*380mm(H)
Package Dimension(mm)405mm(L)*240mm(W)*500mm(H)
Weight(kg)125
Applicable ScopeCopper, angle,Iron Sheet


Technical Data

Type
Output
Throat Depth
Model(mm)
Weight
Thickness iron/steel
CH-60
31T
95mm
10.5,13.8,17.5,20.5
19.5kgs
6mm/10mm
CH-70
35T
110mm
10.5,13.8,17.5,20.5
28kgs
10mm/12mm

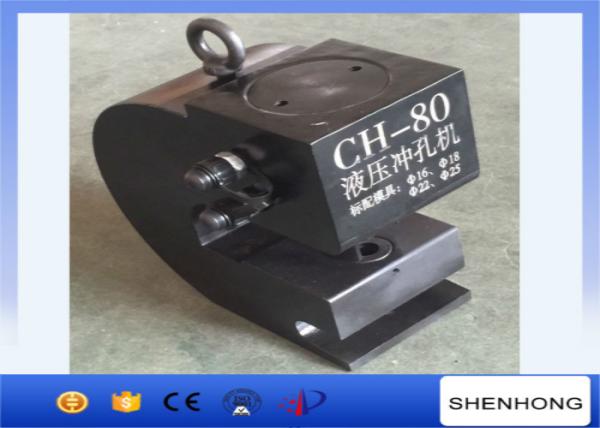

CH-80
50T
115mm
16,18,22,25
50kgs
16mm/20mm
CH-100
100T
125mm
16,18,22,25
80kgs
20mm/20mm


Iron Sheet Hydraulic Hole Punch Machine 100 Ton With Hand Foot / Electric Pump

The after-sale service is an important part of our marketing and sales work. The quality of service provided will not only influence the company credit, but also closely relate to the safely running of the equipment. In order to maintain the good reputation of BOYU, we will strictly observe relevant national regulations about Product-Quality Law and provide high quality products with the principle of hospitable reception, enthusiastic service, quick response and prompt resolution. We will conscientiously implement the after-sale service work in full-scale, and make commitment to our clients.

1. On behalf of the consumer installation, commissioning products;
2. According to consumer requirements, technical guidance on the use of other aspects;
3. To ensure the supply of maintenance spare parts;
4. Responsible for the maintenance services, and provide regular maintenance, periodic maintenance;
5. To provide consumers with regular telephone interviews;
6. The handling of consumer complaints letters and visits and telephone advice, answer consumer advice.
While a variety of ways to collect consumer opinions on the quality of products, and timely improvements under the circumstances.
Factory sales directly, we are dedicated to provide you with high quality products, excellent service and competitive price.
We sincerely hope to establish a long-term relations cooperation with you.
Your success is our success.
