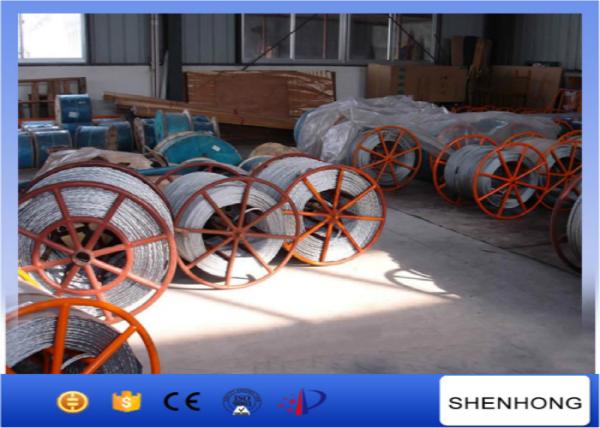

300KN Breaking Load Anti Twist Wire Rope , Hot Dip Galvanised Steel Wire Rope
300KN Breaking Load Anti Twist Wire Rope , Hot Dip Galvanised Steel Wire Rope
300KN Breaking Load Anti Twist Wire Rope , Hot Dip Galvanised Steel Wire Rope
300KN Breaking Load Anti Twist Wire Rope , Hot Dip Galvanised Steel Wire Rope
Specifications
Brand Name :
SHENHONG
Model Number :
20
Certification :
ISO
Place of Origin :
MADE IN CHINA
MOQ :
1000M
Price :
USD2-3/m
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10000M per day
Delivery Time :
15 days after deposit
Packaging Details :
with spool
Type :
Anti twist Wire Rope
Structure :
Hexagon with 18 strands
Standard Length (m) :
1000
Diameter :
20mm
Application :
Transmission Line Stringing
Breaking Load :
300KN
Description

300KN Breaking Load Anti Twist Wire Rope , Hot Dip Galvanised Steel Wire Rope ​

Scope of application

This wirerope is widely applicable in electrical wiring, mining, high-lift hoisting machinery, ship bulding, port etc.

Wirerope description

This type is designed for specail engineering needs, and made of fine hot galvanized steel wire through specail production process. The wirerope is inter-braided with multiple strands into a rope with square or hexagonal and face.

As the center of the end face counteracts the resultant monent. The rope maintains torsion-proof when affected by force, and it greatly reduces corrosion and rust.

Parameters

Type Nominal Diameter
(mm)		 Structure Weight
(Kg/m)		 Wirerope Breaking Force(T) Standard Length
(m)
Strand Structure
1x19 1x19w 1T25 1T29
YS6-8x19 6 Square8-Strand 0.115 16 17.5 1000
YS7-8x19 7 Square8-Strand 0.185 32 36 1000
YS8-8x19 8 Square8-Strand 0.220 38 40 1000
YS9-12x19 9 Square12-Strand 0.280 50 55 1000
YS11-12x19 11 Square12-Strand 0.480 70 80 1000
YS13-12x19 13 Square12-Strand 0.630 105 120 1000
YS16-12x19 16 Square12-Strand 0.925 140 158 1000
YS18-12x19 18 Square12-Strand 1.150 185 540 1000
YS20-12x19 20 Square12-Strand 1.320 250 1000
YS22-12x1T25 22 Square12-Strand 1.882 320 1000
YS24-12x1T25 24 Square12-Strand 2.034 360 1000
YS26-12x1T25 26 Square12-Strand 2.350 420 1000
YS28-12x1T29 28 Square12-Strand 3.012 480 1000
YS30-12x1T29 30 Square12-Strand 3.320 540 1000
YL9-12x19 9 Hexagon12-Strand 0.297 50 1000
YL11-12x19 11 Hexagon12-Strand 0.480 70 1000
YL13-12x19 13 Hexagon12-Strand 0.630 105 1000
YL16-12x19 16 Hexagon12-Strand 0.925 140 1000
YL18-12x19 18 Hexagon12-Strand 1.150 185 1000
YL20-12x19 20 Hexagon12-Strand 1.320 250 1000
YL22-12xT25 22 Hexagon12-Strand 1.822 320 1000
YL24-12xT25 24 Hexagon12-Strand 2.034 360 1000
YL26-12xT25 26 Hexagon12-Strand 2.350 420 1000
YL28-12xT29 28 Hexagon12-Strand 2.882 480 1000
YL30-12xT29 30 Hexagon12-Strand 3.120 540 1000
YL13-18x19 13 Hexagon18-Strand 0.645 105 120 1000
YL16-18x19 16 Hexagon18-Strand 0.925 140 158 1000
YL18-18x19 18 Hexagon18-Strand 1.198 185 210 1000
YL20-18x19 20 Hexagon18-Strand 1.598 280 300 1000
YL22-18xT25 22 Hexagon18-Strand 1.898 389 1000

Breaking Force:

It's a tensile force value when the wirerope is broken. Based on the experiments analysis, the conclusion is that has obvious linear correlation between the breaking force of the steel wire rope and the diameter of the steel wire; the breaking force of rope has obvious linear correlation with the diameter, number of bends, tensile strengty.
