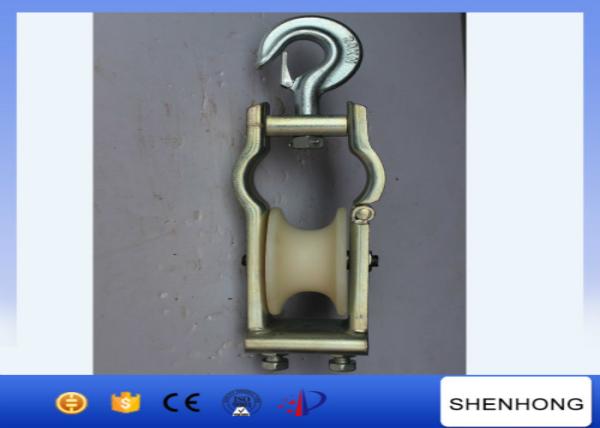

Universal Stringing Conductor Cable Pulley Block With Hook SHC-120X58
Universal Stringing Conductor Cable Pulley Block With Hook SHC-120X58
Universal Stringing Conductor Cable Pulley Block With Hook SHC-120X58
Universal Stringing Conductor Cable Pulley Block With Hook SHC-120X58
Specifications
Brand Name :
SHENGHONG
Model Number :
SHC-120X58
Certification :
ISO
Place of Origin :
MADE IN CHINA
MOQ :
10pcs
Price :
USD10-20
Payment Terms :
L/C, T/T, Western Union
Delivery Time :
10-15 days after payment
Packaging Details :
Carton
Type :
Hook type Stringing Pulley Blocks
Wheel Diameter :
φ120mm
Wheel Width :
58mm
Rated Load :
20KN
Weight :
2.5kg
Wheel Material :
nylon
Description

Universal Stringing Conductor Cable Pulley Block With Hook SHC-120X58 ​


Description:
1. We manufacture a lot of models Cable pulling block for different uses in the overhead transmission line construction
2. They have are used to support conductors, OPGW,ADSS, communication lines
3. The sheave of the pulley blocks are made from high strength MC nylon,or aluminum materials ,and the frame of blocks are made of galvanized steel.
4. cable pulley block are high strength and flexibility, easy to use, light weight, wear-resisting, and long service life.

Universal Stringing Blocks with Hooks
The stringing blocks are used for overhead transmission line conductor stringing operation. It can be hanged or installed on cross arms.

Item No.ModelO. D. of Sheave (mm)Sheave Width (mm)Rated Load (KN)Weight (kg)Material
10261SHC-80X50Φ805051.9Aluminum
10262SHC-120X30Φ1203052.1
10263SHC-160X40Φ16040102.5
10264SHC-120X58Φ12058203.5
10271SHCN-80x50Φ805051.4Nylon
10272SHCN-120x30Φ1203051.6
10273SHCN-160x40Φ16040102
10274SHCN-120x58Φ12058202.5

Application: The block is used for conductor stringing operation. It could be used for suspension with the hook fitting, or used on cross arms.

Shipment
1. The blocks will be shipped in container
2. We will ship the products within one month normally after receiving the payment.
3. Stock is available for standard product.

Package
1. The blocks will be packed in plywood case and loaded in container.
2. It also can be packed in steel frame case.

Payment
1. We accept T/T and L/C.
2. Please send swift copy of T/T if you arrange payment by T/T
3. Please send us the L/C draft to us before issue L/C.

Universal Stringing Conductor Cable Pulley Block With Hook SHC-120X58
