Specifications
Brand Name :
SHENGHONG
Model Number :
BXQ-V-30
Certification :
ISO
Place of Origin :
MADE IN CHINA
MOQ :
1pc
Price :
negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100pcs/day
Delivery Time :
10 workdays after payment
Packaging Details :
carton
Product Name :

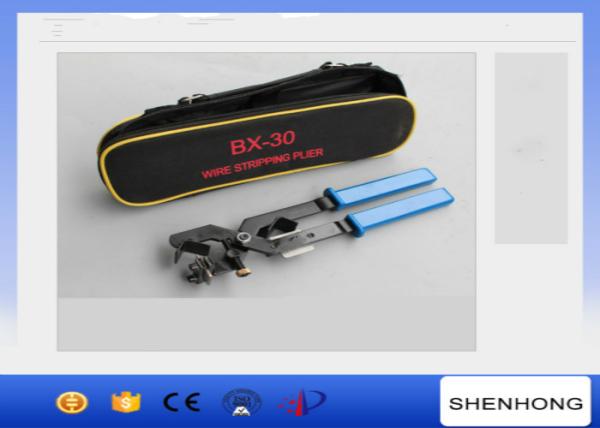

BX-30 Wire Stripping Plier For Stripping 15-30mm Diameter Cable
Type :
Cable Stripper
Stripping Cable diameter :
15-30mm
Weight :
0.7kg
Stripping Range :
70-300mm2 insulating layer
Dimension(mm) :
280x80x55mm
Description

XLPE Cable Stripping Tools Dia 15-30 mm Wire Stripping Pliers BXQ-V-30 ​

Brief description

1. XLPE power cable stripping tool

2.ISO9001:2008
3.Adjustable thickness
4.Replaced or resharped blade

Data Sheet

Model Weight(KG) Size(mm) Capacity Dia (mm) Capacity Dia (inch) Thickness on Max end cable Thickness on Max middle cable
BXQ-Z-40B 1.04 275*95*60 14-40 0.55-1.75 6mm 4mm
BXQ-Y-22 0.1 140*42*38 4.5-25 0.18-9.8 2.5mm 2.5mm
BXQ-W-25A 0.12 175*42*28 6-25 0.24-0.98 5mm 5mm
BXQ-V-30 0.87 325*72*50 15-30 0.59-1.18
BXQ-W-40 0.87 245*87*55 15-40 0.59-1.57
BXQ-Z-90 2.58 500*137*80 40-90 1.57-3.54
BXQ-V-45 0.56 248*80*90 45 1.77
BXQ-U-45 1.42 290*120*75 65 2.56
BXQ-C-40 1.50 380*220*120 FOR ACSR Dia 20-40mm 0.79*1.57inch

Features

BXQ-Z-40B
Stripping thickness can be adjusted
Suitable for stripping the end and the middle of conducting wire and cable

BXQ-Y-22
Stripping thickness can be adjusted
Suitable for stripping the end and the middle of conducting wire and cable
Trangular stripping knife withstands break-off and destruction
Protable and compact

BXQ-W-25A
Stripping depth and knife swivel angle can be adjusted
Suitable for stripping the end and the middle of conducting wire and cable
Ideal for overhead cable stripping

BXQ-V-30
Stripping the end and middle of cable insulation layer
Stripping thickness can be adjusted
Blade can be resharpened or replaced
Don't reach Cu-Al during stripping

BXQ-W-40/BXQ-Z-90/BXQ-V-45/BXQ-U-45/BXQ-C-40
Stripping the end of cable insulated and semi-conductive layer
Stripping thickness can be adjusted
Blade can be resharpened or replaced
Don't reach Cu-Al during stripping
