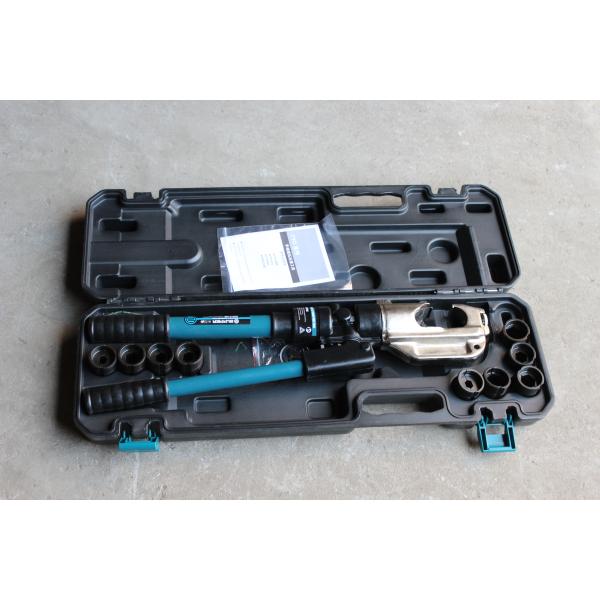

Hexagon Underground Cable Installation Tools Hydraulic Cable Lug Crimping Tool EP-510
Hexagon Underground Cable Installation Tools Hydraulic Cable Lug Crimping Tool EP-510
Hexagon Underground Cable Installation Tools Hydraulic Cable Lug Crimping Tool EP-510
Hexagon Underground Cable Installation Tools Hydraulic Cable Lug Crimping Tool EP-510
Specifications
Brand Name :
SHENHONG
Model Number :
EP-510
Certification :
ISO
Place of Origin :
Jiangsu,China
MOQ :
2pcs
Price :
negotiation
Payment Terms :
L/C, T/T
Supply Ability :
1000pcs per month
Delivery Time :
7days after payment
Packaging Details :
plastic box
Crimping type :
Hexagon
Crimping range :
50-400mm2
Crimping force :
13ton
Stroke :
38mm
Die sets :
50, 70, 95, 120, 150, 185, 240, 300, 400mm2
Product name :
EP-510 Hydraulic Crimping Tool Manual Hydraulic Hose Crimping Tool
Description

Hexagon Underground Cable Installation Tools Hydraulic Cable Lug Crimping Tool EP-510 ​

Description

1. Applied for leads of power and civil cable in which copper and aluminum terminals and cennection tubes are pressed by hydraulic pressure.

2. Compact crimp connection and good conductivity,not easy to break.

3. High speed,low pressure,fast oiling ,easy opertion and the oil cycling is convenient.

4. The tool is packeged in plastic box.

Quick Information

1. Hydraulic Tool,hydrauic crimping tool,hydraulic crimping plier ,hydraulic compression tool
2. hydraulic tool Automatic restoration when the pressure reach 700kg/cm2

3. hydraulic tool 180-degree rotatable head

4. Crimping force:13T

5. Stroke:38mm

6. Oil capacity:145cc

7. Standard dies:50.70.95.120.150.185.240.300 sq.mm

8. Hydraulic oil:K32

Technical Reference:

ITEM CRIMPING RANGE PRESSURE(t) STROKE(mm) OIL STOCKPILE(cc) SIZE OF SANDARD DIES(mm²) WEIGHT(kg)
EP-430 ≤300mm² 13 38 145 50.70.95.120.150.185.240.300.400 6.4
EP-510 ≤350mm² 13 38 145 50.70.95.120.150.185.240.300.400 7.8

Hexagon Underground Cable Installation Tools Hydraulic Cable Lug Crimping Tool EP-510
