17MM Stroke Underground Cable Installation Tools Hydraulic Hose Crimping Tool HT-300
17MM Stroke Underground Cable Installation Tools Hydraulic Hose Crimping Tool HT-300
17MM Stroke Underground Cable Installation Tools Hydraulic Hose Crimping Tool HT-300
17MM Stroke Underground Cable Installation Tools Hydraulic Hose Crimping Tool HT-300
Specifications
Brand Name :
SHENHONG
Model Number :
HT-300
Certification :
ISO
Place of Origin :
Jiangsu,China
MOQ :
2pcs
Price :
negotiation
Payment Terms :
L/C, T/T
Supply Ability :
1000pcs per month
Delivery Time :
7days after payment
Packaging Details :
plastic box
Crimping type :
Hexagon
Crimping range :
16-300mm2
Crimping force :
60KN
Stroke :
17mm
Length :
460mm
Weight :
3.3kg
Description

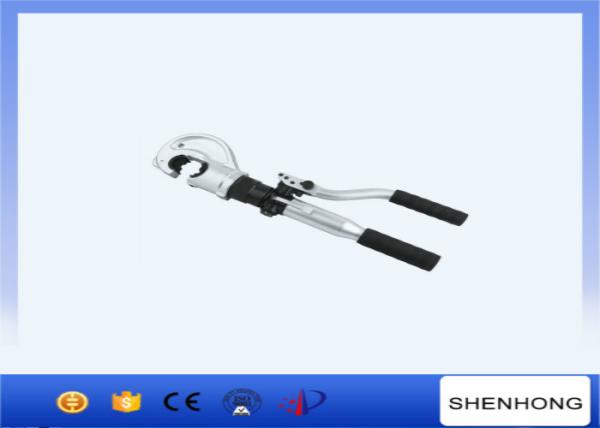

17MM Stroke Underground Cable Installation Tools Hydraulic Hose Crimping Tool HT-300 ​

Description

1. The tool has two stages speed of the ram and automatically stitches form a fast advancing speed to a slower crimping speed.

2. For ease of operation and comfort the operator the tool head can be fully rotated through 180 degreess.

3. The tool is provided with full automatic reaction when crimping complete, it can save the time of manual pressure release.

4. With interchangeable crimping dies with multiple crimping geometry's.

5. We have attractive and reasonable price.

6. We have special departments to ensure that no strict quality control any quality problem before delivery.

FEATURES

1. The tool two stages speed of theram and automatically switches from a fast advancing speed of dies to a slower crimping speed.

2. For ease of operation and comfort the operator, the tool head can be fully rotated through 180 degrees.

3. The tool is provided with max pressue valve, when the max pressure is activeated and a "click" heard to warn the operator stop working.

4. With interchangeable crimping dies with multiple crimping geometry's.

SPECIFICATIONS
Crimping Range 16-300mm²
Crimping Force 60KN
Crimping Type Hexagon
Stroke 17mm
Length 460mm
Weight 3.30kg

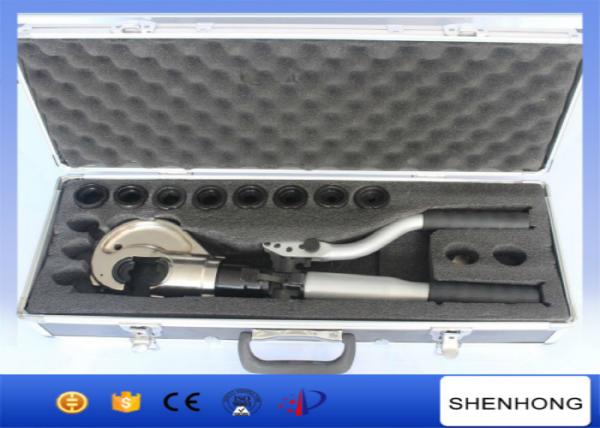

Package Aluminium alloy code case
Criming Dies 16,25,35,50,70,95,120,150,185,240,300mm2

T-300 Safety system inside

17MM Stroke Underground Cable Installation Tools Hydraulic Hose Crimping Tool HT-300

1. The tool two stages speed of theram and automatically switches from afast advancing speed of dies to a slower crimping speed.

2. For ease of operation and comfort the operator the tool head can be fully rotated through 180 degrees.

3. The tool is provided with max pressure valve,when the max pressure is activeated and a "click" heardto warm the operator stopping working.
