CH-60 Overhead Line Construction Tools 31Ton Output busbar machine hydraulic puncher for round hole
CH-60 Overhead Line Construction Tools 31Ton Output busbar machine hydraulic puncher for round hole
CH-60 Overhead Line Construction Tools 31Ton Output busbar machine hydraulic puncher for round hole
CH-60 Overhead Line Construction Tools 31Ton Output busbar machine hydraulic puncher for round hole
Specifications
Brand Name :
SHENHONG
Model Number :
CH--60
Certification :
BV,ISO
Place of Origin :
Jiangsu,China
MOQ :
1 set
Price :
negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
500 Set/Sets per Month
Delivery Time :
ten days after deposit
Packaging Details :
plywood case
Application :
punching
Output :
31T
Thickness iron :
6mm
Thickness copper :
10mm
Throat depth :
95mm
Model :
10.5,13.8,17.5,20.5mm
Description

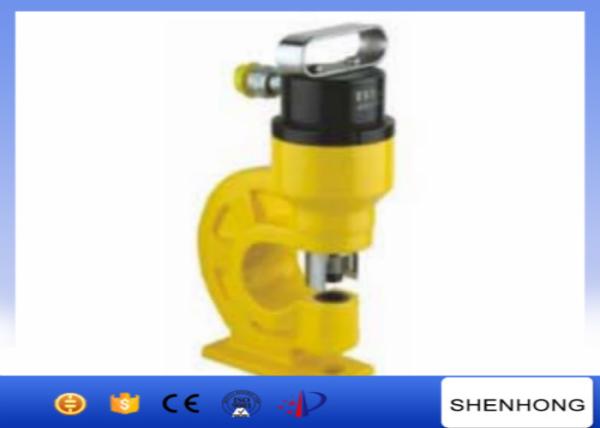

CH-60 31Ton Output busbar machine hydraulic puncher for round hole

Application

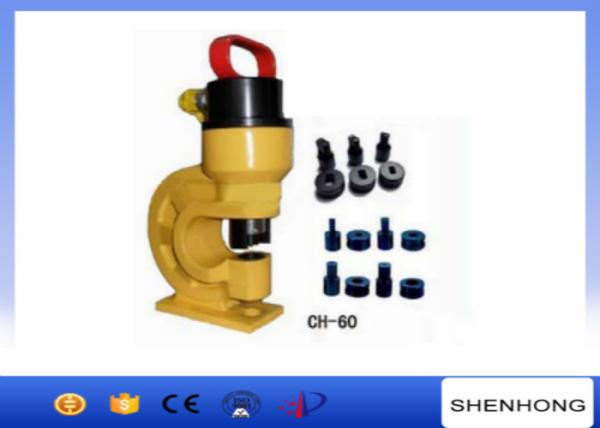

It is a remote control tool, works with an extremal hydraulic pump(Hand Foot or Electric pump). It is desighed to punch round holes on Cu/Al Busbar. With 4 pairs standard punching dies(10.5/ 13.8/ 17/ 20.5mm), punching hole size is between diameter 10.5mm and diameter 20.5mm. Busbar thickness should below or equivalent to 12mm. With hydraulic power, 4 pairs sharp punching dies, easy fast and clean punching can be achieved.

Quality Control

We have the complete production equipments and professional production team to manage the whole process from production to packing shipment. All products will 100% test before delivery to ensure the quality.

Technical data of CH-60 31Ton Output busbar machine hydraulic puncher for round hole

Model Output Thickness iron Thickness copper Throat depth Weight Model(mm) Size(mm)
CH-60 31T 6mm 10mm 95mm 19kg 10.5,13.8,17.5,20.5 350*245*110

CH-60 Overhead Line Construction Tools 31Ton Output busbar machine hydraulic puncher for round hole

Shipment

1. The machine will be shipped in container

2. We will ship the products within one month normally after receiving the payment.

3. Stock is available for standard product.

Payment

1. We accept T/T and L/C.

2. Please send swift copy of T/T if you arrange payment by T/T

3. Please send us the L/C draft to us before issue L/C.
