Overhead Line Construction Tools , 50Ton Output CH-80 Hydraulic Puncher Machine For Punching Hole
Overhead Line Construction Tools , 50Ton Output CH-80 Hydraulic Puncher Machine For Punching Hole
Overhead Line Construction Tools , 50Ton Output CH-80 Hydraulic Puncher Machine For Punching Hole
Overhead Line Construction Tools , 50Ton Output CH-80 Hydraulic Puncher Machine For Punching Hole
Specifications
Brand Name :
SHENHONG
Model Number :
CH-80
Certification :
BV,ISO
Place of Origin :
Jiangsu,China
MOQ :
1 set
Price :
negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
500 Set/Sets per Month
Delivery Time :
ten days after deposit
Packaging Details :
plywood case
Application :
construction
Output :
50 ton
Thickness copper :
20mm
Throat depth :
115mm
Model :
16,18,22,25mm
Weight :
50kg
Description

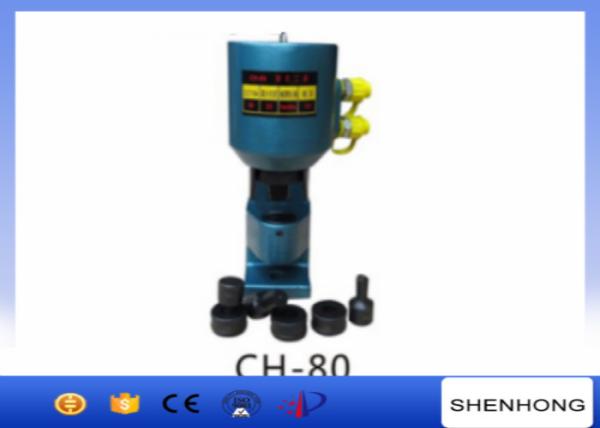

50Ton Output CH-80 Hydraulic Puncher Machine For Punching Hole

Application

It is a remote control tool, works with an extremal hydraulic pump(Hand Foot or Electric pump). It is desighed to punch round holes on Cu/Al Busbar. With 4 pairs standard punching dies(10.5/13.8/17/20.5mm), punching hole size is between diameter 10.5mm and diameter 20.5mm. Busbar thickness should below or equivalent to 12mm. With hydraulic power, 4 pairs sharp punching dies, easy fast and clean punching can be achieved.

Quality Control

We have the complete production equipments and professional production team to manage the whole process from production to packing shipment. All products will 100% test before delivery to ensure the quality.

Our Values

1, Take First-Class Quality as Target and First-class Service.

2, As Responsibility, To Succeed By Scientific Management.

3, Customer in Heart, Quality in Hand, Technology in the Lead.

Technical data of 50Ton Output CH-80 Hydraulic Puncher Machine For Punching Hole

Model Output Thickness iron Thickness copper Throat depth Weight Model(mm) Size(mm)
CH-80 50T 16mm 20mm 115mm 50kg 16,18,22,25 400*260*160

Overhead Line Construction Tools , 50Ton Output CH-80 Hydraulic Puncher Machine For Punching Hole

Shipment

1. The machine will be shipped in container

2. We will ship the products within one month normally after receiving the payment.

3. Stock is available for standard product.

Payment

1. We accept T/T and L/C.

2. Please send swift copy of T/T if you arrange payment by T/T

3. Please send us the L/C draft to us before issue L/C.
