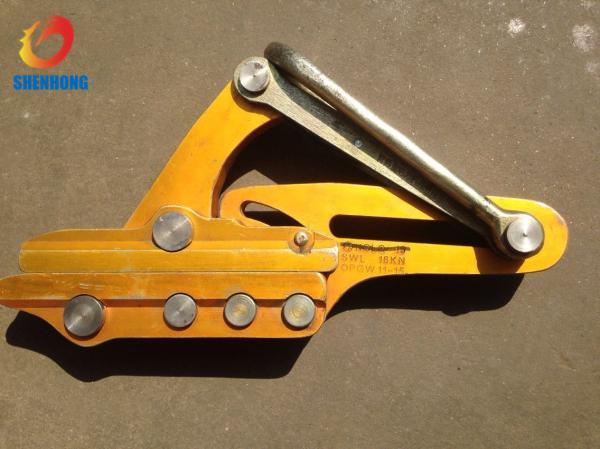

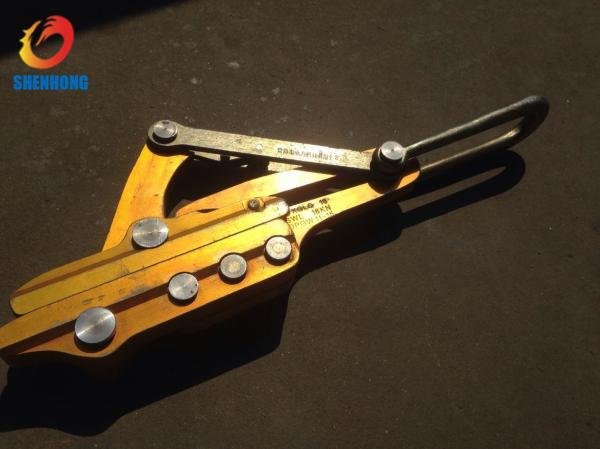

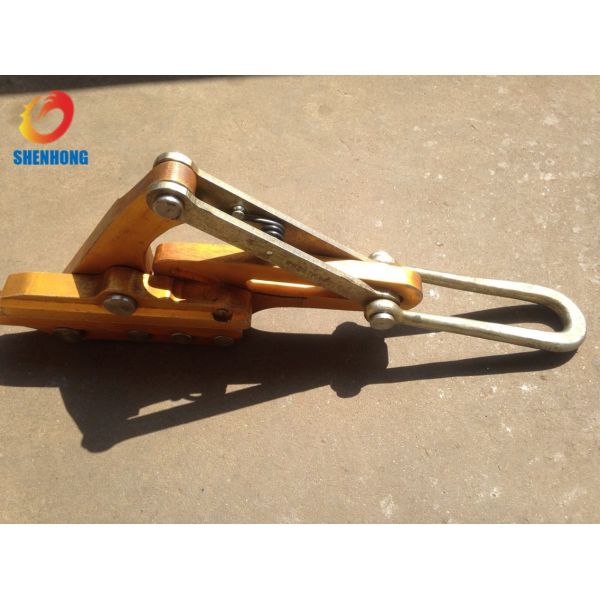

OPGW Diameter 11-15mm Aluminum Come Along Clamps 16KN Wire Grips
OPGW Diameter 11-15mm Aluminum Come Along Clamps 16KN Wire Grips
OPGW Diameter 11-15mm Aluminum Come Along Clamps 16KN Wire Grips
OPGW Diameter 11-15mm Aluminum Come Along Clamps 16KN Wire Grips
Specifications
Brand Name :
Shenhong
Model Number :
LOPG
Certification :
ISO
Place of Origin :
Jiangsu,China
MOQ :
5 piece
Price :
US $30-100 / Piece
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000 Piece/Pieces per Month
Delivery Time :
7 work days after deposit
Packaging Details :
Carton
Type :
Aluminum Come Along Clamps
Material :
Aluminum
Rated load :
12-25KN
Applicable Range :
8-17mm
Weight :
3.8-5.6kg
Description

OPGW Diameter 11-15mm Aluminum Come Along Clamps 16KN Wire Grips

Characteristic

It is used for holding the OPGW overhead optical ground wire.

The diameter of optical cable is same as the size of clamp,in order to ensure clamping firmly, reduce the pressure of clamped parts and protect the inside fiber of cable from damaging.

The body is forged from high strength aluminum-titanium alloy , and use the bolt to fasten to prevent the line slipping and hurting.

You need to indicate the outer diameter of optical cable and the model number of optical cable when you place the order.

Customer in Heart, Quality in Hand, Technology in the Lead.

Technical Data

Model No. Cable Diameter(mm) Rated Load(KN) Weight(kg)
LOPG-1 Φ8-20 25 3.8
LOPG-2 Φ11-15 16 5.6
LOPG-3 Φ15-17 16 5.6


OPGW Diameter 11-15mm Aluminum Come Along Clamps 16KN Wire Grips
