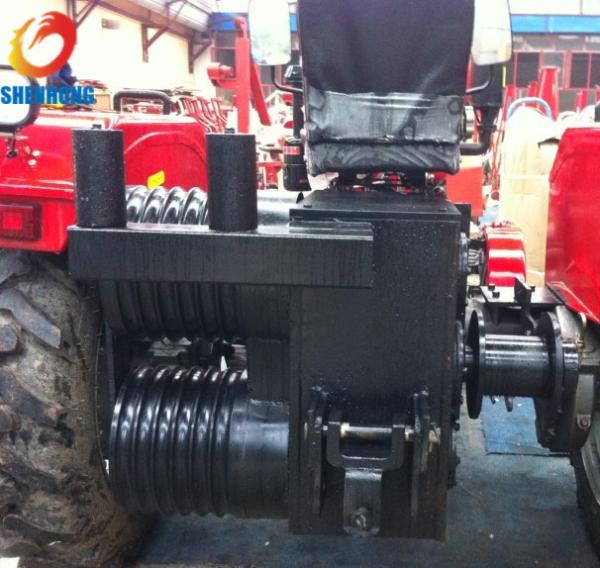

Model 280 Tractor Diesel Cable Winch for retractable traverse pulling hoisting
Model 280 Tractor Diesel Cable Winch for retractable traverse pulling hoisting
Model 280 Tractor Diesel Cable Winch for retractable traverse pulling hoisting
Model 280 Tractor Diesel Cable Winch for retractable traverse pulling hoisting
Specifications
Brand Name :
Shenhong
Model Number :
280
Certification :
ISO
Place of Origin :
Jiangsu, China (Mainland)
MOQ :
1 set
Price :
US $1600-4000 / Set
Supply Ability :
500 Set/Sets per Month
Delivery Time :
15 days after the deposit
Packaging Details :
standard export wooden case
Power Source :
Diesel engine
Application :
power construction
Usage :
hositing;pulling;lifting
Capacity(KN) :
40
weight(kg) :
1280
Power(KW/rpm) :
20.6/2200
Dimensions(mm) :
2260*1360*1310
Warranty :
1 year
Bullwheel bottom of groove diameter(mm) :
320
Groove number :
6
Description

Model 280 Tractor Puller For Pulling in Power Construction

Characteristic:

1, maintain the original driving function. (separate grinding and running separately)
2. The grinding mill is driven by the power output shaft to drive the grinding cylinder.
3. The machine is compact in structure, flexible in operation, flexible in performance and reliable in braking.

Main uses:
1, the power line construction in the retractable wire.
2, the traction of the whole tower erection, also lifting heavy objects.
3, rear can hang trailer transport tools.

Essential technical parameters

Power(KW/rpm):20.6/2200

Bullwheel bottom of grove diameter(mm):Φ320

Groove number:6

Maximum suitable rope diameter(mm):Φ14

Maximum running speed(m/min):59

Dimensions(mm):2660×1360×1310

Weight(kg):1280

Gear Location Ⅰ Ⅱ Ⅲ Reverse
Line Pull(KN) 40 30 20
Speed(m/min) 715 1275 2270 650

Model 280 Tractor Diesel Cable Winch for retractable traverse pulling hoisting

Please tell us the following information in your enquiry:

1. Engine Power ?

2. Pulling Speed(m/min) ?

3. Pulling capacity?

4. Quantity?

we'll give you a good price after confirming the above info.

Welcome to contact us by phone or e-mail, if you are interesting in our products.
