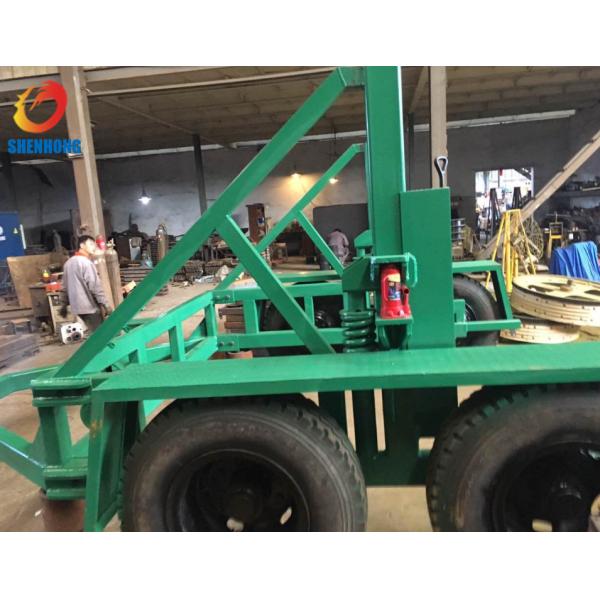

Cable Transportation Tools 8 Ton Cable Carriage Vehicle Cable Drum Trailer / Reel Trailer
Cable Transportation Tools 8 Ton Cable Carriage Vehicle Cable Drum Trailer / Reel Trailer
Specifications
Brand Name :
Shenhong
Model Number :
LZ
Certification :
ISO
Place of Origin :
Jiangsu,China
MOQ :
1 Set
Price :
US $ 500~3000 / Set
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000 pieces per month
Delivery Time :
10 work days after deposit
Packaging Details :
Export case
Type :
Cable trailer
Capacity :
8T
Application :
Cable Transportation
Size :
4400*3010*2300mm
Max Coil Diameter(mm) :
3200
Inner Width(mm) :
1750
Outer Width(mm) :
3200
Height(mm) :
2700
Length(mm) :
4300
Description

Capacity 8 Ton Cable Carriage Vehicle Cable Drum Trailer Reel Trailer

Application

used for cable drum hauling and cable pulling-pushing.

Adopt mechanical lifting method, simple operation, stable and durable.

The traction tire on the font of cable trailer can change angle at random and easy to move.

Equipped with damping device, the stability of trailer was increased greatly.

Remarks: the trailer can be transported by container after disassembly.

Technical Data

Model Max load Weight Max coil diameter Wide Length Wide High
(T) (kg) mm mm mm mm mm
LZ-3T 3T 900 2300 1250 3800 2300 2200
LZ-5T 5T 1500 2800 1450 4000 2600 2500
LZ-8T 8T 2300 3300 1750 4300 3200 2700
LZ-10T 10T 2800 3500 1850 4300 3400 2800

Please contact us is you have any requirement,and we can make products with special specification as your requirements.
