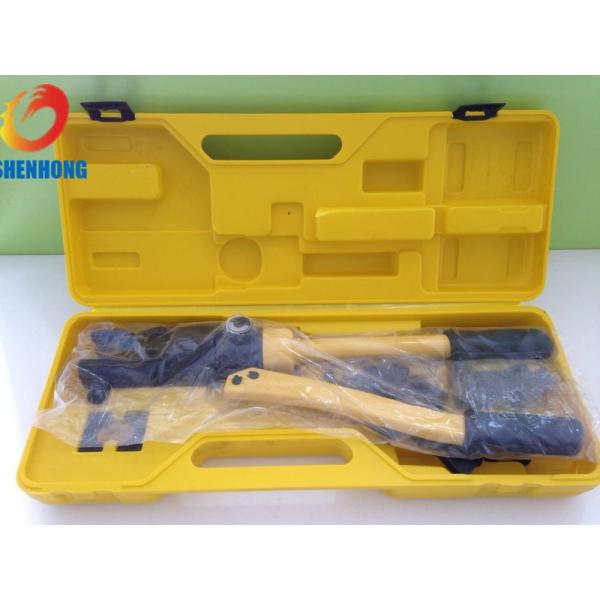

YQK-240 Overhead Line Construction Tools , Cable Lug Crimping Tool Crimping Plier Crimping Up to 240mm2
YQK-240 Overhead Line Construction Tools , Cable Lug Crimping Tool Crimping Plier Crimping Up to 240mm2
YQK-240 Overhead Line Construction Tools , Cable Lug Crimping Tool Crimping Plier Crimping Up to 240mm2
YQK-240 Overhead Line Construction Tools , Cable Lug Crimping Tool Crimping Plier Crimping Up to 240mm2
Specifications
Brand Name :
Shenhong
Model Number :
YQK-240
Certification :
ISO
Place of Origin :
Jiangsu,China
MOQ :
1 piece
Price :
US $30-200 / Piece
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000 Piece/Pieces per Month
Delivery Time :
7 work days after deposit
Packaging Details :
Plastic case
Type :
Hydraulic crimping tools
Weight(kg) :
6.3
Warranty :
1 year
Output(KN) :
240
Working Stroke(mm) :
22
Crimping Range(mm2) :
16-240
Description

YQK-240 Hydraulic Cable Lug Crimping Tools Crimping Plier Crimping Up to 240mm2

Specifications
1.Compression mould can be replaced, quick and safe operation;
2.Compression configuration: 10,16, 25, 35, 50, 70,150,185,240,300mm2
3.Press tools is suitable for DIN.AWG.JIS.
4.There is a safe protective equipment of "Kacha" voice when it reaches to high or low voltage.
5.It can be operated by one person ,it saves time and labor.
6.Pump is connected to the tools, it can turn 180 degree when pressed on the head.

Features:
Hydraulic Crimping Tool is a processional tool for crimping copper and aluminum lugs with different types, a wide range of crimping dies from 4 mm2 to 1000 mm2 to suit for different size demand. The main crimping shape is hexagonal, special shape design is provided by special making..

Description

YQK-240
Output(T) 12
Ram Stroke(mm) 22
Crimping Range(mm2) Cu 16-240
Standard Mould(mm2) 16,25,35,50,70,95,120,150,185,240
Length(mm) 500
Weight(kg) 6.3l

Packing
one pc in one plastic box ,fore plastic box in one paper box.

Item NO. Crimping range Max pressure Max travel Mould Crimping type
YQK-70 4-70 mm2 6T 10mm 4, 6, 8, 10, 16, 25, 35, 50, 70 mm2 Besiege pressure
YQK-120 10-120 mm2 8T 12mm 10. 16, 25, 35, 50, 70, 95, 120 mm2 Besiege pressure
YQK-120C 10-120 mm2 8T 14mm 10. 16, 25, 35, 50, 70, 95, 120 mm2 Besiege pressure
YQK-240 16-240 mm2 10T 18mm 16, 25, 35, 50, 70, 95, 120, 150, 185, 240 mm2 Besiege pressure
YQK-300 16-300 mm2 10T 18mm 16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300 mm2 Besiege pressure
YQ-400C 16-400 mm2 12T 22mm 16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300, 400 mm2 Besiege pressure
