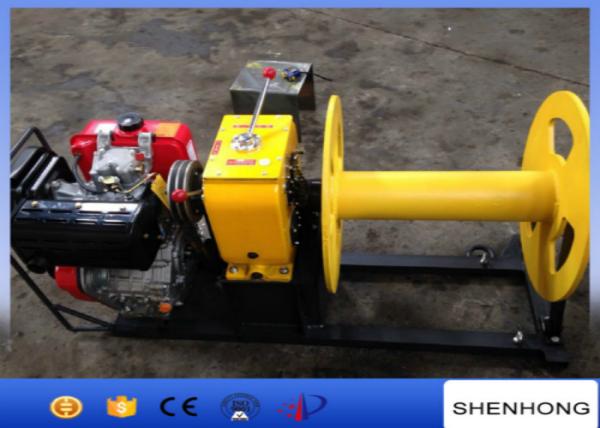

188 F Diesel Cable Winch Air-Cooled Wire Rope Hoist Cable Pulling Winch
188 F Diesel Cable Winch Air-Cooled Wire Rope Hoist Cable Pulling Winch
188 F Diesel Cable Winch Air-Cooled Wire Rope Hoist Cable Pulling Winch
188 F Diesel Cable Winch Air-Cooled Wire Rope Hoist Cable Pulling Winch
Specifications
Brand Name :
shenhong
Model Number :
JJM3C
Certification :
BV,ISO
Place of Origin :
Jiangsu,China(mainland)
MOQ :
1 set
Price :
negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
500 Set/Sets per Month
Delivery Time :
ten days after the deposit
Packaging Details :
plywood case
Application :
line construction
Capacity :
30KN
Material :
steel
Weight :
150kg
Dimension :
1000*680*550mm
Rated power :
4HP
Package :
plywood case
Warranty :
one year
Description

188 F Diesel Cable Winch Air-Cooled Wire Rope Hoist Cable Pulling Winch

Application

It is used for tower erection,pole setting,stringing wire in electrical power line construction.The engine of this product is 188F Air-cooled diesel enging.It doesn't need water, is just cooled by air.

Diesel Engine 188F Air-Cooled

1. Type:Single-cylinder, vertical, air-cooled, four-stroke diesel engine
2. Bore X Stroke (mm):88x75
3. Displacement (ml):456
4. Engine speed (rpm):3000/3600
5. Compression ratio:19: 1
6. Rated power (kW):7 / 3000,8 / 3600
7. Rotation direction (face flywheel view):Clockwise
8. Fuel (recommended):No. 0 or No. -10 diesel
9. Fuel tank capacity (L):5.5
10. Fuel consumption (g / kW.h):3000: 273,3600: 279
11. Oil Capacity (L):1.65
12. Starting method:electric start
13. Dimensions (length X width X height) (mm):500x475x555
14. Weight (kg):54

Features

1.small volumn

2.light weight

3.flexible and easy to operate

Tenchnical data of 188F Air-cooled diesel engine belt driven wire rope hoist cable pulling winch

Model Engine Gear Pulling Speed(m/min) Rated Pulling Force(Ton) Weight(Kg)
JJM3C diesel engine (Slow) 5 3 150
(Fast) 12 1.8
Reverse 4.5 No Lifting!

188 F Diesel Cable Winch Air-Cooled Wire Rope Hoist Cable Pulling Winch

Shipment

1. The machine will be shipped in container

2. We will ship the products within one month normally after receiving the payment.

3. Stock is available for standard product.

Payment

1. We accept T/T and L/C.

2. Please send swift copy of T/T if you arrange payment by T/T

3. Please send us the L/C draft to us before issue L/C.
