5 Ton HONDA GX390 Gas Engine Powered Winch Double Capstan In Line Construction
5 Ton HONDA GX390 Gas Engine Powered Winch Double Capstan In Line Construction
5 Ton HONDA GX390 Gas Engine Powered Winch Double Capstan In Line Construction
5 Ton HONDA GX390 Gas Engine Powered Winch Double Capstan In Line Construction
5 Ton HONDA GX390 Gas Engine Powered Winch Double Capstan In Line Construction
5 Ton HONDA GX390 Gas Engine Powered Winch Double Capstan In Line Construction
Specifications
Brand Name :
shenhong
Model Number :
JJM5SQ
Certification :
BV,ISO
Place of Origin :
Jiangsu,China(mainland)
MOQ :
1 set
Price :
negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
500 Set/Sets per Month
Delivery Time :
ten days after the deposit
Packaging Details :
plywood case
Application :
line construction
Engine :
HONDA gas engine
Power :
13HP
Pulling force :
10-50KN
Speed :
5-30m/min
Weight :
280kg
Dimension :
1330*800*600mm
Package :
plywood case
Description

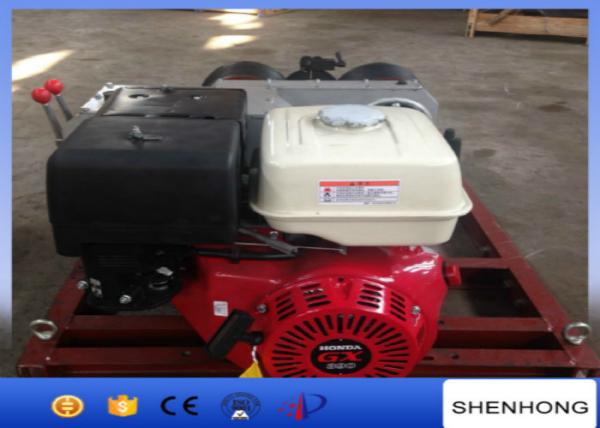

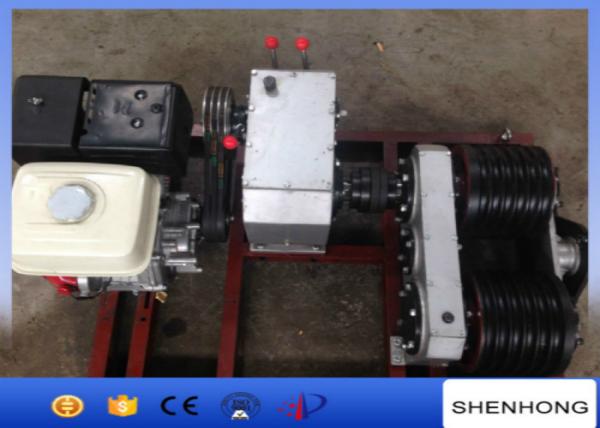

5 Ton HONDA GX390 Gas Engine Powered Winch Double Capstan In Line Construction

Application

It is used for tower erection, pole setting,stringing wire in electrical power line construction. It consists of two capstans. It has six gears and is suitable for 15mm wire rope. It is driven by belt.

Technical data of 5Ton HONDA GX390 gas engine double capstan pulling winch in line construction

Model Engine Power Suitable Wire Rope Bottom diameter of Groover No.Of Groove Gear Pull Force(KN)

Speed

(m/min)

 Weight(Kg)
JJM-5SQ

HONDA

GX390

 13HP, 3600rpm 15mm 240mm 6 Forward SlowⅠ 50 6 200
Slow Ⅱ 30 10
Fast Ⅰ 13 23
Fast Ⅱ 10 30
Reverse Slow No lifting 5
Fast No lifting 17

Operation

5 Ton HONDA GX390 Gas Engine Powered Winch Double Capstan In Line Construction5 Ton HONDA GX390 Gas Engine Powered Winch Double Capstan In Line Construction

Shipment

1. The machine will be shipped in container

2. We will ship the products within one month normally after receiving the payment.

3. Stock is available for standard product.

Payment

1. We accept T/T and L/C.

2. Please send swift copy of T/T if you arrange payment by T/T

3. Please send us the L/C draft to us before issue L/C.
