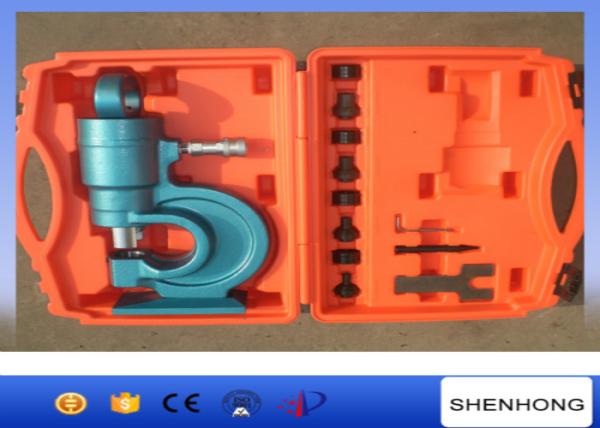

Portable Hydraulic Hole Punch Hydraulic Busbar Puncher 31T - 50T Output
Portable Hydraulic Hole Punch Hydraulic Busbar Puncher 31T - 50T Output
Portable Hydraulic Hole Punch Hydraulic Busbar Puncher 31T - 50T Output
Portable Hydraulic Hole Punch Hydraulic Busbar Puncher 31T - 50T Output
Specifications
Brand Name :
shenhong
Model Number :
CH
Certification :
CE,BV,ISO
Place of Origin :
Jiangsu,China
MOQ :
1 set
Price :
negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
500 Set/Sets per Month
Delivery Time :
ten days after deposit
Packaging Details :
wooden case
Type :
hydraulic puncher
Throat depth :
95-115mm
Output :
31-50T
Weight :
19-50kg
Thickness iron :
6-16mm
Thickness copper :
10-20mm
Description

Portable Hydraulic Hole Punch Hydraulic Busbar Puncher 31T - 50T Output

Application

It is a remote control tool, works with an extremal hydraulic pump(Hand Foot or Electric pump). It is desighed to punch round holes on Cu/Al Busbar. With 4 pairs standard punching dies(10.5/ 13.8/ 17/ 20.5 mm), punching hole size is between diameter 10.5mm and diameter 20.5mm. Busbar thickness should below or equivalent to 12mm. With hydraulic power, 4 pairs sharp punching dies, easy fast and clean punching can be achieved.

Technical data of Punching tool hydraulic hole puncher, hydraulic busbar puncher 31-50T output

Model Output Thickness iron Thickness copper Throat depth Weight Model(mm) Size(mm)
CH-60 31T 6mm 10mm 95mm 19kg 10.5,13.8,17.5,20.5 350*245*110
CH-70 35T 10 12 110 38 10.5,13.8,17.5,20.5 370*240*150
CH-80 50T 16 20 115 50 16,18,22,25 400*260*160

Portable Hydraulic Hole Punch Hydraulic Busbar Puncher 31T - 50T Output

Shipment

1. The machine will be shipped in container

2. We will ship the products within one month normally after receiving the payment.

3. Stock is available for standard product.

Payment

1. We accept T/T and L/C.

2. Please send swift copy of T/T if you arrange payment by T/T

3. Please send us the L/C draft to us before issue L/C.
