Aluminum Alloy Electrical Gin Pole for Tower Eretion Concrete Electric Pole
Aluminum Alloy Electrical Gin Pole for Tower Eretion Concrete Electric Pole
Aluminum Alloy Electrical Gin Pole for Tower Eretion Concrete Electric Pole
Aluminum Alloy Electrical Gin Pole for Tower Eretion Concrete Electric Pole
Specifications
Brand Name :
SHENGHONG
Model Number :
LBNX
Certification :
ISO
Place of Origin :
MADE IN CHINA
MOQ :
1 set
Price :
depend
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100 sets per month
Delivery Time :
15-20 days after deposite
Packaging Details :
Plastic sheet
Surface treatment :
galvanized
Load Capacity :
42KN
Material :
Aluminum Alloy
Type :
Aluminum Alloy Electrical Gin Pole
Application :
Erect Tower
Cross Section :
500x500mm
Description

Aluminum Alloy Electrical Gin Pole for Tower Eretion Concrete Electric Pole

Use and Characteristics

During used for transmission and distribution line engineering, sling tower material, positioning pulley set use.

Adopt single-arm style, free from direction restriction, use convenience.

The main material adopts right angle aluminum titanium alloy section, rivet joint makes, portable and durable.

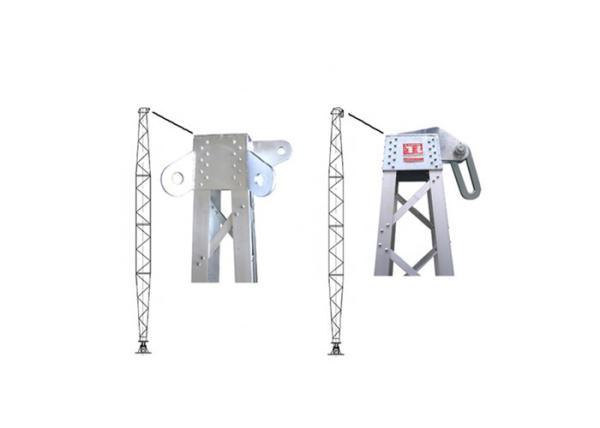

Aluminum alloy gin poles is used for erection of transmission line tower in the way of piece by piece. It is light and high strength. There are different designes in the head and base of gin poles.

Aluminum alloy inner-suspension type gin pole (Lattice)

Technical Data

Item number Model

Range

(M)

 Section(MM)

Main part

size

(MM)

Accessory

size

(MM)

Vertical

Load

(KN)

Safety

Factor

(K)

Weight

(KG/M)
25*25*3 13-38 2.5 10.5
03141 LBNX-300B 11-18 300*300 50*50*5 30*30*3 15-40 2.5 11.0
03151 LBNX-400 12-20 400*400 50*50*5 30*30*3 14-43 2.5 14.6
03511 LBNX-500A 12-20 500*500 60*60*5 30*30*3 34-75 2.5 18
03515 LBNX-500B 14-22 500*500 60*60*5 40*40*3 2.5 20
03521 LBNX-500C 15-23 500*500 70*70*6 40*40*3 42.88 2.5 21
03525 LBNX-500D 17-25 500*500 70*70*6 50*50*4 2.5 22
03531 LBNX-600A 15-23 600*600 60*60*6 40*40*3 38.75 2.5 20
03535 LBNX-600B 17-25 600*600 70*70*6 40*40*3 2.5 21
03541 LBNX-600C 17-25 600*600 70*70*6 50*50*4 58.119 2.5 22
03545 LBNX-600D 17-25 600*600 75*75*6 50*50*4 2.5 24
03601 BNX-300 10-15 300*300 50*50*5 30*30*3 17-35 2.5 33
03602 BNX-400 12-16 400*400 50*50*5 30*30*3 29-51 2.5 43
03603 BNX-500 16-24 500*500 63*63*6 30*30*3 41-93 2.5 54
03604 BNX-600 16-32 600*600 70*70*6 40*40*4 72-221 2.5 63
03605 BNX-700 20-32 700*700 80*80*6 40*40*4 115-294 2.5 75
Application: Used to assemble and erect tower in power transmission line construction.
Note: Safety factor 1.5
Aluminum Alloy Electrical Gin Pole for Tower Eretion Concrete Electric Pole
Aluminum Alloy Electrical Gin Pole for Tower Eretion Concrete Electric Pole
