Electric Wiring Set Personal Safety Grounding Equipment Security Earth Wire
Electric Wiring Set Personal Safety Grounding Equipment Security Earth Wire
Electric Wiring Set Personal Safety Grounding Equipment Security Earth Wire
Electric Wiring Set Personal Safety Grounding Equipment Security Earth Wire
Specifications
Brand Name :
SHENGHONG
Model Number :
TYJD-35
Certification :
ISO
Place of Origin :
MADE IN CHINA
MOQ :
1set
Price :
negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
500set/day
Delivery Time :
7-10 days after payment
Packaging Details :
carton
Product Name :
Earth Stick With Ground Wire
Length :
1.5M
Recommended copper wire(mm^2) :
25
Material :
Light Epoxy Resin
Rated Voltage :
10KV 35KV 100KV 200KV 400KV
Feature :
Personal Safety
Description

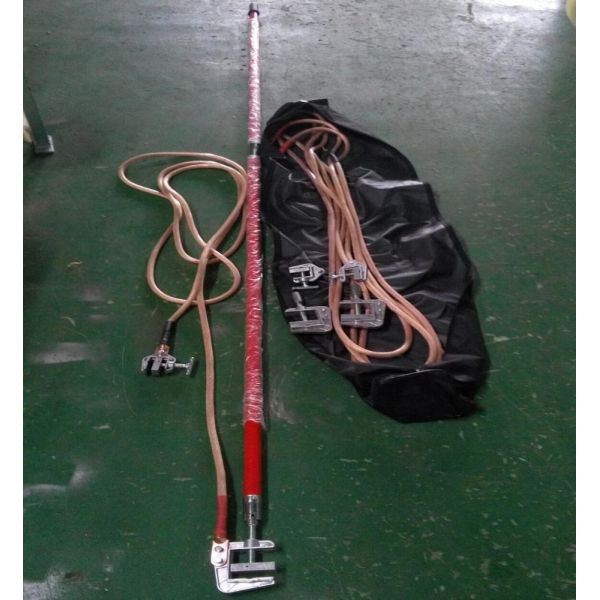

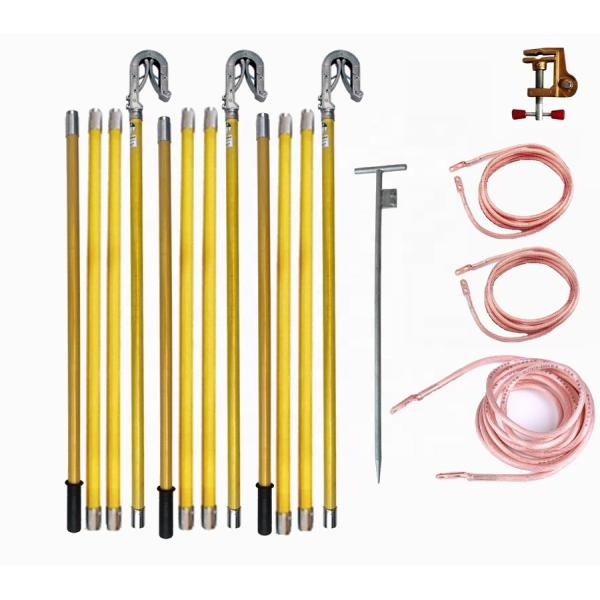

Transmission Line Electrical Grounding Electric Wiring Set Personal Safety Grounding Equipment Security Earth Wire

Personal Safety Grounding Equipment Security Earth Wire

It is suitable for transmission lines,power plants and substation equipment,short circuit grounding for power outage maintenance.

Feature

1.Wire clamper with aluminum alloy casting,high strength,good conductivity.

2.The portable short-circuit grounding wire is packed in canvas bag with exported wooden boxes,which is easy to carry and transport

Grounding Wire Configuration Table:

Voltage class Ground soft copper wire

Length of Ground Operation Rod

(mm)

(mm2) (m)
Insulating Handheld Total length
10KV 25 1*3+7~1.5*3+20 700 300 1000
35KV 25 1.5*3+18 900 600 1500
68KV 25 1.5*3+20 1000 600 1600
110KV 25,35 9*3 1300 700 2000
2*3+20
220KV 25,35 9*3 2100 900 3000
3*3+25
330KV 35,50 12*3 4*3+25 3000 1100 4100
500KV 35,50 13*3~20*3 4100 1400 5500
220-500KV Overhead ground wire 25 1*3+7~1.5*3+20 700 300 1000
High pressure test equipment 35,50 5*3~10*3 700 300 1000

The rated value of the copper wire per meter:

Sectional area(mm) 10 16 25 35 50 70 95 120
Wire diameter(mm) 4.2 5.7 7.5 8.78 11 12 16 17
Sheath diameter(MΩ) 7.3 7.8 9.6 11.2 12.6 16.5 21 22
Resistance value(A) 1.98 1.24 0.79 0.56 0.4 0.28 0.21 0.16
Safety current 90 100 123 150 210 238 300 300

Electric Wiring Set Personal Safety Grounding Equipment Security Earth Wire

Electric Wiring Set Personal Safety Grounding Equipment Security Earth Wire
