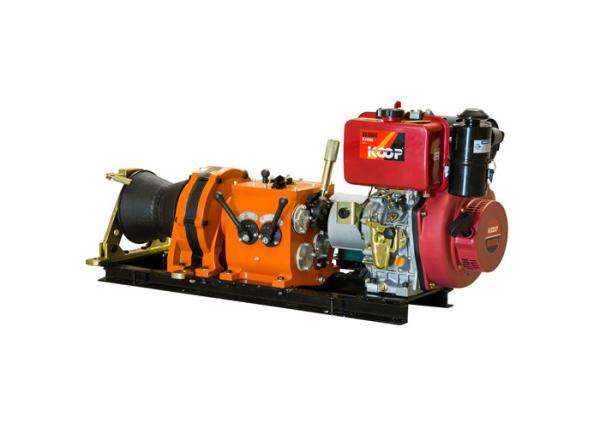

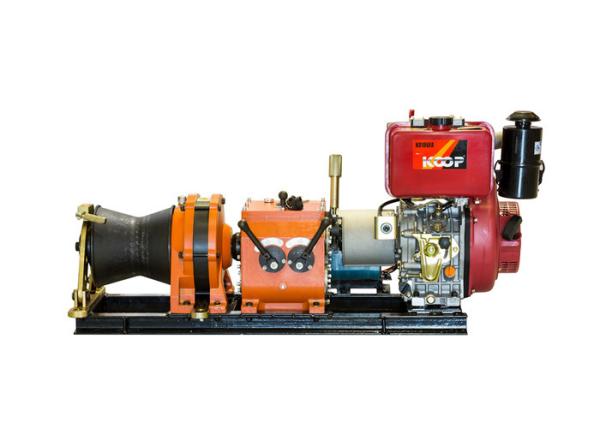

5 Ton Diesel Power Capstan Winch Electric Start 11hp 11000 Lbs Red Color
5 Ton Diesel Power Capstan Winch Electric Start 11hp 11000 Lbs Red Color
5 Ton Diesel Power Capstan Winch Electric Start 11hp 11000 Lbs Red Color
5 Ton Diesel Power Capstan Winch Electric Start 11hp 11000 Lbs Red Color
Specifications
Brand Name :
Shenhong
Model Number :
JJM5C-B
Certification :
ISO
Place of Origin :
Jiangsu,China(mainland)
MOQ :
1 set
Price :
Negotiatable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
500 Set/Sets per Month
Delivery Time :
7 days after the deposit
Packaging Details :
standard export wooden case
Power source :
Diesel Engine
Application :
Power construction
1st Layer Load Capacity :
5000kg
Speed(m/min) :
4-24
Weight(kg) :
195
Motor/Engine Power :
6.7 kW / 9 HP
Description

5 Ton Diesel Power Capstan Winch Electric Start 11HP 11,000 Lbs

Application

It is used for tower erection,pole setting,stringing wire in electrical power line construction.

Diesel Winch can be modified as per requirement, such as changing curve capstan into straight even cylindrical shape and coming with steel rope.

Features

1) Speedy and Efficient

2) Safe and Reliable

3) Compact structure

4) Light Weight

5) Small Volume

6) Widely Used

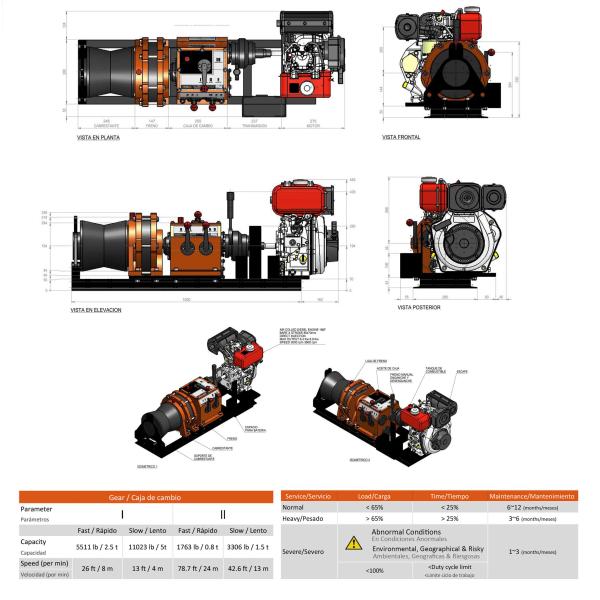

Technical Data

Model JJM5B
Engine HODNA GX390/186F Diesel Engine/YAMAHA MX360
Power 13HP,3600rpm/6.3KW,3600rpm/12HP,3600rpm
Gear Forward
Slow I Slow II Fast I Fast II
Pull Force(KN) 50 25 15 8
Speed(m/min) 4 8 13 24
Weight(KG) 200
Dimension(mm) 1200×600×750

Weight & Dimensions

  • Total Weight430 lbs / 195 Kg

Packaging Details

  • NW1 Net Weight430 lbs / 195 Kg

  • GW1 Gross Weight437 lbs / 198 Kg

  • PH1 Packaging Height50 in / 127 cm

  • PW1 Packaging Width21 in / 52.5 cm

  • PD1 Packaging Depth28 in / 69 cm
