5 6 8 10 12T Steel Frame Hydraulic Cable Drum Lifting Jack
5 6 8 10 12T Steel Frame Hydraulic Cable Drum Lifting Jack
5 6 8 10 12T Steel Frame Hydraulic Cable Drum Lifting Jack
5 6 8 10 12T Steel Frame Hydraulic Cable Drum Lifting Jack
Specifications
Brand Name :
SHENGHONG
Model Number :
DL013
Certification :
ISO
Place of Origin :
MADE IN CHINA
MOQ :
1 pair
Price :
negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100pairs per month
Delivery Time :
15 days after deposit
Packaging Details :
export standard package
Product Name :
Hydraulic Cable Drum Lifting Jack/Cable Reel Stand
Material :
steel tube
surface treatment :
Steel Frame Spray Painting
Capacity :
5t, 6t, 8t, 10t,12t
Power :
Hand hydraulic
Warranty :
1 year
Description

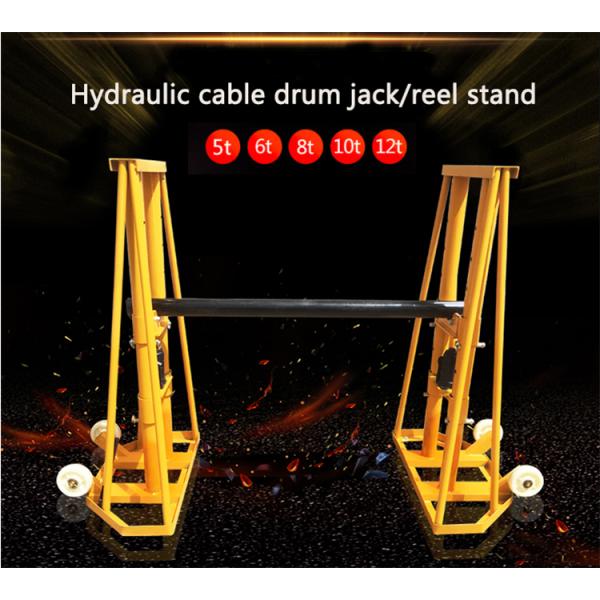

5-12ton Hydraulic Cable Drum Lifting Jack/Cable Reel Stand

Description:

Cable reel stand is a compact solution for spooling heavy drums of power and data cable or conveyor belts. The system comprises of two independent cable stands complete with hydraulic bottle jacks and a high tensile spindle secured in the V block.With trapezoidal structure, it can be applied in different kinds of reel specification. Hydraulic lifting make it lift easily, trundles installed on the bottom make it easy to move, simple operation, secure and durable.

Application:

Cable Drum Rack applied in the supporting of cable drum. With trapezoidal structure, it can be applied in different kinds of reel specification. Hydraulic lifting make it lift easily, trundles installed on the bottom make it easy to move, simple operation, secure and durable.

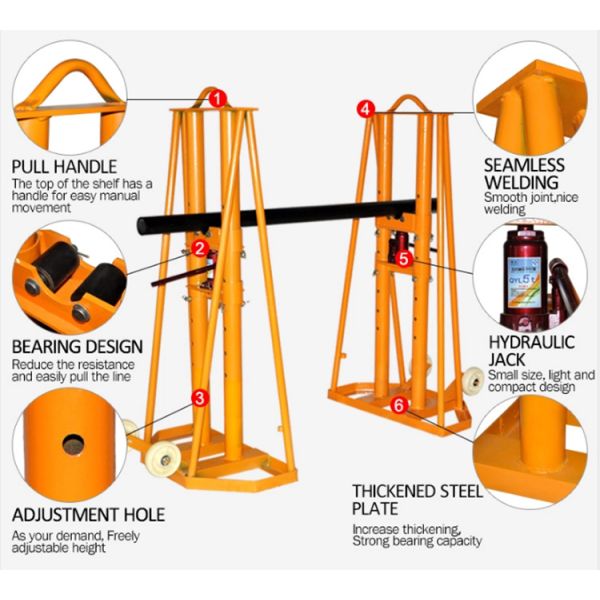

Features:

1. Cable drum jack is applied in the supporting of cable drum or reel. With hydraulic structure or ratchet brake, it can be applied in different kinds of reel specification.

2. Hydraulic lifting make it lift easily, trundles installed on the bottom make it easy to move, simple operation, secure and durable.

3. Hydraulic cable drum stand can be designed with load capacity of 5 tons, 8 tons, 10 tons, 15 tons and 20 tons, mainly made of steel tube, powered by hydraulic. It is with big lifting force, suitable for the large-tonnage cable drum. It can also be customized.

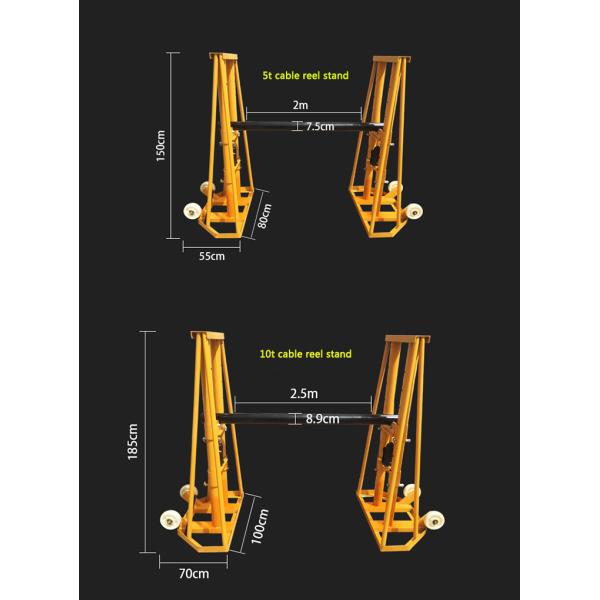

Data Sheet

Load tonnage (T) Height (cm) Bar parameters (LengthxDiameterxThickness) Applicable coil diameter(m) Jack loading weight(T) Weight(kg)
5 150 2mx7.5cmx6mm ≤2.5 5 135
6 150 2mx7.5cmx6mm ≤2.5 6 135
8 150 2mx7.5cmx6mm ≤2.5 8 135
10 185 2.5mx8.9cmx8mm ≤3.2 10 165
12 185 2.5mx8.9cmx8mm ≤3.2 16 165

5 6 8 10 12T Steel Frame Hydraulic Cable Drum Lifting Jack

5 6 8 10 12T Steel Frame Hydraulic Cable Drum Lifting Jack

5 6 8 10 12T Steel Frame Hydraulic Cable Drum Lifting Jack
