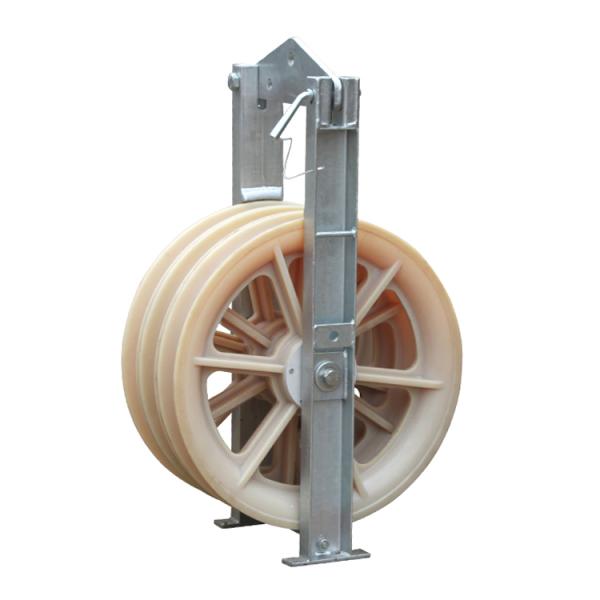

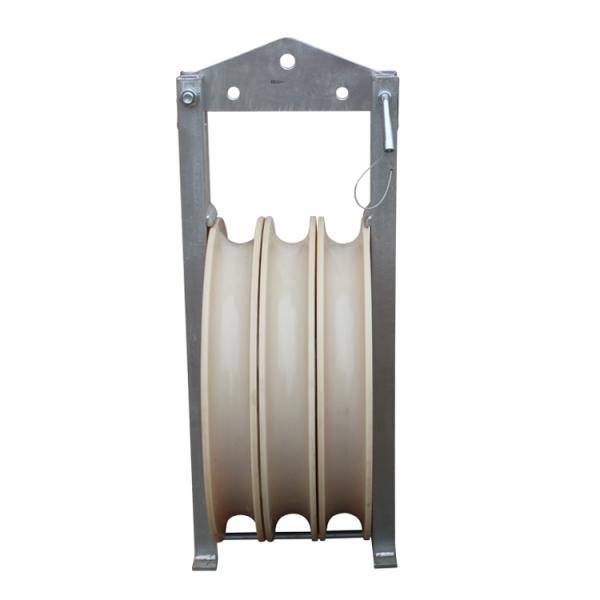

40KN Three Wheel Overhead Line Stringing Rope Pulley Block
40KN Three Wheel Overhead Line Stringing Rope Pulley Block
40KN Three Wheel Overhead Line Stringing Rope Pulley Block
40KN Three Wheel Overhead Line Stringing Rope Pulley Block
Specifications
Brand Name :
SHENHONG
Model Number :
Model 508 / 660 / 822
Certification :
ISO
Place of Origin :
Jiangsu, China
MOQ :
10pcs
Price :
negotiation
Supply Ability :
1000pcs per month
Delivery Time :
7 days after payment
Packaging Details :
carton
Application :
Electric power construction
No. of sheave :
3
Surface treatment :
Galvanized
Warranty :
1 year
rated load :
40kN to 150kN
Item :
Stringing block
Description

Overhead Line Stringing Equipment 40kn Three-Wheel Stringing Pulley Blocks

Introduction:

Stringing pulley block is a special equipment for supporting various conductors and ground wires in overhead transmission line stringing construction, which plays a supporting role for ground wires. It does not damage wires and has small friction coefficient. It can pass through traction plates, connectors and pressure nozzles smoothly.

Application:

Suitable for laying-out construction of overhead transmission lines with double split conductors.

Description:

1. We manufacture a lot of models for different uses in the overhead transmission line construction.

2. The stringing pulleys are used to support conductors, OPGW, ADSS, communication lines, etc.

3. The sheave of the pulley blocks are made from high strength MC nylon, or aluminum materials, and the frame of blocks are made of galvanized steel. The lateral ones are mounted on ball bearings.

4. Cast steel wheel or MC nylon wheel can be selected for intermediate wheel according to customer's requirement; Rubber pressing aluminium wheel, rubber pressing MC nylon wheel or MC nylon wheel can be selected for conductor wheel.

Remarks:

All kinds of pulley blocks can be manufactured according to the customers's requirements.

Overhead Line Stringing Equipment Three-wheel Conductor Wire Stringing Pulley Block

Model Number of wheels Rated load Diameter of bottom groove(mm) Applicable conductor(mm²) Weight(kg) Material
DNH3-508×100 3 40kN 408 ≤LGJ-400 43 MC nylon
DNH3-660×100 3 40kN 560 ≤LGJ-400 77 MC nylon
DNH3-822×110 3 50kN 710 ≤LGJ-630 145 MC nylon
DNH3-916×110 3 80kN 800 ≤LGJ-720 127 MC nylon
DNH3-1040×110 3 150kN 900 ≤LGJ-1000 185 MC nylon
DNH3-1160×150 3 120kN 1000 ≤LGJ-1250 235 MC nylon

40KN Three Wheel Overhead Line Stringing Rope Pulley Block

40KN Three Wheel Overhead Line Stringing Rope Pulley Block
