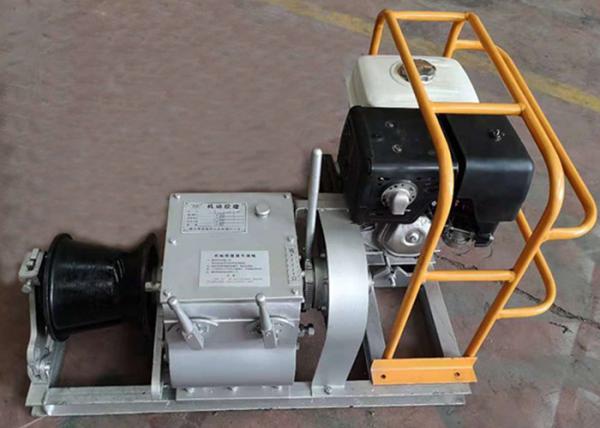

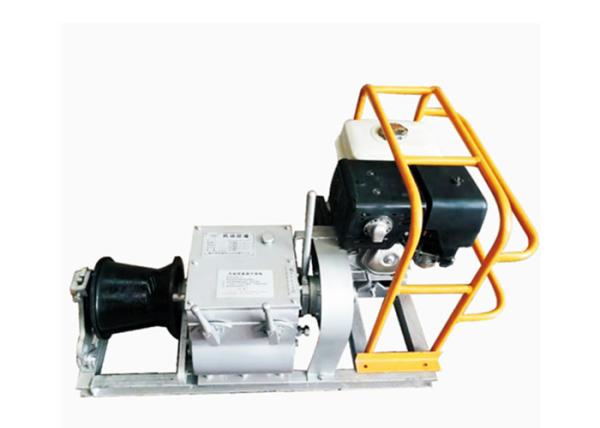

Single Drum Capstan Cable Puller Winch 50KN For Underground Cable Laying
Single Drum Capstan Cable Puller Winch 50KN For Underground Cable Laying
Single Drum Capstan Cable Puller Winch 50KN For Underground Cable Laying
Single Drum Capstan Cable Puller Winch 50KN For Underground Cable Laying
Specifications
Brand Name :
SHENHONG
Model Number :
ZJ-QXM-50/10
Certification :
ISO
Place of Origin :
Jiangsu, China
MOQ :
1 sets
Price :
USD1200-USD1500/set
Payment Terms :
Western Union, L/C, T/T
Supply Ability :
500 set/sets per month
Delivery Time :
7 days after payment
Packaging Details :
standard export wooden case
Dimension :
1100×800×600mm
Weight :
185kg
Power source :
HONDA(GX390)
Drum groove bottom diameter :
160mm
Maximum applicable diameter of wire rope :
16mm
Warranty :
1 year
Description

50kN Cable Puller Winch Single Drum Capstan Cable Pulling Winch for Underground Cable Laying

Application:

Single drum winch is a construction tool for erecting high voltage transmission lines and laying underground cables, which can be used for lifted and tracted smoothly and conveniently under various complex conditions. It has the advantages of small volume, flexible operation and convenient handling.

Features:

1. The power and gearbox are driven by belt or shaft connection and equipped with transmission clutch; the gearbox is driven by two gear shifts.

2. There are two kinds of braking devices: automatic clamping brake and clutch rotating interlocking brake, which play a braking role in both positive and negative directions.

3. If the prime mover fails during the working process of the machine and the suspended object is suspended in the air, the hand-rocking device can be moved and the suspended object can be put back to the ground.

4. The grinding core adopts V-shape design, which effectively prevents the wire rope from running out of the grinding core when the machine is running.

5. Power source can customize diesel engine or motor according to customer's demand.

Usages:

The cable pulling winch can complete the tasks of heavy-lifting and dragging such as erecting the wire. Testified by the experiments and practical uses, they have reasonable structure, small volume, light weight, strong power, nimble operation and convenient transporting. Based on so many advantages, this powered winch is popular with the electric workers.

Data sheet

Item Product model ZJ-QXM-50/10
Performance parameters I gear Tractive force 50kN
Tractive speed 5m/min
Ⅱ gear Tractive force 25kN
Tractive speed 10m/min
Structural parameters Drum groove bottom diameter 160mm
Maximum applicable diameter of wire rope 16mm
Dimension 1100×800×600mm
Weight 185kg
Power source Model HONDA(GX390)
Speed 3600r/min

Single Drum Capstan Cable Puller Winch 50KN For Underground Cable Laying

Single Drum Capstan Cable Puller Winch 50KN For Underground Cable Laying

Single Drum Capstan Cable Puller Winch 50KN For Underground Cable Laying
