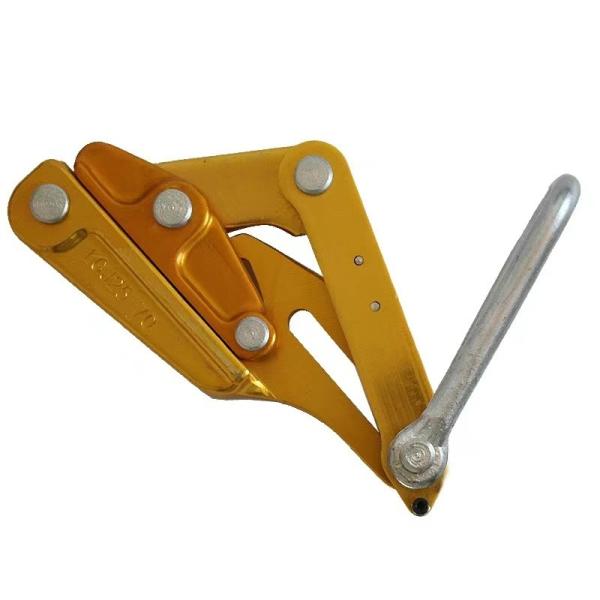

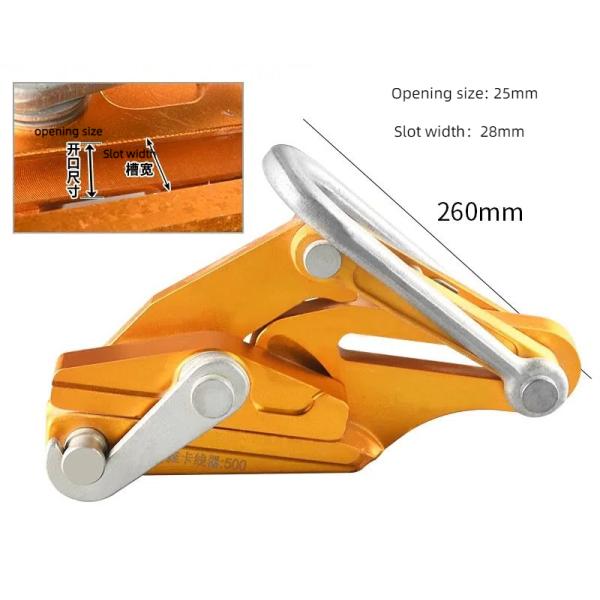

50KN Capacity Aluminum Self Gripping Clamps For Conductor 500-630sqmm
50KN Capacity Aluminum Self Gripping Clamps For Conductor 500-630sqmm
50KN Capacity Aluminum Self Gripping Clamps For Conductor 500-630sqmm
50KN Capacity Aluminum Self Gripping Clamps For Conductor 500-630sqmm
Specifications
Brand Name :
SHENHONG
Model Number :
SKL-50
Certification :
ISO
Place of Origin :
Jiangsu, China
MOQ :
1pcs
Price :
negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000pcs per month
Delivery Time :
7 days after payment
Packaging Details :
carton
Rated load(KN) :
50
Weight(kg) :
7.0
Product Name :
Aluminum Alloy Wire Grip
Application :
sag adjusting and tensioning
Material :
Aluminum Alloy
Structure :
Parallel Jaw
Description

50KN Capacity Aluminum Self Gripping Clamps For Conductor 500-630sqmm

The self-gripping clamps are an aluminum alloy automatic clamp used to anchor and string conductors and steel ropes. Additionally, these self-gripping clamps are also suited to adjust sag in the operation of erecting wire.

Features

  • Constructed of high strength aluminum alloy, featuring robust structure and light weight;
  • The simple design of the self-gripping clamp allows it to be easily placed;
  • This wire pulling grip provides sufficient clamping force without causing damage to conductors;
  • Specially designed jaws can align on conductors for non-slip gripping;

Specification
Item No.
Model No.
Rated Load
(KN)
Applicable Conductor
(ACSR-MM2)
Max Open
(MM)
Unit Weight
(KG)
0101
SKL-7
7
25~70
14
1.0
0102
SKL-15
15
95~120
18
1.4
0103
SKL-25
25
150~240
24
3.0
0104
SKL-40
40
300~400
32
4.0
0105
SKL-50
50
500~630
36
6.6
0106
SKL-40G
40
400
32
4.3
0107
SKL-50G
50
500
34
7.0
0108
SKL-50GA
50
630
36
7.3
0109
SKL-60G
60
720
38
9.2
0111
SKL-70G
70
900
42
14.0
0112
SKL-80G
80
1000
45
18.0
0113
SKL-80GA
80
1200
48
18.0
