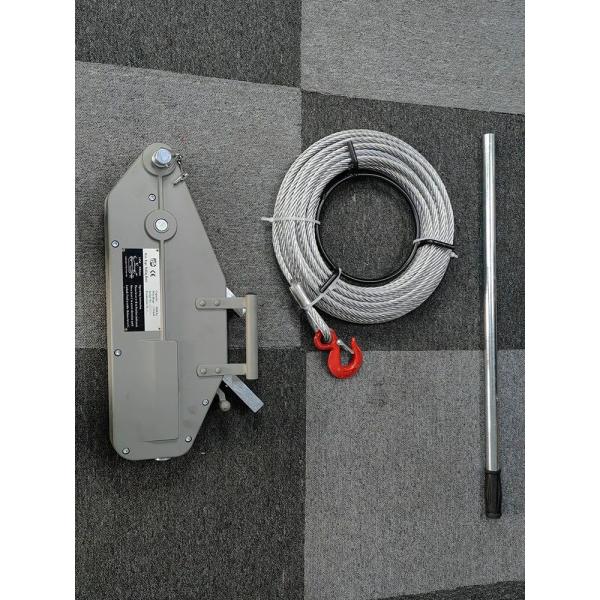

Capacity 3200kg Wire Rope 20 Meters Tirfor Winch Tirfor Cable Puller

Detail Introduction

The manual wire rope puller is a hand operated lifting and pulling device. The puller could also be used for lowering, tensioning and guying which makes it a versatile, portable and multipurpose tool.

The principle function of the wire puller is that the rope passes through mechanical jaws rather than being reeled on a drum of a puller or conventional winch.

The tension of the rope is applied by means of two pairs of self-energized jaws which apply a grip onto the wire rope in sections. The effort is transferred to the jaws by two parallel levers, one for forward operation and the other for reverse operation.

A telescopic bar, fitted to either the forward or reverse lever, transmits the effort to the jaw mechanism.

This parallel clamping system provides an evenly distributed grip at a lower force, resulting in less rope wear.

The load is held securely at all times.

Portable hoist to lift and pull loads, for utilisation in numerous configurations with long cable lengths.
1. Low weight—quick installation
2. No limitation in terms of cable length
3. Manageable, light-weight, robust, powerful
4. Increase load capacity with deflection sheaves
5. Overload protection
6. Precise load placement within millimetres

Rope clamp system

• Easily disengaged with a lever allowing smooth installation of the wire rope
• Backward lever&Forward lever
• Placed in tandem providing a slim design and assuring power transfer along the Spares hear pins
• Two spares hear pins located in the carrying HandleStamped serial number for easy identification
• High strength cast aluminium alloy body
• Lightweight, simple to operate, Smooth contour design with large, flat bottom surface for increased stability in horizontal as well vertical working position.
• Anchor bolt
• Offers numerous and versatile connection possibilities with load hooks, sling ropes and sling chains.
• Galvanized steel wire rope mounted on a reel
• Every rope is operationally tested to 150% of the rated capacity and issued with an individual test certificate.
• Adjustable handle For easy operation
