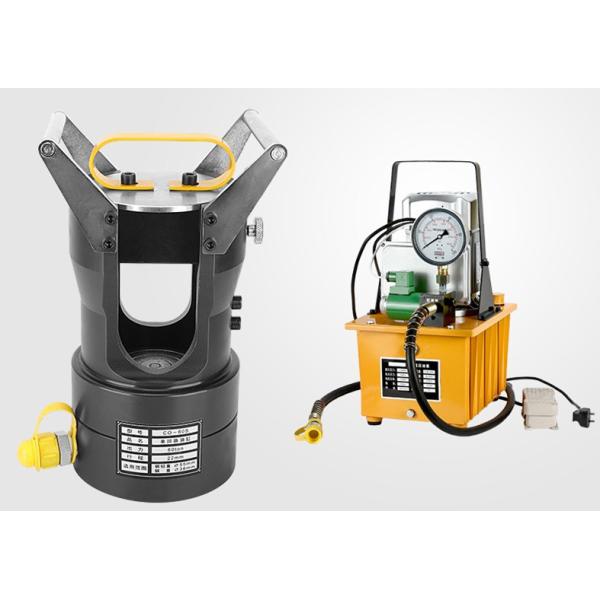

CO-60S Hydraulic Crimper Head 60T Heavy Duty Hydraulic Cable Transmission Crimping Tools
CO-60S Hydraulic Crimper Head 60T Heavy Duty Hydraulic Cable Transmission Crimping Tools
CO-60S Hydraulic Crimper Head 60T Heavy Duty Hydraulic Cable Transmission Crimping Tools
CO-60S Hydraulic Crimper Head 60T Heavy Duty Hydraulic Cable Transmission Crimping Tools
Specifications
Brand Name :
SHENHONG
Model Number :
CO-60S
Certification :
ISO
Place of Origin :
Jiangsu,China
MOQ :
1pcs
Price :
USD300-800/pc
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100pcs per month
Delivery Time :
7days after payment
Packaging Details :
standard export wooden case
Rated pressure :
70Mpa
Output :
60T
Weight :
21.5kg
Crimping range :
Φ 14-32mm(for Cu& Alu)
Size :
340mm*140mm*160mm
Usage :
crimping ASCR
Application :
power construction
Description

CO-60S Hydraulic Crimper Head 60T Heavy Duty Hydraulic Cable Transmission Crimping Tools

Application:

Connecting with ultra high pressure pump, it is used for pressing of overhead steel-cored aluminium strand and intermediate connecting pipe of steel strand and tension clamp of transmission line above 110KV.

Features:

  • 1. Using high strength alloy steel forging processing and exquisite heat treatment to ensure the strength and service life of the equipment.
  • 2. It is suitable for crimping of over 110kV overhead strain sleeve and continuous operation of underground cable.
  • 3. The maximum tube sleeve size is 76mm, the crimping surface is wide, and the number of crimping is small, which can reduce the crimping deformation and control the elongation.
  • 4. The double acting hydraulic cylinder can avoid the problem of spring fatigue and slow reset, and can shorten the reset time of piston and improve the working efficiency.
  • 5. The movable mould can assist the operator to take out the mould easily after crimping.
  • 6. The rotary die cover can be opened and closed quickly, which makes the operation and positioning easier.
  • 7. Simple design, easy maintenance.
  • 8. Equipped with quick connector, convenient for loading and unloading.
  • 9. It must be equipped with ultra-high pressure hydraulic pump. The pump is not included in the factory. It can be selected according to customers.
  • 10. The factory does not include mold, specific mold specifications and models, need to be matched according to customer needs.

Data Sheet

60T Heavy Duty Hydraulic cable transmission Crimping Tools CO-60S
Output 60T
Weight 21.5kg
Crimping range Φ 14-32mm(for Cu& Alu)
Crimping dies supply Φ 32mm 2 (for Cu& Alu)
Size 340mm*140mm*160mm

CO-60S Hydraulic Crimper Head 60T Heavy Duty Hydraulic Cable Transmission Crimping Tools

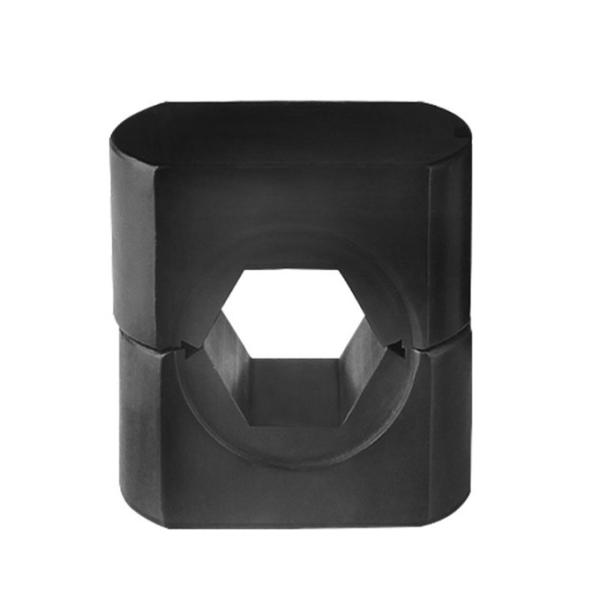

Mold comparison table
