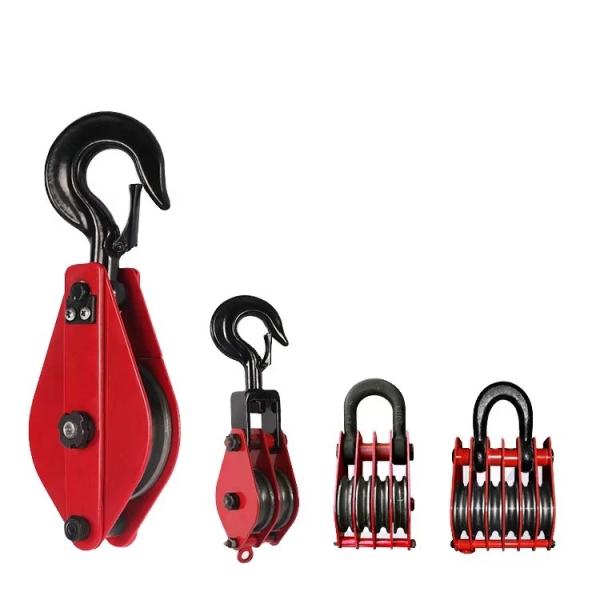

Heavy Duty Double Sheave Snatch Lifting Pulley Block With Hook 2T
Heavy Duty Double Sheave Snatch Lifting Pulley Block With Hook 2T
Heavy Duty Double Sheave Snatch Lifting Pulley Block With Hook 2T
Heavy Duty Double Sheave Snatch Lifting Pulley Block With Hook 2T
Specifications
Brand Name :
SHENGHONG
Model Number :
HQG1-2
Certification :
ISO
Place of Origin :
MADE IN CHINA
MOQ :
1pcs
Price :
get latest price.
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000sets/month
Delivery Time :
10-15 days after payment
Packaging Details :
Carton
Working Load :
2T
Wheel Material :
Single Steel
Application :
hoisting,pulling
Test Load(kN) :
32
Net Weight (kg) :
6
Diameter of race(mm) :
112
Description

Heavy Duty Double Sheave Snatch Lifting Pulley Block With Hook 2T

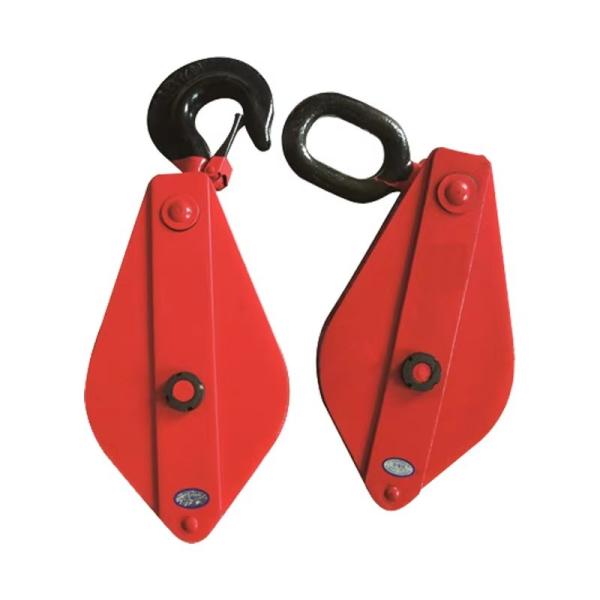

Heavy Duty Double Sheave Snatch Lifting Pulley Block With Hook is an important lifting tool with simple structure and use conveniently. It can change direction of pulley, steel rope and can lift high weight cargoes, especially series of pulley combined with windlass, mast and other lifting machinery. They are widely used in installation in construction and divides into hook type(open type) and ring type(closed type).

Parameters of pulley block:

Heavy Duty Double Sheave Snatch Lifting Pulley Block With Hook 2T

Name

Model

Capacity (T)

Test Load(kN)

Diameter of Wire rope (mm)

Diameter of race(mm)

Net Weight (kg)

Single wheel lifting tackle

General

Max

HQG1-0.5

0.5

8

6.2

7.7

71

1.75

HQG1-1

1

16

7.7

11

85

3.25

HQG1-2

2

32

11

14

112

6

Two wheel lifting tackle

HQG2-1

1

16

6.2

7.7

71

3.15

HQG2-2

2

32

7.7

11

85

6

HQG2-3.2

3.2

51.2

11

14

112

11

Heavy Duty Double Sheave Snatch Lifting Pulley Block With Hook 2T
