Guide Cable Drum Roller Fiber Optic Cable Laying Stand Cable Drum Roller Stands
Guide Cable Drum Roller Fiber Optic Cable Laying Stand Cable Drum Roller Stands
Guide Cable Drum Roller Fiber Optic Cable Laying Stand Cable Drum Roller Stands
Guide Cable Drum Roller Fiber Optic Cable Laying Stand Cable Drum Roller Stands
Specifications
Brand Name :
SHENHONG
Model Number :
HZT1800
Certification :
ISO
Place of Origin :
Jiangsu,China
MOQ :
1pcs
Price :
negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000pcs per month
Delivery Time :
7days after payment
Packaging Details :
plastic box
Appllicable drum diameter (mm) :
Φ500~Φ1800
Maximum weight of drum (kg) :
1500
Dimension (mm) :
650×150×145
Single piece weight (kg) :
40
Application :
apply to electric power, communication and relatively industry to lay cable
Warranty :
1 year
Description

Guide Cable Drum Roller Fiber-optic Cable Laying Stand Cable Drum Roller Stands

Description:

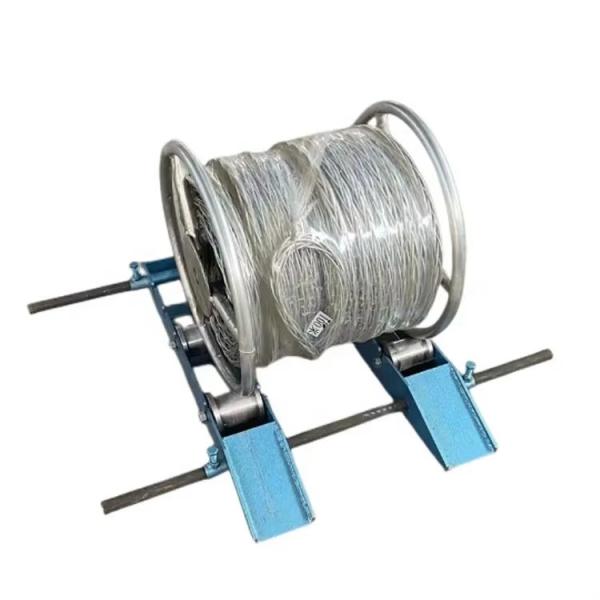

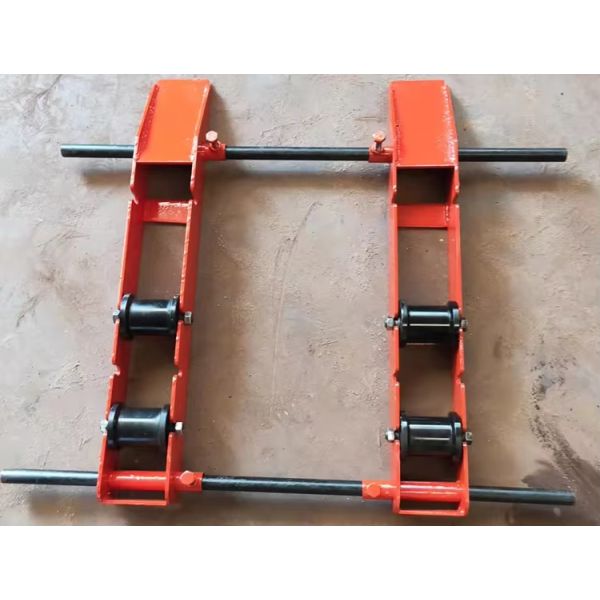

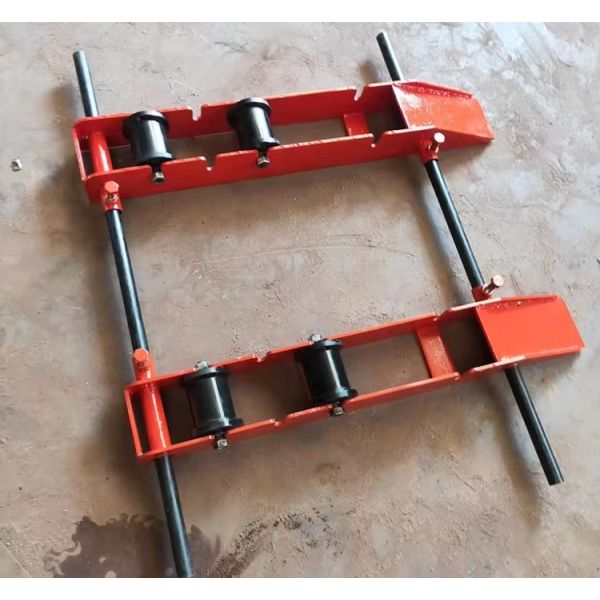

The reel rotator platform can be used as the cable reel spreading device. It can be applied to the cable laying construction in electric power, communication, and other relevant industries. This product is basically composed of the turntable, roller, roller axis, as well as the locking fixture. The roller is internally equipped with rolling bearing. While rotating, the reel is flexible.

Using Method:
1. The two platforms must be well placed on basis of the reel width.

2. The roller close to the slope needs to be locked.

3. The position of roller should be adjusted in accordance with the reel diameter.

4. The reel must be pushed to the platform along the slope.

5. Relieve the locked roller, and then the reel is able to rotate.

Essential technical parameter

Item number 21533 21552 21551
Model HZT1250 HZT1800 HZT2500
Appllicable drum diameter (mm) Φ500~Φ1250 Φ500~Φ1800 Φ500~Φ2500
Maximum weight of drum (kg) 500 1500 1500
Dimension (mm) 470×172×105 650×150×145 900×230×130
Single piece weight (kg) 17 40 73.5

Using method :

1. Mounted on two roller base on the drum diameter.

2. Lock the roller on the slope.

3. Adjust roller base on the drum diameter.

4. Slopes the drum rim up the turntable along its slants.

5. Relieve the locking roller, then you can turn the drum.
