MOTORIZED HYDRAULIC COMPRESSOR HYDRAULIC CRIMPING TOOLS WITH GASOLINE ENGINE 100 TONS 200 TONS
MOTORIZED HYDRAULIC COMPRESSOR HYDRAULIC CRIMPING TOOLS WITH GASOLINE ENGINE 100 TONS 200 TONS
MOTORIZED HYDRAULIC COMPRESSOR HYDRAULIC CRIMPING TOOLS WITH GASOLINE ENGINE 100 TONS 200 TONS
MOTORIZED HYDRAULIC COMPRESSOR HYDRAULIC CRIMPING TOOLS WITH GASOLINE ENGINE 100 TONS 200 TONS
Specifications
Brand Name :
XINYA
Model Number :
QY-100/125/200
Certification :
ISO
Place of Origin :
Jiangsu,China
MOQ :
1set
Price :
get latest price
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100sets/week
Delivery Time :
7-10 workdays after payment
Packaging Details :
export standard plywood case
Pump Rated pressure :
70 Mpa
Application :
overhead line transmission
Usage :
crimp cable
Type :
hydraulic crimping head
Pump :
HONDA GX160 hydraulic gasoline pump
Crimping Head :
100T,125T,200T
Item :
Hydraulic crimping tool
Product Name :
Motorized Hydraulic Compressor Hydraulic Crimping Tool with Gasoline Engine 100 tons 200 tons
Description

Motorized Hydraulic Compressor Hydraulic Crimping Tool with Gasoline Engine 100 tons 200 tons

Application:

Motorized Hydraulic Compressor / Hydraulic press is used to join wire ends and strengthen damaged condcutor (restorative-repair).

Technical Data:

Superhigh Hydraulic Pump SP2H
Model SP2HHX-1
Engine Power 5.5HP(3.4KW) HONDA GX160 Petrol engine
Engine Rotational speed 4000r/min
Rated Press/Delivery Capacity 800bar / 1.8L/min (High)
90bar / 9L/min (Low)
Hydraulic Oil Model 46# antiwear hydraulic oil
Capacity of Hydraulic oil box 19L
Filling quantity of hydraulic oil 15L
Overall Dimension 620×420×430mm
Total Weight 40kg(without hydraulic oil)
Acting Style to the hydraulic cylinder double acting
Hydraulic reversal valve for middle position M(up-hold-down)

Oil Hose standard length: 2.5 m/pc * 2pcs

Note:

Length of oil hose can be made as per your requirement.

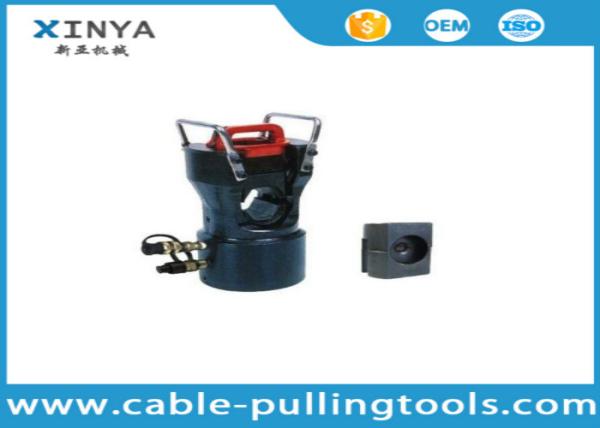

Hydraulic compression head QY-100:

Output pressure:100 tons

Rated working pressure:80MPa;

Stroke:22mm

Weight:33kgs

Hydraulic compression head QY-200:

Output pressure:200 tons

Rated working pressure:80MPa;

Stroke:40mm

Weight:90kgs

Hydraulic compression head QY-125:

Max output pressure:125 tons;

Rated working pressure:80MPa;

Stroke:25mm;

Weight:40Kg;

MOTORIZED HYDRAULIC COMPRESSOR HYDRAULIC CRIMPING TOOLS WITH GASOLINE ENGINE 100 TONS 200 TONS
