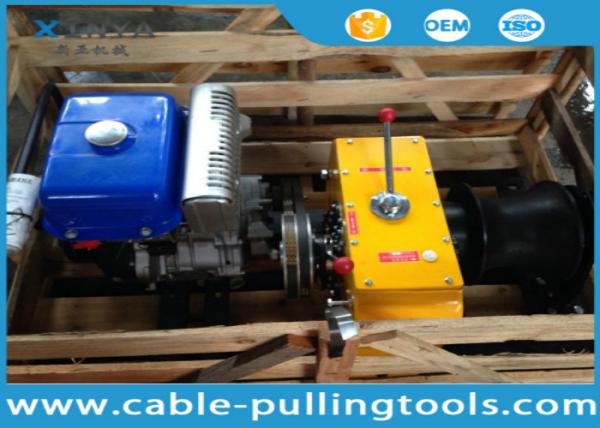

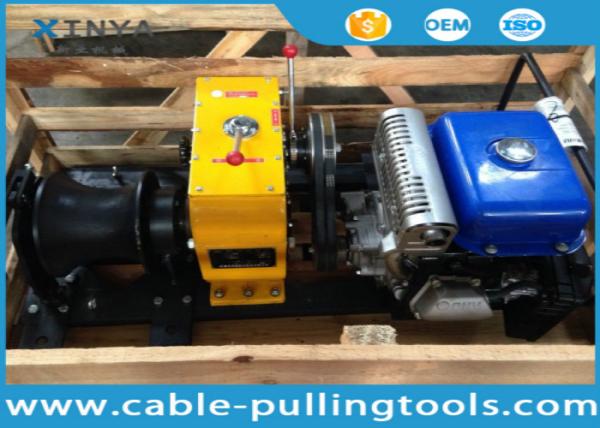

Heavy Duty YAMHA Winch 8T for Cabe Pulling During Overhead Line Transmission
Heavy Duty YAMHA Winch 8T for Cabe Pulling During Overhead Line Transmission
Heavy Duty YAMHA Winch 8T for Cabe Pulling During Overhead Line Transmission
Heavy Duty YAMHA Winch 8T for Cabe Pulling During Overhead Line Transmission
Specifications
Brand Name :
XINYA
Model Number :
JJM8Q
Certification :
ISO
Place of Origin :
Jiangsu, China
MOQ :
1 set
Price :
get latest price
Payment Terms :
L/C, T/T,
Supply Ability :
100 Set/Sets per Month
Delivery Time :
10 days after payment
Packaging Details :
export standard plywood case
Power Source :
Yamaha petrol engine
Application :
cable pulling.lifting and hoisting
Capacity :
8 Ton
usage :
hositing;pulling
Name :
Heavy Duty YAMHA Winch 8T for Cabe Pulling During Overhead Line Transmission
Item :
Cable pulling winch
Description

Heavy Duty YAMHA Winch 8T for Cabe Pulling During Overhead Line Transmission

Application
Heavy Duty YAMHA Winch 8T for Cabe Pulling During Overhead Line Transmission is used for tower erection,pole setting,stringing wire in electrical power line construction.
Winch can be modified as per requirement, such as changing curve capstan into straight even
cylindrical shape and coming with steel rope.

Technical Data

Model Type Engine Power Gear Pulling Speed(m/min) Pulling Force(KN)
JJM-8Q 13HP Yamaha slow 4 80
fast 8 4
revcerse 3.8


Heavy Duty YAMHA Winch 8T for Cabe Pulling During Overhead Line Transmission

Different Types of Winches
Heavy Duty YAMHA Winch 8T for Cabe Pulling During Overhead Line Transmission

Model Engine Gear Pulling Speed(m/min) Rated Pulling Force(Ton) Weight(Kg)
JJQ-1 HONDA Petrol engine 4 HP (Slow) 10.0 0.8 36
(Fast) 15.0 0.6
Reverse 12.0 No Lifting!
JJD-1 Electric motor 2.2kw (Slow) 10.0 0.8 46
(Fast) 15.0 0.6
Reverse 12.0 No Lifting!
JJQ-3 HONDA Petrol engine(6HP)or Homemade Petrol engine (Slow) 5.0 3.0 82
(Fast) 9.0 1.8
Reverse 4.0 No Lifting!
JJC-3 Diesel engine(4HP) (Slow) 6.0 3.0 108
(Fast) 11.0 1.8
Reverse 4.5 No Lifting!
JJQ-5

YAMAHA Petrol engine (9HP)
or
HONDA Petrol engine
or
Homemade Gasoline engine

 (Slow) 5.0 5.0 145
(Fast) 9.0 2.5
Reverse 3.2 No Lifting!
JJC-5 Diesel engine(6.6HP) (Slow) 5.0 5.0 180
(Fast) 9.0 2.5
Reverse 3.2 No Lifting!
JJQ-8

HONDA Petrol engine
or
homemade petrol engine 13HP

 (Slow) 3.0 8.0 168
(Fast) 5.0 3.0
Reverse 3.0 No Lifting!
JJC-8 Diesel engine 10.5HP (Slow) 4.0 8.0 230
(Fast) 7.5 3.0
Reverse 3.7 No Lifting!
