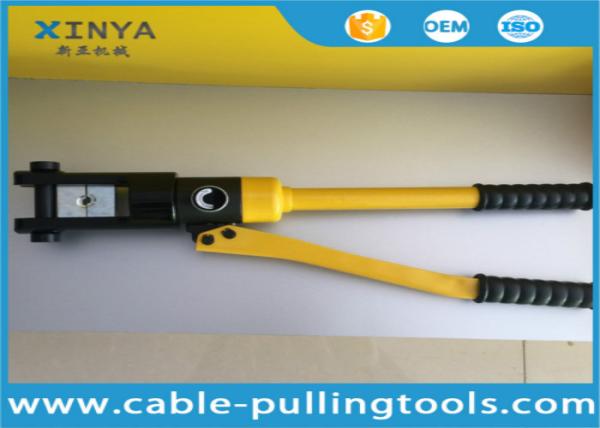

YQK -300 Manual Hydraulic Crimping Tools Cable Lug For Terminals
YQK -300 Manual Hydraulic Crimping Tools Cable Lug For Terminals
YQK -300 Manual Hydraulic Crimping Tools Cable Lug For Terminals
YQK -300 Manual Hydraulic Crimping Tools Cable Lug For Terminals
YQK -300 Manual Hydraulic Crimping Tools Cable Lug For Terminals
YQK -300 Manual Hydraulic Crimping Tools Cable Lug For Terminals
YQK -300 Manual Hydraulic Crimping Tools Cable Lug For Terminals
YQK -300 Manual Hydraulic Crimping Tools Cable Lug For Terminals
Specifications
Brand Name :
XINYA
Model Number :
YQK120
Certification :
ISO
Place of Origin :
Jiangsu,China
MOQ :
2sets
Price :
USD150-300/pc
Payment Terms :
L/C, T/T,
Supply Ability :
100sets/Week
Delivery Time :
100sets/week
Packaging Details :
export standard plywood case
output :
160KN
Working Stroke :
22mm
Crimping Range :
16-300mm2
Weight :
8.0kg
Application :
crimp
selling point :
180 degree rotate
Name :
YQK-300 Manual Hydraulic Cable Lug Crimping Tools
Description

YQK -300 Manual Hydraulic Crimping Tools Cable Lug For Terminals

Characteristics

1.Compression mould can be replaced, quick and safe operation;

2.Compression configuration: 6,10,16,25,35,50,70,150,185,240,300mm2

Press tools is suitable for DIN.AWG.JIS.

There is a safe protective equipment of "Kacha" voice when it reaches to high or low voltage.

Only one person can work.

Pump is connected to the tools, it can turn 180 degree when pressed on the head.

Features

1. The compression pliers are designed for hydraulic crimping on power cable and wire. The crimped conductor is tested in high conductivity and close contact so that it's uneasy to break out and turn hot .

2. Dies are quickly put on tube by double speed unit. Then compression force lift and automatically change to low speed. The operation finishes with energy saving and time shorten.

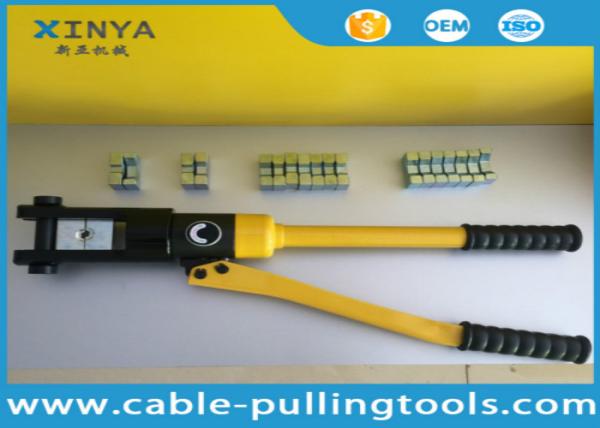

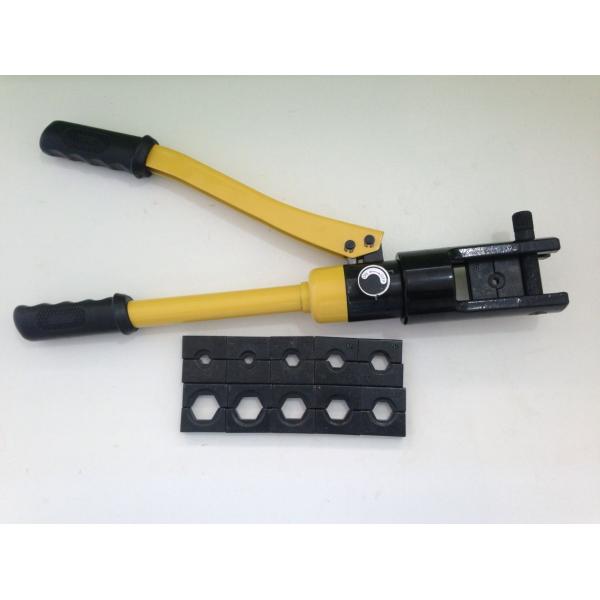

3. Standard die assembling 16,25,35,50,70,95,120,150,185,240,300mm2

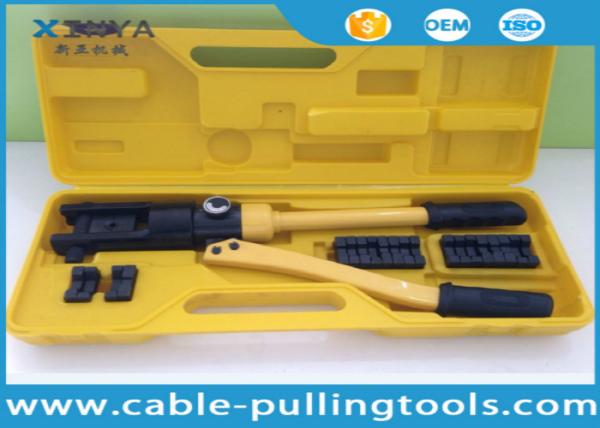

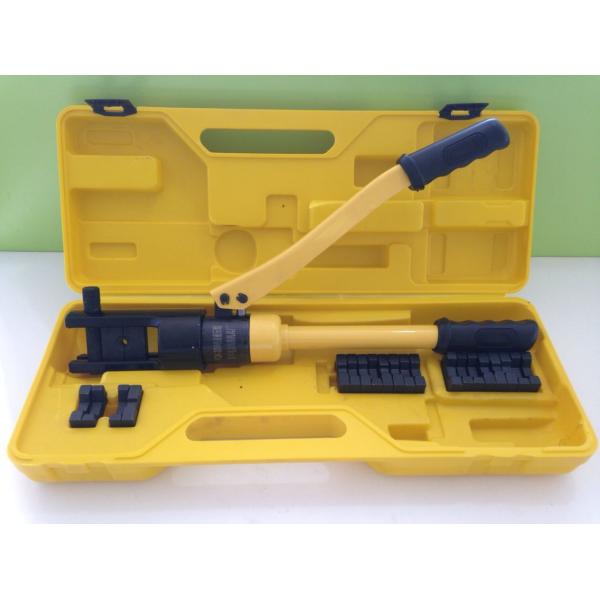

4.Packing case is made form robust integarl plastic box.

Technical Data

Product No. Model Type Output (KN) Crimping Range(mm2) Working Stroke(mm) Packing Term Oil Capacity (cc) Weight(kg)
80079 YQK-300 160 300 22 plastic box 145 8.0

YQK -300 Manual Hydraulic Crimping Tools Cable Lug For Terminals

YQK -300 Manual Hydraulic Crimping Tools Cable Lug For Terminals

YQK -300 Manual Hydraulic Crimping Tools Cable Lug For Terminals

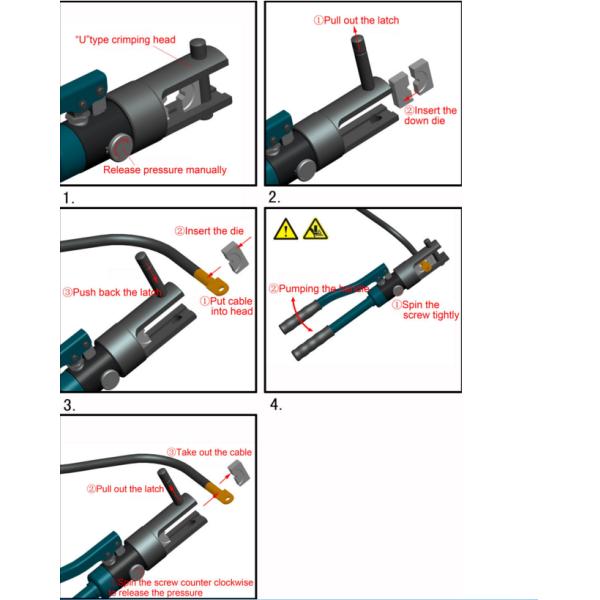

Manual Instruction

YQK -300 Manual Hydraulic Crimping Tools Cable Lug For Terminals
