Underground Cable Tools 11mm Fiberglass Duct Rod / Duct Rodders
Underground Cable Tools 11mm Fiberglass Duct Rod / Duct Rodders
Underground Cable Tools 11mm Fiberglass Duct Rod / Duct Rodders
Underground Cable Tools 11mm Fiberglass Duct Rod / Duct Rodders
Specifications
Brand Name :
XINYA
Model Number :
P
Certification :
ISO
Place of Origin :
Jiangsu,China
MOQ :
5 sets
Price :
get latest price
Payment Terms :
L/C, T/T, , Western Union
Supply Ability :
100sets/day
Delivery Time :
7-10 workdays after payment
Packaging Details :
Carton
Rod Diameter :
11mm
Length of pulling rod :
50-500M
Rod Outer :
High Density polyethylene coating
Color :
blue, yellow, red, white etc
Wheel :
rubber
Technology :
Pultrusion
Item :
Underground Cable Tools 11mm Fiberglass Duct Rod / Duct Rodders
MOQ :
5 sets
Description

11mm Fiberglass Push Pull Rod Wire Pulling Duct Rods And Fiberglass Duct Rodders

Fiberglass duct rod or duct rodders and commonly called python rod by its nature passing through under ground ducts by ups, down negotiating the duct curvature thus very convinient to pull the cables , wires inside the duct , also it can be used to locate the duct block or damage portion identifications . its has high safety aspects to use underground applicartions because of its non conductivity of electricity, sets a major safety to site workers .

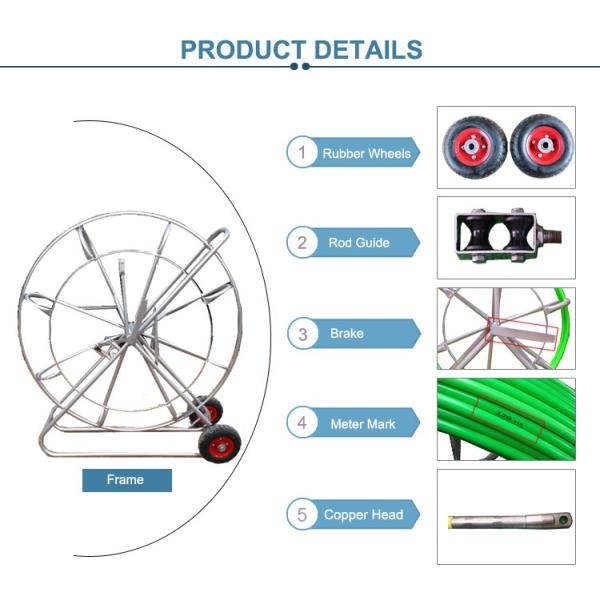

It has been built with rigid sturdy steel tubular fabrication for easy usage at site and can be self coiled in the tubular frame and easily roll like trolley on ground by its wheels fitted at bottom .
The ducts rodders normmaly comes in various diameters from 4.5 mm to 16 mm as per ground applications. normally 10 mm dia FRP rodders used for pulling, cleaning and locating blocks in Fiber optic Cable network applications .

Fibreglass Duct Rod.pdf

Underground Cable Tools 11mm Fiberglass Duct Rod / Duct Rodders

Underground Cable Tools 11mm Fiberglass Duct Rod / Duct Rodders

Underground Cable Tools 11mm Fiberglass Duct Rod / Duct Rodders

Specification

Rod Diameter (mm)

Φ4,Φ4.5,Φ5,Φ6,Φ8,Φ10,Φ11,Φ12,Φ13,Φ14,Φ15,Φ16

Rod Length (m)

30~500

Frame Spec.(mm)

1300x450x1330,1200x420x1220,980x350x1000,680x240x700, etc

Wheel Diameter(mm)

300mm

Wall thickness of Metal Frame

2.2mm

Color

blue, yellow, red, white etc

Material

Rod Inner

Extruded by fiber glass and high strength resin at high temperature

Rod Outer

High Density polyethylene coating

Iron Frame

Steel with high-temperature sprayed plastic or Spray coating

Wheel

rubber

Brake

Yes

Drawing head

copper

Physical Characters

Density

55g/m

Working temperature

-40°C to +80°C

Breaking tension

100kg

Bending Radius

295mm

Technology

Pultrusion

Packaging

Inside

plastic woven strip wind around the frame

Outside

Wooden pallet and Wooden box
