Tower Erection Tools 5 Ton Speedy Diesel Engine Wire Rope Winch For Cable Pulling
Tower Erection Tools 5 Ton Speedy Diesel Engine Wire Rope Winch For Cable Pulling
Tower Erection Tools 5 Ton Speedy Diesel Engine Wire Rope Winch For Cable Pulling
Tower Erection Tools 5 Ton Speedy Diesel Engine Wire Rope Winch For Cable Pulling
Specifications
Brand Name :
XINYA
Model Number :
JJM5B
Certification :
ISO
Place of Origin :
Jiangsu,Chian
MOQ :
1 set
Price :
get latest price
Payment Terms :
, L/C, T/T
Supply Ability :
100 sets for one month
Delivery Time :
Five days after deposit
Packaging Details :
Packed with Carton or wooden case
Material :
Steel
Type :
Diesel engine power
Rated Power :
10KW
Dimension(mm) :
1100*498*600
Weight(kg) :
137
Rated Loading Capacity :
5 Ton
Description

Tower Erection Tools 5 Ton Speedy Diesel Engine Wire Rope Winch For Cable Pulling

Application

It is used for tower erection,pole setting,stringing wire in electrical power line construction.

Winch can be modified as per requirement, such as changing curve capstan into straight even

cylindrical shape and coming with steel rope.

Features

1 small size & compact structure.

The machine is now supported by gasoline engine, diesel engine, electric or imported gasoline engine.

2 light weight.

For example, the weight of 3 ton gasoline engine powered winch is 88 kgs. Equipped with diesel engine or motor, the winch is 108 kg. Equipped with imported gasoline engine, the winch is only 82 kg, which is very convenient transported. They are especially suitable for line construction in water area and mountain. String machine equipped with a small capstan, can also be used for a vertical rod, wire. One machine with two function in the wildfield helps to reduce crop losses.

3 high efficiency.

It reduces the labor intensity, improves working efficiency with less operators and convenient field command.

4 safe and reliable.

The machine has the interlocking brake device, accurate positioning, excellent braking performance , flexible usage, safety and trust.

5 widely used.

According to customers’ response and field investigation, this machine has wide usage, such as rod up, a vertical rod, the pull rod, line release, line reel, the bridge plate traction, lifting and other purposes.

Technical Data

Model JJM5B
Engine HODNA GX390/186F Diesel Engine/YAMAHA MX360
Power 13HP,3600rpm/6.3KW,3600rpm/12HP,3600rpm
Gear Forward
Slow I Slow II Fast I Fast II
Pull Force(KN) 50 30 15 9
Speed(m/min) 5 9 14 24
Weight(KG) 200
Dimension(mm) 1200×600×750

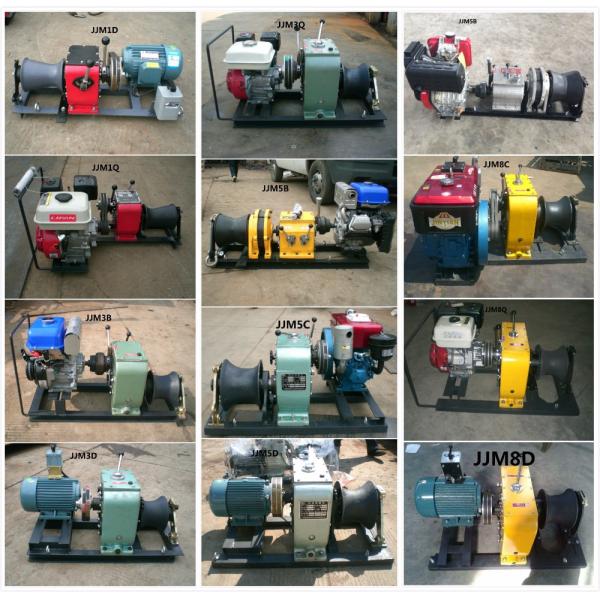

Different Types of Winches

Tower Erection Tools 5 Ton Speedy Diesel Engine Wire Rope Winch For Cable Pulling

Model Engine Gear Pulling Speed(m/min) Rated Pulling Force(Ton) Weight(Kg)
JJQ-1 HONDA Petrol engine 4 HP (Slow) 10.0 0.8 36
(Fast) 15.0 0.6
Reverse 12.0 No Lifting!
JJD-1 Electric motor 2.2kw (Slow) 10.0 0.8 46
(Fast) 15.0 0.6
Reverse 12.0 No Lifting!
JJQ-3 HONDA Petrol engine(6HP)or Homemade Petrol engine (Slow) 5.0 3.0 82
(Fast) 9.0 1.8
Reverse 4.0 No Lifting!
JJC-3 Diesel engine(4HP) (Slow) 6.0 3.0 108
(Fast) 11.0 1.8
Reverse 4.5 No Lifting!
JJQ-5

YAMAHA Petrol engine (9HP)
or
HONDA Petrol engine

or

Homemade Gasoline engine

 (Slow) 5.0 5.0 145
(Fast) 9.0 2.5
Reverse 3.2 No Lifting!
JJC-5 Diesel engine(6.6HP) (Slow) 5.0 5.0 180
(Fast) 9.0 2.5
Reverse 3.2 No Lifting!
JJQ-8

HONDA Petrol engine

or

homemade petrol engine 13HP

 (Slow) 3.0 8.0 168
(Fast) 5.0 3.0
Reverse 3.0 No Lifting!
JJC-8 Diesel engine 10.5HP (Slow) 4.0 8.0 230
(Fast) 7.5 3.0
Reverse 3.7 No Lifting!
