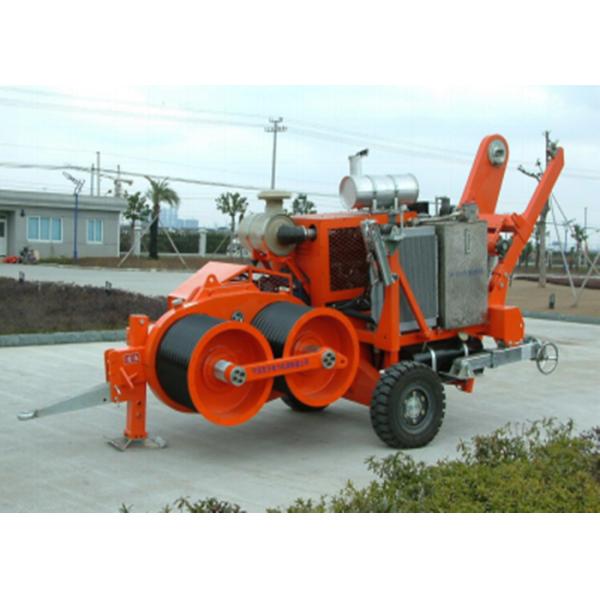

Cable Stringing Equipment Hydraulic Cable Puller Winch 220KN Capacity
Cable Stringing Equipment Hydraulic Cable Puller Winch 220KN Capacity
Cable Stringing Equipment Hydraulic Cable Puller Winch 220KN Capacity
Cable Stringing Equipment Hydraulic Cable Puller Winch 220KN Capacity
Specifications
Brand Name :
XINYA
Model Number :
SA-YQ220
Place of Origin :
Jiangsu, China
MOQ :
1 set
Payment Terms :
L/C, T/T, Western Union, Western Union
Supply Ability :
1 Set/Sets per Month
Delivery Time :
60 days after payment
Packaging Details :
standard export plywood case.
Certification :
ISO
Price :
get latest price
Maximum linepull (kN) :
220
Continuous linepull (kN) :
200
Maximum linespeed (km/h) :
5
Bullwheel grooves number :
10
Dimensions (mm) :
5700×2300×2600
Weight (kg) :
8000
MOQ :
1 set
Description

Cable Stringing Equipment Hydraulic Cable Puller Winch 220KN Capacity

Application

SA-YQ220 Overhead stringing equipment hydraulic capstan winch cable puller is applicable to release wire, ground wire, cable in transmission line project.Together with tension machine, this model allows for the tension stringing of 220kV lines in mountainous and hilly areas and can be used for the traction stringing of OPGW or ADSS cable in various terrains.

Features

1.Infinitely variable speed and line control, the pull in the rope can be read on the line pull gauge.

2.The max pull for conductor-stringing operation can preset,automatic overpull protection system.

3.Spring applied hydraulic release brake acts automatically in case of hydraulic failure to ensure safety.

4.Attached reel winder with automatically level wind.load and unload conveniently.

5.Hydraulic pullrope pinch device,replacing reel conveniently.

Main Specifications

Model SA-YQ220 Hydraulic Puller
Maximum Traction Force (kN) 220
Continuous Tractive Effort (kN) 180
Maximum Pulling Speed (km/h) 5
Bullwheel Bottom of Groove Diameter (mm) Φ760
Number of Bullwheel Grooves 10
Maximum Diameter of Suitable Steel Rope (mm) Φ30
Maximum Through Connector Diameter (mm) Φ75
Engine Power / Speed (kW/rpm) 243/2100
Dimensions (mm) 5700× 2300× 2600
Weight (kg) 8000

Main Components

Engine Cummins (USA) water-cooled diesel engine
Main Variable Displacement Pump, Main Motor Rexroth (BOSCH)
Reducer Rexroth (BOSCH)
Main Hydraulic Valves Rexroth (BOSCH)
Radiator AKG
Hydraulic Instrument
Suitable Drum Model GSP1600 (Item number: 07125D)

Cable Stringing Equipment Hydraulic Cable Puller Winch 220KN Capacity
