Cable Winch Puller 1 Ton Electric Cable Winch Puller for Tower Erection
Cable Winch Puller 1 Ton Electric Cable Winch Puller for Tower Erection
Cable Winch Puller 1 Ton Electric Cable Winch Puller for Tower Erection
Cable Winch Puller 1 Ton Electric Cable Winch Puller for Tower Erection
Cable Winch Puller 1 Ton Electric Cable Winch Puller for Tower Erection
Cable Winch Puller 1 Ton Electric Cable Winch Puller for Tower Erection
Specifications
Brand Name :
XInya
Model Number :
JM1-D
Certification :
ISO
Place of Origin :
Jiangsu, China
MOQ :
1 sets
Price :
get latest price
Payment Terms :
L/C, T/T,
Supply Ability :
1000set/sets per month
Delivery Time :
10-15 days after payment
Packaging Details :
standard export wooden case
Power Source :
Electric
Rated Loading :
1 Ton
weight(kg) :
46
rated power :
2.2KW
Maximum Lifting Weight :
10KN
Power :
220V/380V 2.2KW
Description

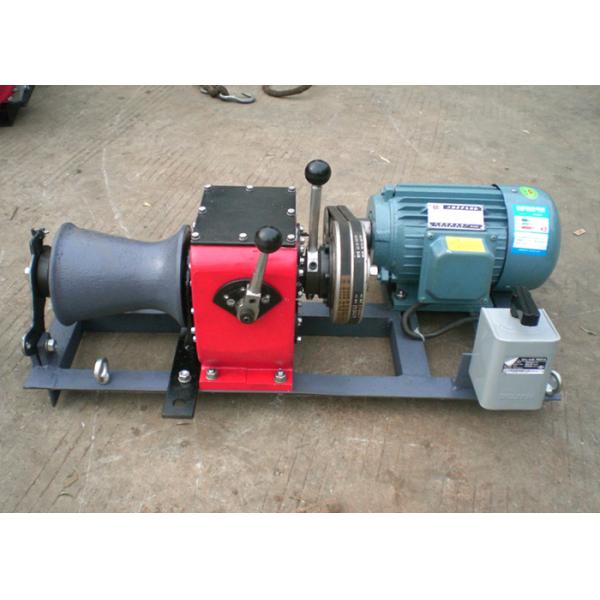

Cable Winch Puller 1 Ton Electric Cable Winch Puller for Tower Erection

Application
1 Ton Small Electric Winch 220v Electric Winch 380v is used for tower erection,pole setting,stringing wire in electrical power line construction.
Winch can be modified as per requirement, such as changing curve capstan into straight even
cylindrical shape and coming with steel rope.

Electric Motor Specification
Rated Power:1.5KW
Rated Current:3.4A
Rated Voltage:380V/220V
Rated Frequency:50Hz
Weight:19KG
Rotate Speed:2840r/min

Quality Control
We have the complete production equipments and professional production team to manage the whole process from production to packing shipment.All products will 100% test before delivery to ensure the quality.

Technical Data

Model NO. Engine Gear Pulling Speed(m/min) Rated Pulling Force(Ton) Weight(Kg)
JJM1-D Electric motor Slow 10 0.8 46
Fast 15 0.6
Reverse 12 NO Lifting


Cable Winch Puller 1 Ton Electric Cable Winch Puller for Tower Erection

Different Types of Winches
Cable Winch Puller 1 Ton Electric Cable Winch Puller for Tower Erection

Model

Engine

Gear

Pulling Speed(m/min)

Rated Pulling Force(Ton)

Weight(Kg)

JJQ-1

HONDA Petrol engine 4 HP

(Slow)

10.0

0.8

36

(Fast)

15.0

0.6

Reverse

12.0

No Lifting!

JJD-1

Electric motor 2.2kw

(Slow)

10.0

0.8

46

(Fast)

15.0

0.6

Reverse

12.0

No Lifting!

JJQ-3

HONDA Petrol engine(6HP)or Homemade Petrol engine

(Slow)

5.0

3.0

82

(Fast)

9.0

1.8

Reverse

4.0

No Lifting!

JJC-3

Diesel engine(4HP)

(Slow)

6.0

3.0

108

(Fast)

11.0

1.8

Reverse

4.5

No Lifting!

JJQ-5

YAMAHA Petrol engine (9HP)
or
HONDA Petrol engine
or
Homemade Gasoline engine

(Slow)

5.0

5.0

145

(Fast)

9.0

2.5

Reverse

3.2

No Lifting!

JJC-5

Diesel engine(6.6HP)

(Slow)

5.0

5.0

180

(Fast)

9.0

2.5

Reverse

3.2

No Lifting!

JJQ-8

HONDA Petrol engine
or
homemade petrol engine 13HP

(Slow)

3.0

8.0

168

(Fast)

5.0

3.0

Reverse

3.0

No Lifting!

JJC-8

Diesel engine 10.5HP

(Slow)

4.0

8.0

230

(Fast)

7.5

3.0

Reverse

3.7

No Lifting!

Company Introduction
Established in 1983,registered capital of 5,000,000 RMB,Changshu Xinya Machinery Manufacturing Co.,Ltd.specializes in design,production and sales of electric power construction tools such as 1 ton,2 ton,3 ton,5 ton,8 ton JJM series gasoline engine/diesel engine/electric engine powered winch,tension machine,traction machine;high pressure hydraulic pump;125T&200T hydraulic crimping compressor head;manual pressure pliers;high-strength aluminum alloy wire come along clamp,lifting tackle,wire pulley,cable pulley and so on.We also manufacture various types of large-tonnage forklift mast and a variety of special requirements of non-standard forklift frame.
Our company has passed ISO9001 and BV certificate of company inspection.Based on the principle of seeking for greater perfection,our company constantly improves the quality control system,strengthens the service consciousness of our employees,implements management philosophy of high quality and good service.
