660mm Dia Wheels Helicopter Stringing Blocks For Pilot Wire Rope
660mm Dia Wheels Helicopter Stringing Blocks For Pilot Wire Rope
660mm Dia Wheels Helicopter Stringing Blocks For Pilot Wire Rope
660mm Dia Wheels Helicopter Stringing Blocks For Pilot Wire Rope
Specifications
Brand Name :
XINYA
Model Number :
SH3Z
Certification :
ISO
Place of Origin :
Jiangsu,China
MOQ :
1set
Price :
Negotiable
Payment Terms :
L/C, T/T,
Delivery Time :
25-35 days
Packaging Details :
1000 sets per month
Application :
Stringing block for pilot
Name :
Helicopter Stringing blocks
Type :
Block And Tackle
Material :
Nylon or Aluminum sheave
selling point :
large diameter
Wheel diameter :
508/660/750/822/916/1040
Weight :
20-220kg
Description

660mm Large diameter wheels for pilot wire rope , wire helicopter stringing blocks

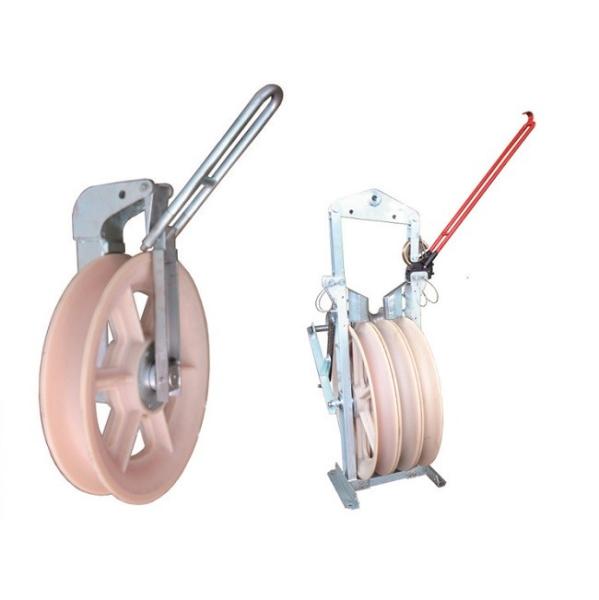

Helicopter Stringing Blocks

Uses: It is suitable to string many kinds of overhead conductors on tangent structures. Compression sleeves, swivel connectors, and pulling rope connectors can pass through the groove. The sheaves are made of aluminum alloy or high strength nylon.

Notes:
1. 508mm, 660mm aluminum alloy sheave can be lined with rubber.
2. 660mm, 822mm, 916mm, 1040mm nylon sheave can be lined with rubber
3. Three sheaves and five sheaves helicopter stringing blocks are available for two bundle conductor and four bundle conductors stringing.

Main Specifications

Item number Model OutsideDiameter Sheave(MM) Sheaves
10321 SHDN508Z

Φ508×75

(508*100)

 1
10322 SHSN508Z 3
10323 SHWN508Z 5
10324 SHDN660Z

Φ660×100

(660×110)

 1
10325 SHSN660Z 3
10326 SHWN660Z 5
10326-1 SHDN822Z Φ822×110 1
10326-2 SHSN822Z 3
10326-3 SHWN822Z 5
10327 SHDN916Z Φ916X110 1
10328 SHSN916Z 3
10329 SHWN916Z 5
