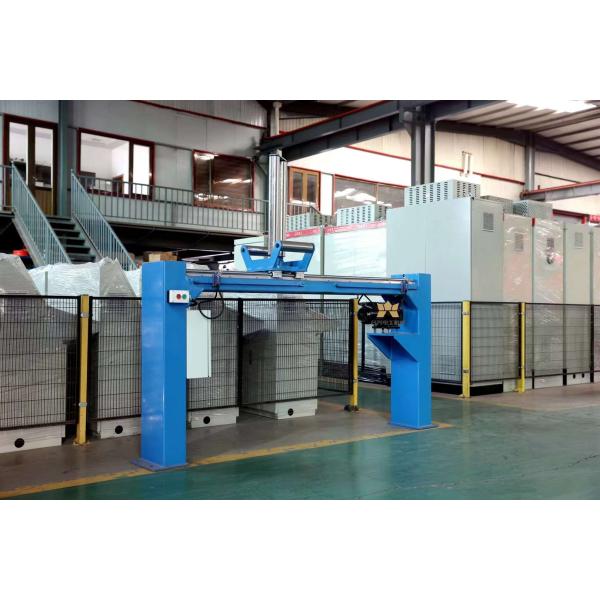

PN1250 to PN3150 End Shaft Pay-off and Take-up Rack For Cable Manufacturing

1. PN3150 Take-up with traverse wire rack:

• This machine is used for cable extrusion and rotating machine to pull various cables.
• Applicable wire reel specification: PN1250 - PN3150
• Take-up speed: 170m/min max
• Max load capacity: 5 tons
• Traverse wire pitch: 10-30mm stepless and adjustable
• The winding motor adopts a 7.5kw AC motor, and the take-up tension is adjusted through inverter
• End shaft structure, electric clamping, electric lifting
• The speed of winding and winding driven by a separate motor
• With electric operating handle
• Installation without foundation
• Power:380/440V,50- 60Hz, 3 phase, 5 wire, single phase 200-240V.

2. 1600mm Column type pay-off rack (end-shaft type)

• This machine is used for cable extrusion and rotating machine to pull various cables.
• Applicable wire reel specification: PN800 - PN1600
• Tension form: mechanical friction control
• End shaft pay-off type, electric lifting, screw clamping;
• Lifting and clamping device with limit safety protection function
• Installation without foundation
• Power:380/440V,50- 60Hz, 3 phase, 5 wire, single phase 200-240V.

3. 2000mm Column take-up and traverse line rack(end-shaft type)

• Applicable wire reel specification: PN1000 - PN2000
• Max load capacity: 10 tons
• Traverse wire pitch: stepless and adjustable
• Max take-up speed: 65m/min
• The winding motor adopts a 5.5 AC motor, and the take-up tension is adjusted through a inverter.
• End shaft structure, electric clamping, electric lifting
• The speed of winding and winding driven by a separate motor
• With electric operating handle
• Installation without foundation
• Power:380/440V,50- 60Hz, 3 phase, 5 wire, single phase 200-240V.

4. 2500mm Column take-up and traverse line rack(end-shaft type)

• Applicable wire reel specification: PN1250 - PN2500
• Max load capacity: 12 tons
• Traverse wire pitch: 10-60mm stepless and adjustable
• Max take-up speed: 45m/min

• The winding motor adopts a 5.5 AC motor, and the take-up tension is adjusted through a inverter.
• End shaft structure, electric clamping, electric lifting
• The speed of winding and winding driven by a separate motor
• With electric operating handle
• Installation without foundation
• Power:380/440V,50- 60Hz, 3 phase, 5 wire, single phase 200-240V.
