JGGA -630 Cable Strander , Tubular Stranding Machine For Long Life Time
JGGA -630 Cable Strander , Tubular Stranding Machine For Long Life Time
Specifications
Brand Name :
Beyde
Model Number :
tubular closer
Place of Origin :
Hejian,China
MOQ :
1 Set
Price :
Negotiate
Payment Terms :
L/C, T/T
Supply Ability :
120 Set/Year
Delivery Time :
70-150 Days after receive deposit
Packaging Details :
Container loading with safety packing
Color :
Customized
Warranty: :
12 Months
PLC :
optional
Usage :
Stranding
Name :
Tubular stranding machine
Application :
steel,aluminium,stranding steel wire,ACSR and AAAC,Al wire
Smallest take-up bobbin :
PN800,PN1000
Take-up bobbin size :
PND800-PND1600,PN-1200-2000
Description

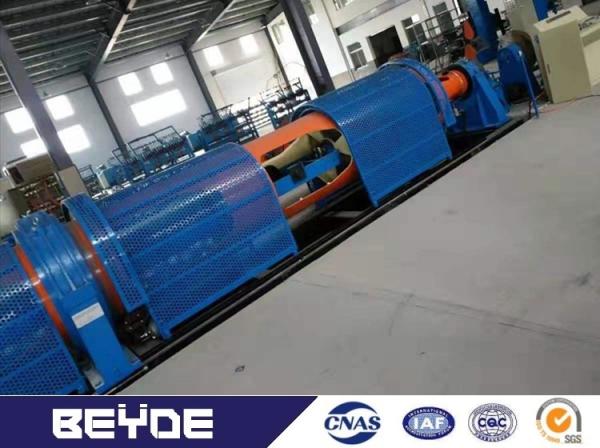

Tubular strander
The Tubular Stranding machine consists of bearing stands made of welded steel for the tube bearings. Up to reel size of 630mm .The stranding rotor is built up from welded tubes with wire guidings outside the tube. The reels are held in cradles, which are positioned inside the tube. A light beam along the complete length of the machine monitors, if the pneumatically (optional)operated reel-pintles are securely closed and the cradles are in safe condition. The machine is equipped with wire break detectors for each segment, pneumatic disk-breaks and individual drives for the Stranding Rotor, the Capstan and the Take-Up. The operator's desk gives full control over parameters like Rotor-speed, lay-length and production length.

Usage:
It is used For the production of: Copper, Aluminum, Aluminum Alloy Strand, Overhead Strands

Main Features:
• Machine placed on a Rigide steel frame with rotor support, fixed on the floor for an easy installation
• Tube rotating on encircling bearings or rollers
• Machine able to work in torsion or total back twist with the possibility of partial back twist
• Wire back tension kept constant from full to empty spool payoff
• Wire/strand break detector for each payoff unit(optional)
• Spool loading/unloading by crane
• Pneumatic pintles equipped with safety locking system
• Independent driving motors for tube, capstans and takeup units
• A.C. motors with flux vector control inverter
Technical Characteristics Of Tubular Stranding Machine:

JGGA -630 Cable Strander , Tubular Stranding Machine For Long Life Time

JGGA -630 Cable Strander , Tubular Stranding Machine For Long Life Time
