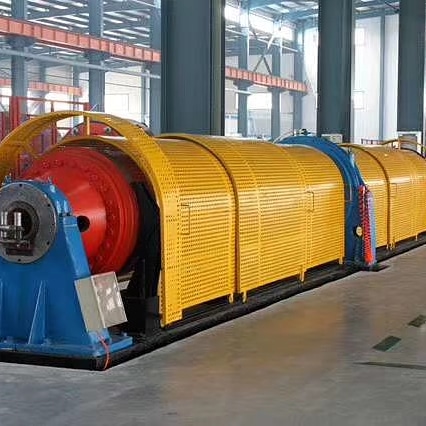

High-speed Tubular Stander (630 1+6) Continuously Adjust Stranding Pitch Accuracy: 0.01mm

Specifications
Applicable Scope: The tubular stranders specializing in manufacturing Car Steel Wire Ropes, Stainless Steel Wire Ropes, Aircraft Steel Wire Ropes, Control Steel Wire Ropes, Elevator Steel Wire Ropes and many other wire ropes with high-level and high-quality. We also can design according to your requirements.

Model BET-9/165 High-speed Tubular Stranders

Quick Detail

Type: 9/165 Brand: BEYDE

Place of Origin: HEJIAN, CHINA

Packaging: wooden case

Shipping Mode: Container

The main features of our Tubular Stranders as follows:

(1) Tube running supported by SKF imported bearings at both ends, high-speed lubricating grease to lubricate;

(2) High efficiency and high speed, low noise, micro vibration;

(3) The transmission shaft links all the machine parts together to have a stable vibration and accurate stranding pitch;

(4) Operation automation, safe and environmental, easy maintenance;

(5) Driven by A.C., synchronous take-up;

(6) Disc brakes, high sensitivity;

(7) Servo Motor system, continuously adjust stranding pitch, pitch accuracy: 0.01mm;

(8) Three testing protection: wire breaking automatic brake protection, power-off automatic brake protection, machine vibration protection;

(9) Constant-tension control, automatically adjust the uniformity of the tension, tension control: ±0.20N;

(10) Meter Count: PLC control, and all controlled by computer, more intelligent, the error for 1000m is 0.5m;

(11) Rope Dia. Online Test: If we set up tolerance: 0.01, the rope dia. is 2.38, so we get the scope: 2.37--2.39. If the rope dia. is not in the scope, the machine will stop.


Main Technical Specification
1. Single wire diameter: Φ1.3-Φ5.0mm
2. Max. stranding dia.: Φ21mm
3. Max. rotating speed of the tubular: 600r/min
4. Drawing wheel diameter: Φ1250 (duel wheel )mm
5. Pulling wire speed: 15.7-246m/min
6. Pitch range: 40.22-448.07mm
7. Direction of stranding: two directions, left and right
8. Main motor (Alternation frequency conversion motor frequency conversion adjusting speed) Y280-8B3 740r/min 45kw (AC VS)
9. Take-up motor BPY132S-4, 5.5kw frequency conversion motor
10. Outlet wire speed 15-110m/min
11. Front pay-off reel Φ630 x Φ355 x 475 (hole 127)mm
Φ1000 x Φ490 x 710 (hole 80) mm
12. Pay-off reel in the tubular Φ630 x Φ355 x 475 (hole 127)mm
13. Take-up bobbin PN800-PN2000mm
Overall size 23850 x 2680 x 1626mm
