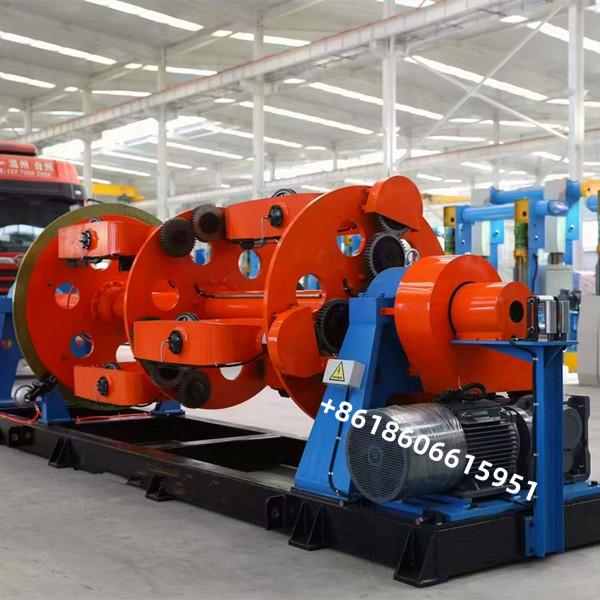

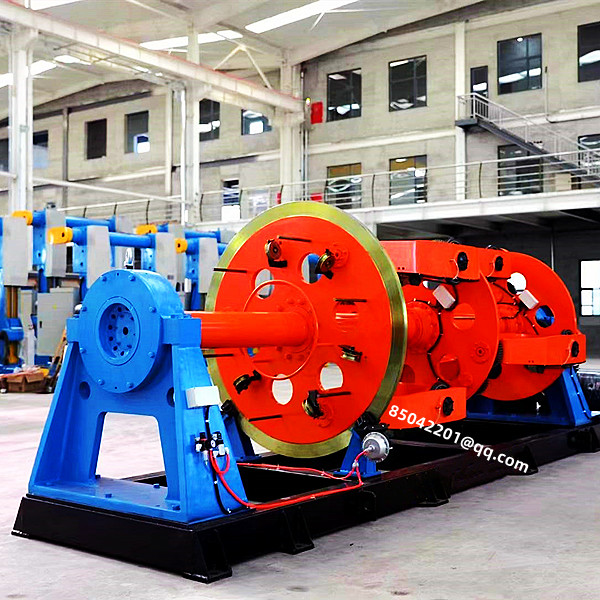

Planetary Type Steel Wire Rope Stranding Machine Easy Maintenance
Planetary Type Steel Wire Rope Stranding Machine Easy Maintenance
Specifications
Brand Name :
Beyde
Model Number :
630 1+6
Place of Origin :
China
MOQ :
1 set
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
200 set/year
Delivery Time :
90 days
Packaging Details :
container
Usage :
Stranding,Twisting
Color :
Customized
Application :
Cable Making Industry,Al wire,Steel Wire Rope,stranding wire and cable
Name :
Planetary stranding machine,wire planetary stranded machine,cradle type Cabling machine
Voltage :
380voltage or others
Wire material :
copper or al,Steel Wire
Warranty :
12 Months
Function :
control cable,power cable,signal cable communication cable forming,stranding Wire and cable
Stranding pitch :
Step-less
Taping head :
500
Plc :
Siemens,optional
Optional :
Magnetic hysteresis
Type :
Automatic machine
Bearing :
NSK/SKF
Description

Easy Maintenance Planetary Type Steel Wire Rope Stranding Machine

Main Parts:

1. 500-630 stationary pay-off

2. 6 Bobbin planetary strander

3. Pressing die stands

4. Counter meter device

5. Φ1600 double wheel Capstan

6. Φ1600 column type take-up stand

7. Transmission system

8. Electrical system

9. Safety fence

Advantage:

1. The expansion connection shafts of the cradle adopting the technology from France, which avoids the abrasion between the shafts and keys. Easy installation and commissioning.

2. No need of gearboxes nor ground-shafts; no noise, no leakage, lower power consumption, easy maintenance and repair

3, Siemens S7-200 PLC with profibus can realize on-site monitoring, coordinate between different motors, DANFOSS converter controls the DC MOTORS on and off, operation, and speed control. Parameters could be set, changed and displayed on the TOUCH PANEL. Advance electrical control, easy operating, and reliable operation

Model JLY-500 JLY-630
Diameter of single wire(mm) Copper ø1.5- ø 5.0 ø 1.5 -ø 5.0
Aluminum ø 1.8- ø 5.0 ø 1.8- ø 5.0
Insulated cores ø 2.0- ø 8.0 ø 2.0- ø 10
Stranding pitch 6B Step-less, adjustable Step-less, adjustable
12B Step-less, adjustable Step-less, adjustable
18B Step-less, adjustable Step-less, adjustable
24B Step-less, adjustable Step-less, adjustable
Stranding cage motor power(KW) 6B 45 75
12B 55 90
18B 75 110
24B 90 132
Capstan Maximum liner speed(m/min) 51 42
Motor power(KW) 55 55
Taping head Maximum rotating speed(RPM) 500 500
Taping pitch Step-less, adjustable Step-less, adjustable
Motor power(KW) 11 11

Planetary Type Steel Wire Rope Stranding Machine Easy MaintenancePlanetary Type Steel Wire Rope Stranding Machine Easy Maintenance
