Specifications
Brand Name :
BOSJ
Model Number :
BOSJ-C
Certification :
ISO,CE,SGS
Place of Origin :
JIANGSU,CHINA
MOQ :
1 sets
Price :
USD50000-80000/SET
Payment Terms :
L/C, T/T
Supply Ability :
30 set per year
Delivery Time :
6 days
Packaging Details :
container packing
Name :
Perforated Channel Unistruct Roll Forming Machine
Production Speed :
10-30m/min
System :
PLC Control system
Roller material :
GCR15
Color :
Blue
Type :
Automatic
Description

Automatic Slotted C channel Roll Forming Production Machine for sale Malaysia

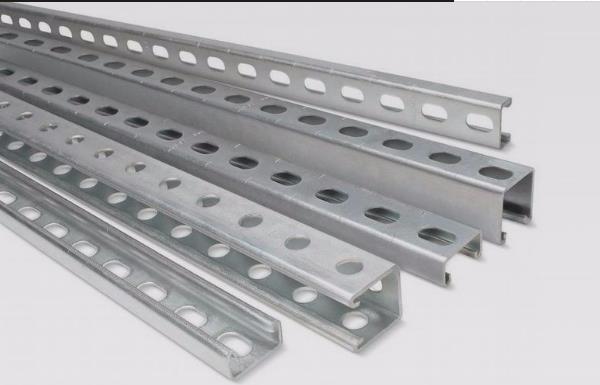

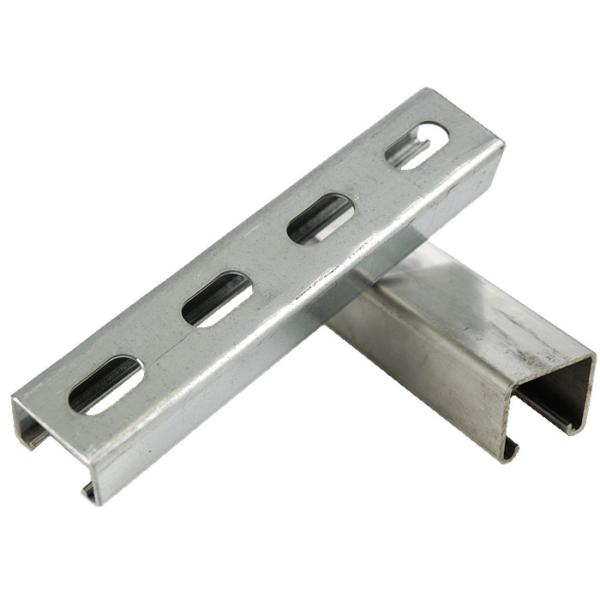

Products

41*21mm/41*41mm/41*62mm/41*72mm

Automatic Slotted C channel Roll Forming Production Machine for sale Malaysia

1,Technical parameters of machine

Width of material sheet:≤200 mm

Thickness of material sheet: 1.5~3.0mm

Material of sheet:Low carbon,etc

Line production speed:8m/min including punching

Length of the work piece:2000—6000 mm

Total Power:41KW.

2,General structure of equipment

Automatic Slotted C channel Roll Forming Production Machine for sale Malaysia

2.1Passive De-coiler

Width of material sheet:≤250 mm；Thickness of material sheet:≤2.5mm；

Inner diameter: 508mm Range of expanding: ф480-520 mm

Maximum outer diameter: φ1300mm, loading: ≤3T

2.2 Leveler

Working roller: Five rollers type leveling machine

Motor:380V 5.5KW 4 grade

2.3Servo feeder

Function:material feeding

Motor: 380V 3KW 4grade,additional air compressor(Air pressure0.5m3/min pressure0.6MPa )

2.4 Punching press

Structure:JF21-80

Punching press: Uses the steel plate welding fuselage, the rigidity is strongwith good appearance .Uses the combined type air operated friction clutch.

Motor:380V 2.5KW 4grade

Automatic Slotted C channel Roll Forming Production Machine for sale Malaysia

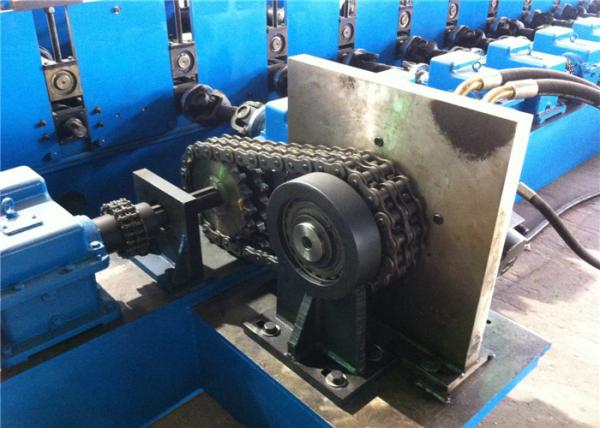

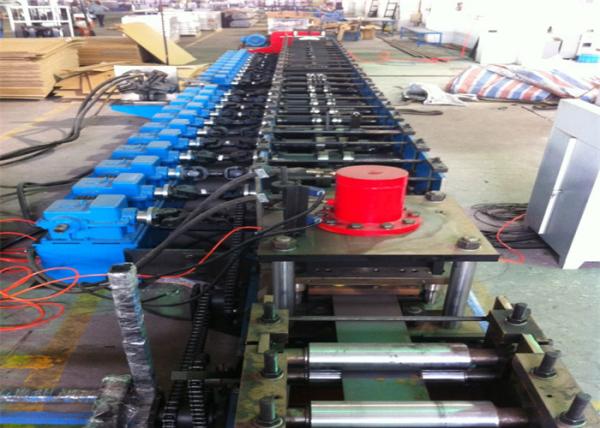

2.5 Main forming machine

Forming stations:24stations(roller)

Forming machine:C channel

Forming frame:Dragon-type,gearbox drive

Max. Feeding width:≤200mm

Max. Feeding thickness:2~2.5mm

2.6 Cutting machine

Flying saw cutting without bur

Motor power: 2.2KW

Quantity of cutting blades: 1sets Cutting type:Flying saw cutting without bur


2.7 Run-out table

2.8 Electric control system


Main Machine Technical parameter

,NO. Name unit parameter remark

1		 materials Type Mild steel galvanized sheet
Plate strength ≥350
Plate thickness mm 1.5~2.5
2 specification mm
See the picture
3 speed m/min 6~8

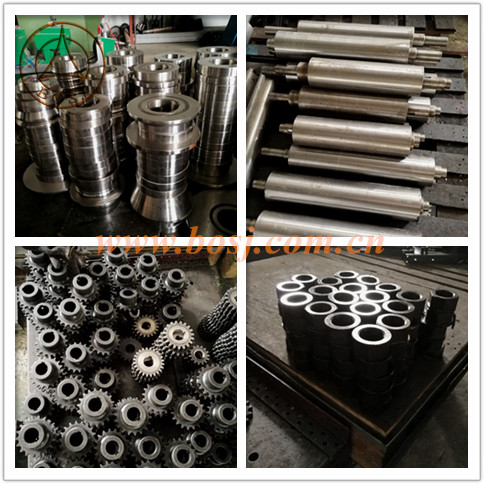

4 Material of the roller GCr15 Hardening treatment
5 drive type Gear box
6 power kw About40
7 Electrical control system PCL frequency control
8 Size(lengthXwidthXheight) m 35X4X3.9

Automatic Slotted C channel Roll Forming Production Machine for sale Malaysia
