BOSJ Cable Ladder Roll Forming Machine,Ladder Cable Tray Roll Forming Machine
BOSJ Cable Ladder Roll Forming Machine,Ladder Cable Tray Roll Forming Machine
BOSJ Cable Ladder Roll Forming Machine,Ladder Cable Tray Roll Forming Machine
BOSJ Cable Ladder Roll Forming Machine,Ladder Cable Tray Roll Forming Machine
BOSJ Cable Ladder Roll Forming Machine,Ladder Cable Tray Roll Forming Machine
BOSJ Cable Ladder Roll Forming Machine,Ladder Cable Tray Roll Forming Machine
BOSJ Cable Ladder Roll Forming Machine,Ladder Cable Tray Roll Forming Machine
BOSJ Cable Ladder Roll Forming Machine,Ladder Cable Tray Roll Forming Machine
Specifications
Brand Name :
BOSJ
Model Number :
BOSJ-C
Certification :
ISO,CE,SGS
Place of Origin :
JIANGSU
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, D/A, D/P
Supply Ability :
60 Sets Per Year
Delivery Time :
50-60 working days
Packaging Details :
Suitable Size Container for Machine
Production Amount :
8-15m/min
Roller Material :
Cr12
PLC System :
MITSUBISHI,SIEMENS
Thickness :
1.2-2.0mm
Machine Type :
Full Automatic
Function :
Cable Tray,trunking system
Spare Parts :
Punching mould
Operation Type :
PLC Interface
Driven type :
Gearbox
Description

Automatic Galvanized Steel Cable Tray Cold Roll Forming Machine

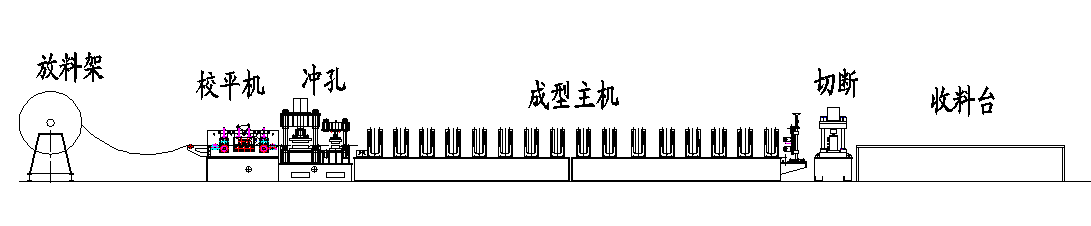

Flow chat of production

BOSJ Cable Ladder Roll Forming Machine,Ladder Cable Tray Roll Forming Machine

Equipment Structure

The production line is composed of de-coiler, punching, forming machine, cutting system , electric control system , etc.

Technical parameter

NO. Project Unit Paremeter Remark

1

 Material Type Mild steel,Galvanized sheet
Strength of material sheet Map ≥350
Thickness of material sheet mm 1.2~3.0
2 Size of production mm Reference the picture
3 Production speed m/min Forming peed 10m/min
4

Material of roller

 GCr15 quenching treatment
5 Drive type Gear box
6 Power kw About 41
7 Electric control system PLC variable frequency control
8 Dimensions(Length*width*height) m 25X4X3.9

Service from BOSJ

BOSJ offer engineers to install and commision the machines at buyer's factory,and also train your workers to operate the machine.

Guarantee: one year after finishing machine installation and commission at buyers' factory.

24 hours response time

a) Mechnical engineering team with 10 actual working experience

b)Electrical engineering team with 10 actual working experience
