Specifications
Brand Name :
BOSJ
Model Number :
BOSJ-S
Certification :
CE,ISO,SGS
Place of Origin :
JIANGSU
MOQ :
1 set
Price :
Negotiable
Payment Terms :
D/A, L/C, D/A, D/P, T/T
Supply Ability :
100 sets per year
Delivery Time :
50 days
Packaging Details :
wooden cases
Control Type :
Auto
Thickness :
1.2-1.8mm
Production Speed :
8-15m/min
Material of Cutting :
Cr12
Power :
30KW
Material :
Galvanized Steel,Aluminium,Stainless Steel
System :
PLC Control System
Motor :
AC motor
Description

Building steel galvanized steel scaffolding planks walk board Roll Forming Machine

Product Size

225mm wide

38mm thick after bending

Length 1mtr to 4mtr long

Thickness HR Sheets 2mm thick

Building Steel Galvanized Steel Scaffolding Planks Walk Sheet Roll Forming MachineBuilding Steel Galvanized Steel Scaffolding Planks Walk Sheet Roll Forming Machine

Machine Unit performance

The thickness of material sheet:2.0mm,the product drawings need to be confirmed by the buyer

The width of material: 250≤§≤450mm

Product speed: 8-10m/min

Occupy groud area: length 35m xwidth 3m

Total power: about 46kw

Power: 380V, 50Hz, 3 phase

Production Process

Passived-Decoiler --- Leveler --- servo Feeding machine --- Punching machine --- Forming machine --- Hydraulic cutting --- Collection table

Building Steel Galvanized Steel Scaffolding Planks Walk Sheet Roll Forming Machine

Machine

No. Name Quanti.

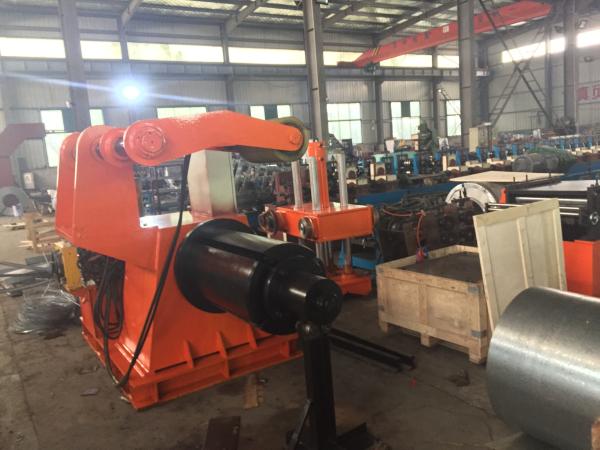

1 Passived de-coiler 1

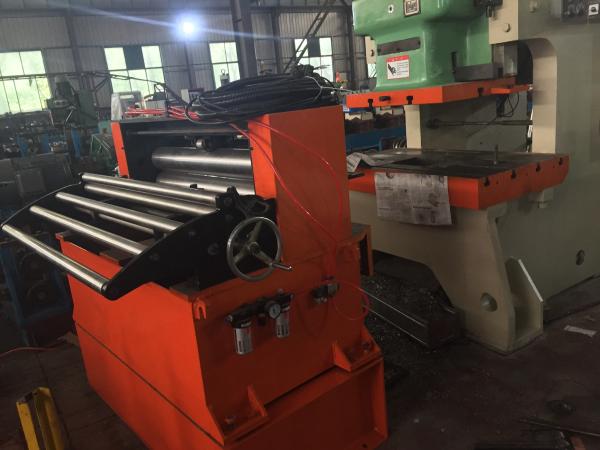

2 Leveler 1
3 Servo feeder 1
4 Punching press JF21-125 1 YANGLI GROUP
5 Walk Board Punching Die 1
6 Forming Machine 1
7 Cutting Device 1
8 Cutting Blades 1
9 Collection Table 1
10 Electric control system 1

Forming machine

Rack: cast iron frame,

Forming stations: 18stations

Material of bearing 40Cr, quenching treatment

Material:GCr15, Quenching, Hardness:HRC58-62º

Motor power: 30KW Frequency conversion motor ZQ500 reducer

Drive type: every rack has one gear power distribution box.

Building Steel Galvanized Steel Scaffolding Planks Walk Sheet Roll Forming Machine
