Galvanized Steel Board / Metal Walk Boards For Exports Roll Forming Machine
Galvanized Steel Board / Metal Walk Boards For Exports Roll Forming Machine
Galvanized Steel Board / Metal Walk Boards For Exports Roll Forming Machine
Galvanized Steel Board / Metal Walk Boards For Exports Roll Forming Machine
Galvanized Steel Board / Metal Walk Boards For Exports Roll Forming Machine
Galvanized Steel Board / Metal Walk Boards For Exports Roll Forming Machine
Galvanized Steel Board / Metal Walk Boards For Exports Roll Forming Machine
Galvanized Steel Board / Metal Walk Boards For Exports Roll Forming Machine
Specifications
Brand Name :
BOSJ
Model Number :
BOSJ-S
Certification :
CE,ISO,SGS
Place of Origin :
JIANGSU
MOQ :
1 set
Price :
Negotiable
Payment Terms :
D/A, L/C, D/A, D/P, T/T
Supply Ability :
100 sets per year
Delivery Time :
50 days
Packaging Details :
wooden cases
Control Type :
Auto
Thickness :
1.2-1.8mm
Production Speed :
8-15m/min
Material of Cutting :
Cr12
Power :
30KW
Material :
Galvanized Steel,Aluminium,Stainless Steel
System :
PLC Control System
Motor :
AC motor
Description

Factory Sale Galvanized steel board/metal walk boards for exports roll forming machine Supplier Made in China

Production Process


Passived-Decoiler --- Leveler --- servo Feeding machine --- Punching machine --- Forming machine --- Hydraulic cutting --- Collection table

Galvanized Steel Board / Metal Walk Boards For Exports Roll Forming Machine

Machine Component

No. Name Quanti.

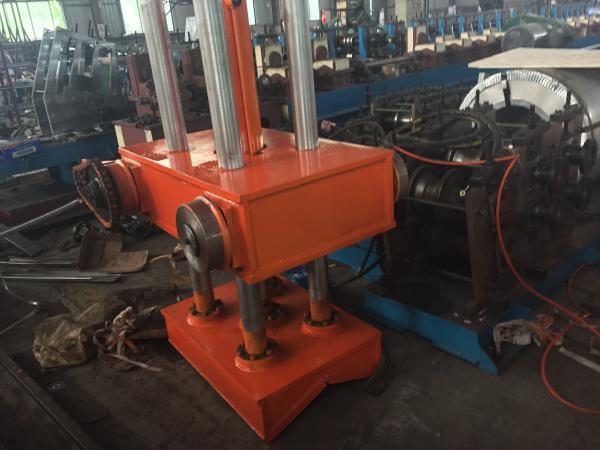

1 Passived de-coiler 1
2 Leveler 1
3 Servo feeder 1

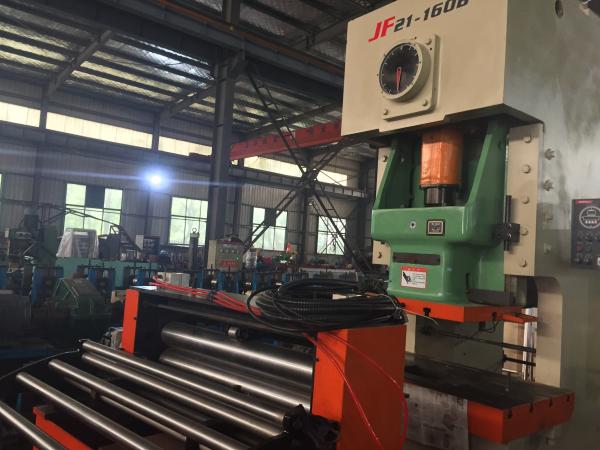

4 Punching press JF21-125 1 YANGLI GROUP
5 Walk Board Punching Die 1
6 Forming Machine 1

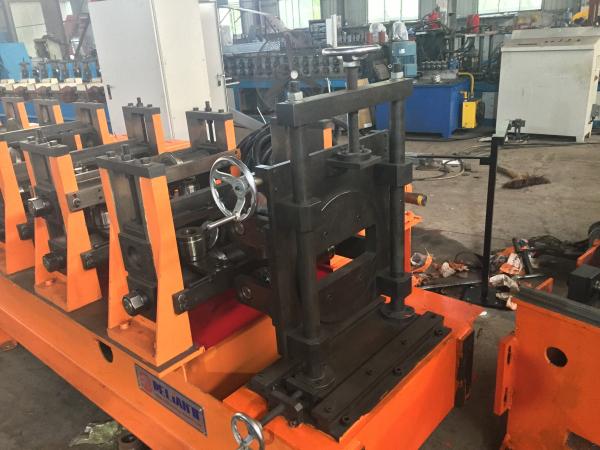

7 Cutting Device 1
8 Cutting Blades 1
9 Collection Table 1
10 Electric control system 1

Product Size

225mm wide
38mm thick after bending
Length 1mtr to 4mtr long
Thickness HR Sheets 2mm thick
Galvanized Steel Board / Metal Walk Boards For Exports Roll Forming Machine


Machine Unit performance
The thickness of material sheet:2.0mm,the product drawings need to be confirmed by the buyer
The width of material: 250≤§≤450mm
Product speed: 8-10m/min
Occupy groud area: length 35m xwidth 3m
Total power: about 46kw
Power: 380V, 50Hz, 3 phase

Galvanized Steel Board / Metal Walk Boards For Exports Roll Forming Machine

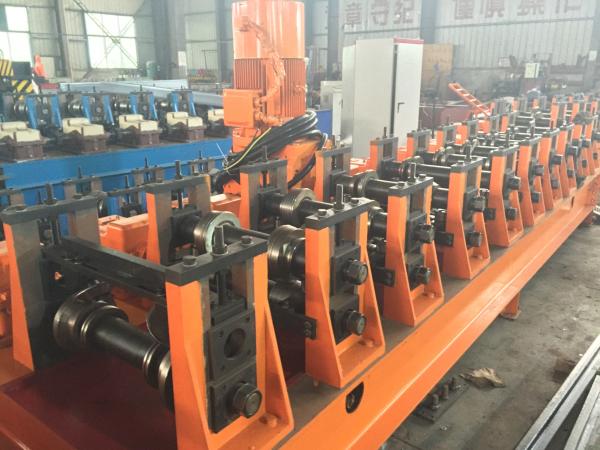

Forming machine
Rack: cast iron frame,
Forming stations: 18stations
Material of bearing 40Cr, quenching treatment
Material:GCr15, Quenching, Hardness:HRC58-62º
Motor power: 30KW Frequency conversion motor ZQ500 reducer
Drive type: every rack has one gear power distribution box.

Galvanized Steel Board / Metal Walk Boards For Exports Roll Forming Machine

Electronic controlling: PLC

Full line is controlled by PLC control system with touch screen operation to achieve the human and PLC interactive. The operator can monitor the setting program (programmable control) and modify the parameter to control the line. Also can check the running status, parameter and error indication etc...
Operation type: manual /auto two type switch. In manual position: can run the each part of the machine. In auto position: can run the full line. The emergency stop ensures the safe of the equipment and operator.
Machine side is equipped with the manual operation control panel for convenient worker to operate;
