Full Automatic Perforated Type Cable Tray Roll Forming Machine 8-15m/min
Full Automatic Perforated Type Cable Tray Roll Forming Machine 8-15m/min
Full Automatic Perforated Type Cable Tray Roll Forming Machine 8-15m/min
Full Automatic Perforated Type Cable Tray Roll Forming Machine 8-15m/min
Full Automatic Perforated Type Cable Tray Roll Forming Machine 8-15m/min
Full Automatic Perforated Type Cable Tray Roll Forming Machine 8-15m/min
Full Automatic Perforated Type Cable Tray Roll Forming Machine 8-15m/min
Full Automatic Perforated Type Cable Tray Roll Forming Machine 8-15m/min
Specifications
Brand Name :
BOSJ
Model Number :
BOSJ-C
Certification :
ISO,CE,SGS
Place of Origin :
JIANGSU
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, D/A, D/P
Supply Ability :
60 Sets Per Year
Delivery Time :
50-60 working days
Packaging Details :
Suitable Size Container for Machine
Production Amount :
8-15m/min
Roller Material :
Cr12
PLC System :
MITSUBISHI,SIEMENS
Thickness :
1.2-2.0mm
Machine Type :
Full Automatic
Function :
Cable Tray,trunking system
Spare Parts :
Punching mould
Operation Type :
PLC Interface
Driven type :
Gearbox
Description

Perforated Type Cable Trays Roll Forming Production Machine Line manufacturer

1. Working Flow

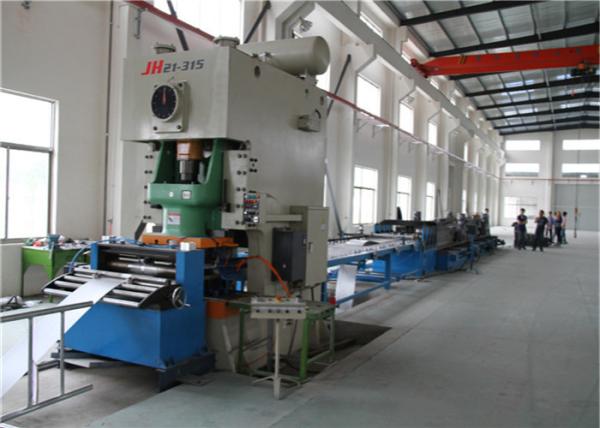

Decoiler ---- Leveler ---- Punching ---- Roll forming ---- Cutting machine ---- Electric control system

Full Automatic Perforated Type Cable Tray Roll Forming Machine 8-15m/minFull Automatic Perforated Type Cable Tray Roll Forming Machine 8-15m/minFull Automatic Perforated Type Cable Tray Roll Forming Machine 8-15m/min

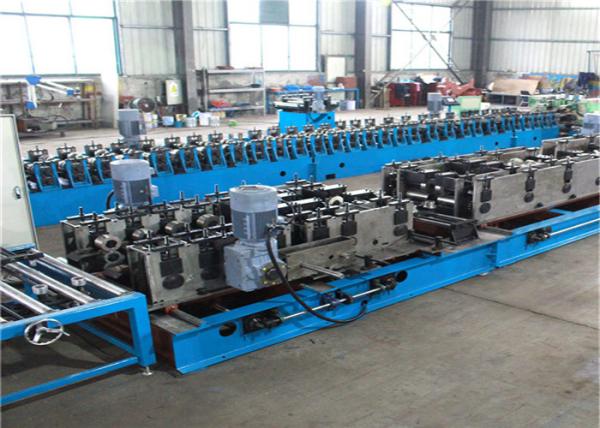

Cable Tray Roll Forming Machine

No. Name Type and size Quantity

(KW)

Power(kw)
1 De-coiler 1 set
2 Straightener 1 set 4
3 Servo-feeder 1 set 4
4 Punching Press YANGLI GROUP 1 set 25
5 Punching Mould 1 set
6 Conveying Table 1 set
7 Roll Forming machine Full automatic control type 1 set 15
8 Collection table 1set
9 Electric Control System 1 set

7.5

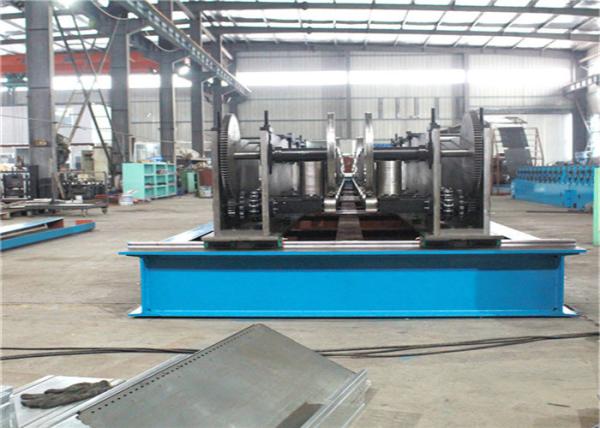

Full Automatic Perforated Type Cable Tray Roll Forming Machine 8-15m/min

Machine Parameter

NO. Project Unit Parameter Remark

1		 Material Type High strength steel
Strength of material sheet Map ≥350
Thickness of material sheet mm 1.2~2.0
2 Size of production mm
Reference the picture
3 Production speed m/min Punching speed 4m/min
Forming speed 10m/min
4 Material of roller GCr15 quenching treatment
5 Drive type Gear
6 Power kw About 75
7 Electric control system PLC variable frequency control
8 Dimensions(Length*width*height) m 55X4X3.9

Our Services

BOSJ offer engineers to install and commision the machines at buyer's factory,and also train your workers to operate the machine.
Guarantee: one year after finishing machine installation and commission at buyers' factory.
24 hours response time
a) Mechnical engineering team with 10 actual working experience
b)Electrical engineering team with 10 actual working experience
