Medium / Heavy Duty Cable Tray Roll Forming Machine Trunking System
Medium / Heavy Duty Cable Tray Roll Forming Machine Trunking System
Medium / Heavy Duty Cable Tray Roll Forming Machine Trunking System
Medium / Heavy Duty Cable Tray Roll Forming Machine Trunking System
Medium / Heavy Duty Cable Tray Roll Forming Machine Trunking System
Medium / Heavy Duty Cable Tray Roll Forming Machine Trunking System
Medium / Heavy Duty Cable Tray Roll Forming Machine Trunking System
Medium / Heavy Duty Cable Tray Roll Forming Machine Trunking System
Specifications
Brand Name :
BOSJ
Model Number :
BOSJ-C
Certification :
ISO,CE,SGS
Place of Origin :
JIANGSU
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, D/A, D/P
Supply Ability :
60 Sets Per Year
Delivery Time :
50-60 working days
Packaging Details :
Suitable Size Container for Machine
Production Amount :
8-15m/min
Roller Material :
Cr12
PLC System :
MITSUBISHI,SIEMENS
Thickness :
1.2-2.0mm
Machine Type :
Full Automatic
Function :
Cable Tray,trunking system
Spare Parts :
Punching mould
Operation Type :
PLC Interface
Driven type :
Gearbox
Description

Light, Medium & Heavy Duty Cable Tray Roll Forming Production Machine factMedium / Heavy Duty Cable Tray Roll Forming Machine Trunking System

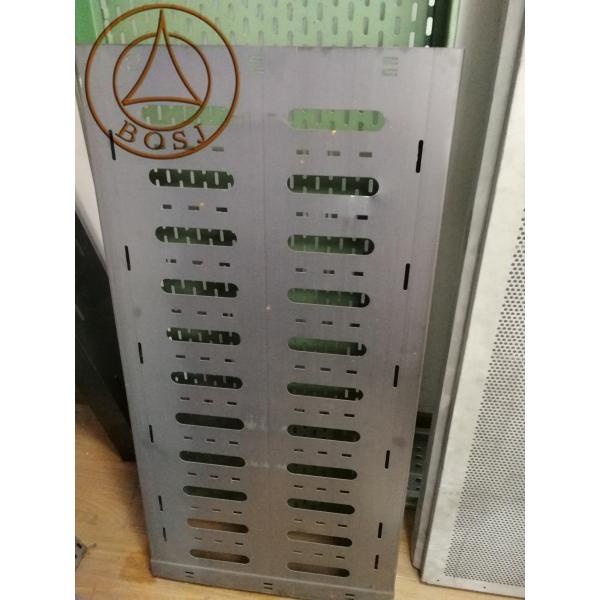

New Type Cable Tray

Machine Component

No. Name Type and size Quantity Power(kw)
1 De-coiler 1 set
2 Straightener 1 set 4
3 Servo-feeder 1 set 4
4 Punching Press YANGLI GROUP 1 set 25
5 Punching Mould 1 set
6 Conveying Table 1 set
7 Roll Forming machine Full automatic control type 1 set 20
8 Collection table 1set
9 Electric Control System 1 set

Service from BOSJ

BOSJ offer engineers to install and commision the machines at buyer's factory,and also train your workers to operate the machine.

Guarantee: one year after finishing machine installation and commission at buyers' factory.

24 hours response time

a) Mechnical engineering team with 10 actual working experience

b)Electrical engineering team with 10 actual working experience

Medium / Heavy Duty Cable Tray Roll Forming Machine Trunking System


5,Machine Parameter

NO. Project Unit Parameter Remark

1		 Material Type High strength steel
Strength of material sheet Map ≥350
Thickness of material sheet mm 1.2~2.0
2 Size of production mm
Reference the picture
3 Production speed m/min Punching speed 4m/min
Forming speed 10m/min
4 Material of roller GCr15 quenching treatment
5 Drive type Gear
6 Power kw About 75
7 Electric control system PLC variable frequency control
8 Dimensions(Length*width*height) m 55X4X3.9
