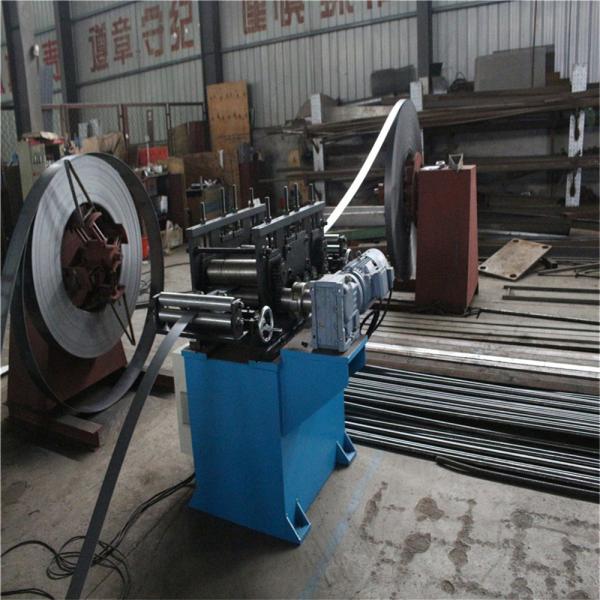

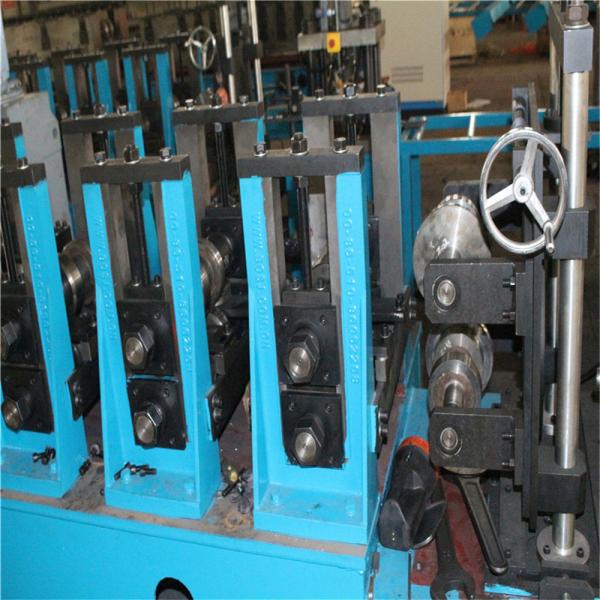

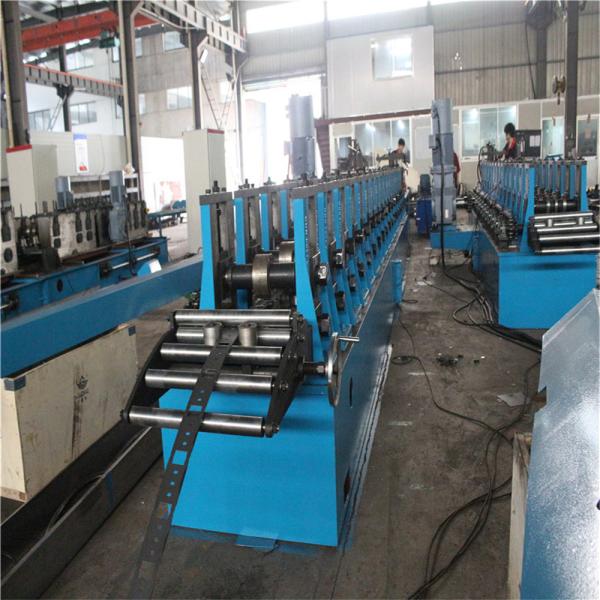

1.5-2.0mm Perforated Cable Tray Roll Forming Machine for Making CT600X90 / 500X90 / 300X90 Cable Tray Profiles
1.5-2.0mm Perforated Cable Tray Roll Forming Machine for Making CT600X90 / 500X90 / 300X90 Cable Tray Profiles
1.5-2.0mm Perforated Cable Tray Roll Forming Machine for Making CT600X90 / 500X90 / 300X90 Cable Tray Profiles
1.5-2.0mm Perforated Cable Tray Roll Forming Machine for Making CT600X90 / 500X90 / 300X90 Cable Tray Profiles
1.5-2.0mm Perforated Cable Tray Roll Forming Machine for Making CT600X90 / 500X90 / 300X90 Cable Tray Profiles
1.5-2.0mm Perforated Cable Tray Roll Forming Machine for Making CT600X90 / 500X90 / 300X90 Cable Tray Profiles
1.5-2.0mm Perforated Cable Tray Roll Forming Machine for Making CT600X90 / 500X90 / 300X90 Cable Tray Profiles
1.5-2.0mm Perforated Cable Tray Roll Forming Machine for Making CT600X90 / 500X90 / 300X90 Cable Tray Profiles
Specifications
Brand Name :
BOSJ
Model Number :
BOSJ-C
Certification :
ISO,CE,SGS
Place of Origin :
JIANGSU
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, D/A, D/P
Supply Ability :
60 Sets Per Year
Delivery Time :
50-60 working days
Packaging Details :
Suitable Size Container for Machine
Production Amount :
8-15m/min
Roller Material :
Cr12
PLC System :
MITSUBISHI,SIEMENS
Thickness :
1.2-2.0mm
Machine Type :
Full Automatic
Function :
Cable Tray,trunking system
Spare Parts :
Punching mould
Operation Type :
PLC Interface
Driven type :
Gearbox
Description

1.5-2.0mm Perforated Cable Tray Roll Forming Machine for Making CT600X90 / 500X90 / 300X90 Cable Tray Profiles

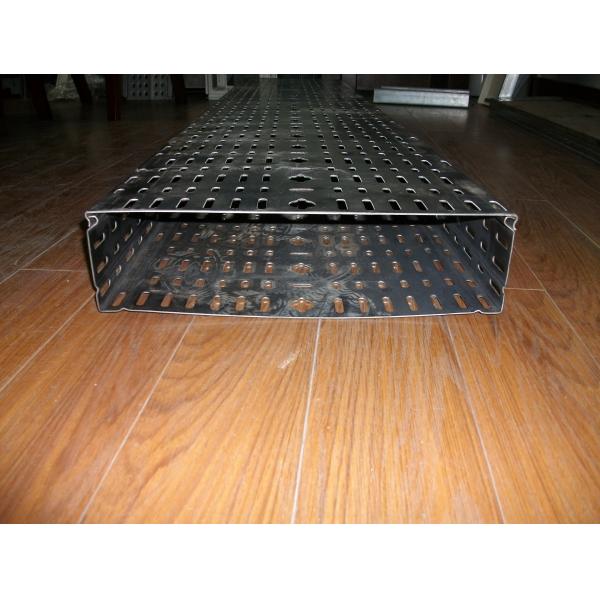

Popular Cable Tray

1.5-2.0mm Perforated Cable Tray Roll Forming Machine for Making CT600X90 / 500X90 / 300X90 Cable Tray Profiles

Production processing

Decoiler---flatting---feeding & punchine---forming---cut-to-length---collection table.

Equipment struction introduction.

This production line may produce the cable tray, the different sizes through the replace punching moulds to complete. Forming machine is combined and adjustable, one set of combined rollers complete all cable tray products, the change size through adjust distance of rollers to complete.

Equipment capacity

1, The production line can produce many sizes of cable tray according to producing requirement.(material steel width 100mm≤§≤860mm)

2, Line speed:2.5-5M/min

3, Continuous forming speed:10-15M/min

4, Steel thickness:1-2.5mm

5 , Material : Mild steel ,galvanized steel coil

6, The production line divide into two operations: automatic &handle. It can work with linkage and subsection.

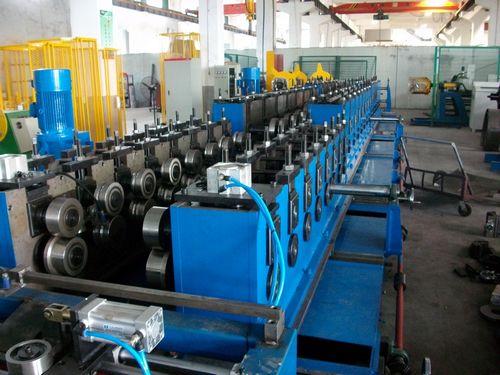

Cable Tray Roll Forming Machine

No. Name Type and size Quantity

(KW)

Power(kw)
1 De-coiler 1 set
2 Straightener 1 set 4
3 Servo-feeder 1 set 4
4 Punching Press YANGLI GROUP 1 set 25
5 Punching Mould 1 set
6 Conveying Table 1 set
7 Roll Forming machine Full automatic control type 1 set 15
8 Collection table 1set
9 Electric Control System 1 set

7.5

1.5-2.0mm Perforated Cable Tray Roll Forming Machine for Making CT600X90 / 500X90 / 300X90 Cable Tray Profiles
