Itray Ladder Cable Tray Roll Forming Production Machine Line
Itray Ladder Cable Tray Roll Forming Production Machine Line
Itray Ladder Cable Tray Roll Forming Production Machine Line
Itray Ladder Cable Tray Roll Forming Production Machine Line
Itray Ladder Cable Tray Roll Forming Production Machine Line
Itray Ladder Cable Tray Roll Forming Production Machine Line
Itray Ladder Cable Tray Roll Forming Production Machine Line
Itray Ladder Cable Tray Roll Forming Production Machine Line
Specifications
Brand Name :
BOSJ
Model Number :
BOSJ-C
Certification :
ISO,CE,SGS
Place of Origin :
JIANGSU
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, D/A, D/P
Supply Ability :
60 Sets Per Year
Delivery Time :
50-60 working days
Packaging Details :
Suitable Size Container for Machine
Production Amount :
8-15m/min
Roller Material :
Cr12
PLC System :
MITSUBISHI,SIEMENS
Thickness :
1.2-2.0mm
Machine Type :
Full Automatic
Function :
Cable Tray,trunking system
Spare Parts :
Punching mould
Operation Type :
PLC Interface
Driven type :
Gearbox
Description

New Itray Ladder Cable Tray Roll Forming Production Machine Line Factory

Ladder Type Cable Tray Product

Itray Ladder Cable Tray Roll Forming Production Machine Line

Structure and performance of machine

Work flow

The processing

Itray Ladder Cable Tray Roll Forming Production Machine Line

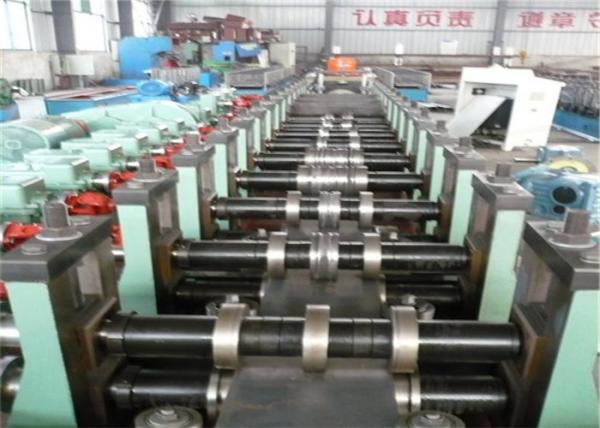

Main Roll Forming machine

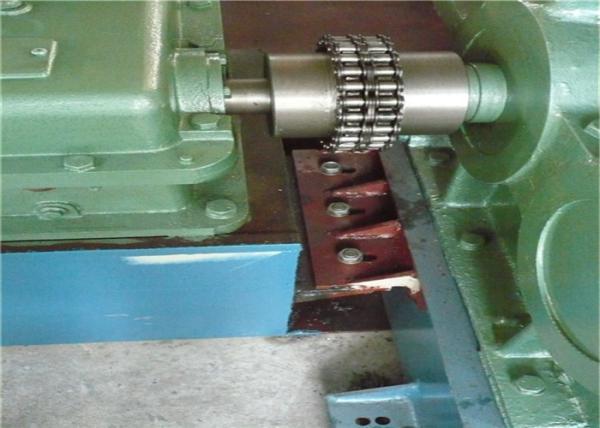

Structure:Gantry type and drive by chain

Qty.of forming rollers:12+2 sets of rollers

Maximum width of feeding:300mm

Max. of thickness:2.5mm

Diameter of axle: φ70mm

Material of rollers:GCr15,quenching treatment,HRC58-62°

Power of motor:22kw ,drive by variable frequency motor

1.General structure of equipment

1.1 Area of production line:length 32m x width3.0m x height 3.5m

1.2 Feeding direction: from left side to right side

1.3 Power: 220V, 60Hz, 3 phase

1.4 Pneumatic station pressure 0- 0.7MPa.,0.5m3/min.

1.5 Hydraulic oil: 46# Hydraulic oil

1.6 Gear oil: 18# gear oil

1.7 Equipment Color: Main blue,the drive and safeguard takes red or

yellow(warning color)

2. Technical parameters of machine

2.1 Width of material sheet: 70~300mm

2.2 Thickness of material sheet: 1.5~2.5mm

2.3 Material: MS,GI

2.4 Length of the work piece:0—6000 mm

2.5 Weight of equipment:30T

2.6 Speed of production line:0-5m/min

2.7 Total Power:39KW

Range of supply and service

NO. Item Type and size Qty.

Power

(KW)

 Remark
1 De-coiler MT-300 1 set
2 Leveler HS-300 1 set 3
3 Servo feeder NCF300 1 set 2.2
4 Hydraulic punching 1 set 7.5
5 Hydraulic punching mould 2 sets
6 Forming machine GY160 type(by chain) 1 set 22

7 Hydraulic cutting YQ300X1.2Z 1 set 5.5
8 Run-out table SL-400X4000 1 set
9 PLC 1 set

BOSJ Factory
BOSJ is a professional and leading roll forming machine manufacturer,we have a 15 years working team to work with you.
Near Shanghai....
Warmly welcome you to visit our factory
