Auto Control Sheet Metal Forming Machine 8m/min Hydraulic Cutting Gear Driver
Auto Control Sheet Metal Forming Machine 8m/min Hydraulic Cutting Gear Driver
Auto Control Sheet Metal Forming Machine 8m/min Hydraulic Cutting Gear Driver
Auto Control Sheet Metal Forming Machine 8m/min Hydraulic Cutting Gear Driver
Specifications
Brand Name :
BOSJ
Model Number :
BOSJ-S
Certification :
CE,ISO,SGS
Place of Origin :
JIANGSU
MOQ :
1 set
Price :
Negotiable
Payment Terms :
D/A, L/C, D/A, D/P, T/T
Supply Ability :
100 sets per year
Delivery Time :
50 days
Packaging Details :
wooden cases
Control Type :
Auto
Thickness :
1.2-1.8mm
Production Speed :
8-15m/min
Material of Cutting :
Cr12
Power :
30KW
Material :
Galvanized Steel,Aluminium,Stainless Steel
Scaffold Type :
Walk board,end cap in one production line
System :
PLC Control System
Description

Marine Steel Scaffolding Planks Board Walkboard Roll Forming Machine

1, Unit performance

The thickness of material sheet: 1.2-1.8,the product drawings need to be confirmed by buyer

The width of material: 250≤§≤520

Product speed: 0-8m/min

Occupy groud area: length 30m xwidth 3m

Total power: about 62kw

2, Equipment structure

It is composed of passived-decoiler, leveler, servo feeding machine, punching machine, roll forming machine, hydraulic cutting machine, collection table, electrical control system etc.

3, Each part main parameter:

3,1 Passived Decoiler
Decoiler: decoiler, Inner expanding type, capacity:5T
Inner diameter material roll: ¢480~¢520mm
Outter diameter material roll: ≤1500mm

3,2 Leveler
Motor: 7.5KW Frequency conversion motor

3,3 Servo Feeding machine
Drive: 4 kw Servo motor


3,4 Punching machine
punching press: JF21-110
Maximum press: 110tons
Material of mould: Material:Cr12Mov, Quenching,Hardness:HRC58-62º
Quantity of punching dies:1sets

3,5 Forming machine
Rack: cast iron frame,
Forming stations: 16 stations
Material of bearing 40Cr, quenching treatment
Material:GCr15, Quenching, Hardness:HRC58-62º
Motor power: 30KW Frequency conversion motor ZQ500 reducer
Drive type: every rack has one gear power distribution box.

Technical Parameter

Description

Offered Specification
Rolling speed 12-15m/min
Rolling thickness 1.5mm-2.0mm
Raw material Galvanized steel or blank steel
Roller stations About 20 stations
Roller material Gcr15, Quench HRC58-62 Plated Chrome
Shaft diameter Φ76mm
Transmission Gearbox
Material of chain 45# Advanced Steel (Diameter: 76mm), thermal refining
Material of cutting Cr12Mov with quench HRC58-62°
Tolerance 10m+-0.5mm
Hydraulic station 5.5kw

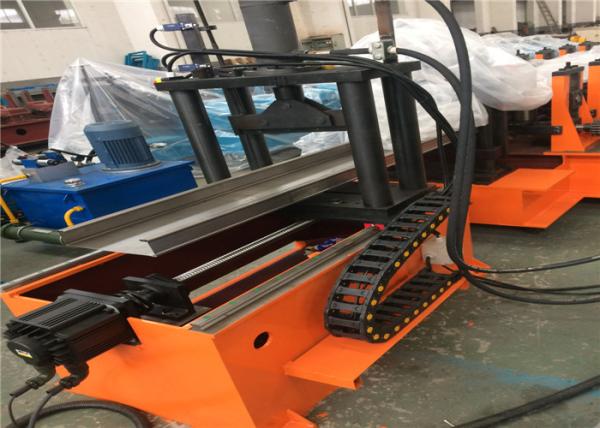

3,6 Hydraulic cutting
Hydraulic pressure cutting
Hydraulic pressure pump:5.5KW
Material of cutting blade: Cr12, Quenching
Hydraulic cutting quantity:1piece

Auto Control Sheet Metal Forming Machine 8m/min Hydraulic Cutting Gear Driver

3,7 Electronic controlling: PLC


Main Machine Parameter

No. Item Unit Data Remark

1		 Raw material Type MSgalvanized sheet
Strength of panel Map ≥350
Thickness of panel mm 1.2~2.0
2 Size mm See figure
3 Speed m/min 6~8
4 Material of roller GCr15Hardening treatment
5 Drive type Gear box
6 Total power kw About 45
7 Electrical system PLC Inverter control
8 Contour dimension(L*W*H) m 35X4X3.9


BOSJ OFFE Related Products


The details of the scaffolding machine

NO. CONTENTS
1 Scaffolding plank standing tube welding device
2 Scaffolding plank ledger welding device

3
Punching Device		 Full automatic punching device
Semi-automatic punching device
Manual punching device
Spare part:punching mould

4
diagonal brace flattening &punching device		 Full automatic diagonal brace flattening &punching device
Semi automatic diagonal brace flattening &punching device
Manual diagonal brace flattening &punching device
Spare part:punching mould

5
Tube cutting machine		 Auto Blade cutting Device
Swing saw cutting device
Direct saw cutting device
Auto direct saw cutting device
6 Auto Scaffolding plank wedling line Auto robot welding
Auto robot hand welding
7 Base jack & U-head jack welding device
8 Auto scaffolding plank roll forming machine
