Galvainzed Steel Cable Tray Roll Forming Machine , Cr12 Roller Roll Forming Equipment
Galvainzed Steel Cable Tray Roll Forming Machine , Cr12 Roller Roll Forming Equipment
Galvainzed Steel Cable Tray Roll Forming Machine , Cr12 Roller Roll Forming Equipment
Galvainzed Steel Cable Tray Roll Forming Machine , Cr12 Roller Roll Forming Equipment
Specifications
Brand Name :
BOSJ
Model Number :
BOSJ-C
Certification :
ISO,CE,SGS
Place of Origin :
JIANGSU
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, D/A, D/P
Supply Ability :
60 Sets Per Year
Delivery Time :
50-60 working days
Packaging Details :
Suitable Size Container for Machine
Speed :
8-15m/min
Roller Material :
Cr12
PLC Control System :
MITSUBISHI,SIEMENS
Thickness :
1.2-2.0mm
Working Height :
50-150mm
Width :
50-600mm
Operation Workers :
1-2 people
Machine Type :
Full Automatic
After-serivce :
Engineers Team available
Normal Maintance :
One week
Guarantee Time :
one year
Leveler :
Nine rollers
Punching Device :
Hydraulic
Description

Equipment capabilities

It can according to the need to produce the steel width (100mm≤§≤300mm), many kinds of specification electric cable bridges and other structure product.

Product speed by punching: 2.55m/min

Continuous rollforming speed: 10-15m/min

Material thickness: 1~3mm

Material require: Q235 cold roll steel

Production line has automatic and manual two operating mode, may realize the linkage and the partition revolution work.

Basic Working Environment

1.1 Area of production line:length 32m x width3.0m x height 3.5m

1.2 Feeding direction: from left side to right side

1.3 Power: 220V, 60Hz, 3 phase

1.4 Pneumatic station pressure 0- 0.7MPa.,0.5m3/min.

1.5 Hydraulic oil: 46# Hydraulic oil

1.6 Gear oil: 18# gear oil

1.7 Equipment Color: Main blue,the drive and safeguard takes red or

yellow(warning color)

Cable Tray Cover Line Working Craft

Decoiler--Leveler---Hydraulic Punching---Roll Forming---Hydraulic Cutting Device---Collection

Galvainzed Steel Cable Tray Roll Forming Machine , Cr12 Roller Roll Forming Equipment

Machine Component

NO. Item Type and size Qty.

Power

(KW)

 Remark
1 De-coiler MT-300 1 set
2 Leveler HS-300 1 set 3
3 Servo feeder NCF300 1 set 2.2
4 Hydraulic punching 1 set 7.5
5 Hydraulic punching mould 2 sets
6 Forming machine GY160 type(by chain) 1 set 22

7 Hydraulic cutting YQ300X1.2Z 1 set 5.5
8 Run-out table SL-400X4000 1 set
9 PLC 1 set

General Machine Description

De-coiler

Width of material sheet:70~300mm；

Thickness of material sheet:1.5~2.5mm

Leveler

a.Type: 5 rollers type leveler

Thickness of material sheet:1.5~2.5mm

NCF300 Servo feeder

Function:Accurately Feeding Material

Hydraulic punching

Function:Punch the connect holes at two ends and punch the fixing holes

Qty. of punching mould:2 sets

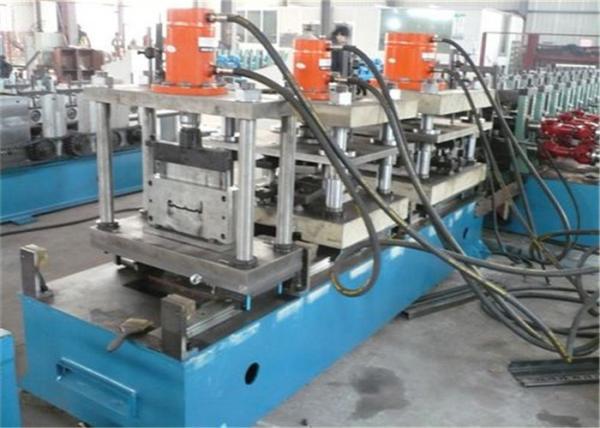

Forming machine

Structure:Gantry type and drive by chain

Qty.of forming rollers:12+2 sets of rollers

Maximum width of feeding:300mm

Max. of thickness:2.5mm

Diameter of axle: φ70mm

Material of rollers:GCr15,quenching treatment,HRC58-62°

Cutting machine

Hydraulic cutting device

Collection table

Structure: Roller type without power

PLC control system
