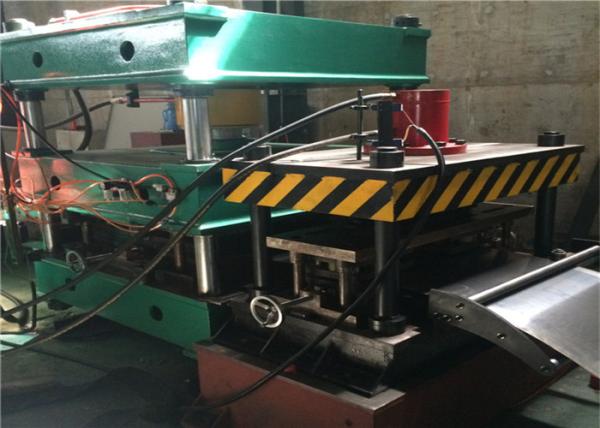

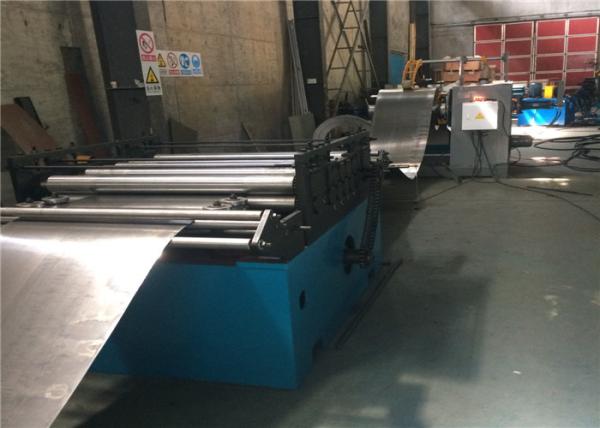

5.5 KW Storage Rack Roll Forming Machine , Roller Forming Machine Manual Uncoiler
5.5 KW Storage Rack Roll Forming Machine , Roller Forming Machine Manual Uncoiler
5.5 KW Storage Rack Roll Forming Machine , Roller Forming Machine Manual Uncoiler
5.5 KW Storage Rack Roll Forming Machine , Roller Forming Machine Manual Uncoiler
Specifications
Brand Name :
BOSJ
Model Number :
BOSJ-SH
Certification :
SGS,ISO,CE
Place of Origin :
JIANGSU
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
20 sets per year
Delivery Time :
60 days
Packaging Details :
wooden cases
Working Material :
Galvanized Steel.Q235
Working Thickness :
0.8-1.2mm
Speed :
8-10m/min
Equipment Control Type :
Automatic/Semi-automatic
Roller Material :
Cr12
Certificate :
SGS,CE,ISO
Welding Machine Type :
Spot Welding
After Service :
Available,commission and Installation and Training
rack machine Chain width: :
1.5mm
upright rack channel making machine axis: :
45#steel
Description

Most widely used as one of storage system,pallet has the feature of good appearance,safety, fast in picking and storage room saving.Painting is fast and lasts as the surface is painted by spraying static power.Each level can be adjustable at 75mm per pitch and the maximum length of 16 meters.

This type of rack is suitable for storage of all kinds of goods with the feature of fast in picking and withdrawing,suitable for operation by fortlift.

Shelf System Machine specification(All parameter can be design as clients requirement)
1. suitable raw material:PPGI or colored steel
2. material thickness:0.3-0.8mm
3. roller material:high grade 45# Steel, quenched and heated process, surface with 0.05mm hard chrome
4. shaft material:Shaft Material: High Grade 45# steel, Heated and quenched HRC 45-50
5. shaft diameter:76mm
6. Material of Rack: complete welded structure of A3 steel plate 18mm thickness
7. Material Of Blade: Cr12 with polished, heat treatment and quenched HRC 60-62
8. Main power:7.5kw
9. Main axles material: High Grade 45# steel

10. Machine Frame stand: welded with 36 # I-steel

System Product: Shelf column, Shelf crossbeam, Shelf stay rod, Shelf plywood etc.



Advantages of Heavy Duty Pallet Racking .
1. It is suitable to be used in factories, manufactures and warehouse
2. Size(L*W*H): 1200/1500/2000*450/600/1000*1800/2000/2500mm
3. Perfect for storing categorized products in a neat and tidy way
4. heavy-duty shelf set for warehouse shelving
5. Strong structure,special desigin for the total fucntion
6. Easy installation
7. Customization is acceptable
8. High Working Efficiency
9. Long-Service Lifespan

Determinant of Heavy Duty Pallet Racking design
1. The weight of your goods (trays, steel containers / boxes are included)
2. The dimension of your goods together with pallets ( Length Width Height )
3. The maximum height of your forklift and the available height of your warehouse
4. The dimension of your forklift,if you have,please offer us,we will consider this fact.
5. The fork direction,if you have,please offer us,we will consider this fact.
6. The dimension of your warehouse
7. The path of the transportation

Control System
PLC Colored Touch Screen
Main Frame
350H STEEL
Side Plate Thickness
18mm
Main Power
15kw+4kw
Power Supply
380V, 3-Phase,50Hz or any
Forming Speed
8-12m/min
Roll Station
19 stands
Shaft Diameter
80mm
Feeding Thickness
1.5-2.5mm
Cutter Standard
Cr12
Roller Standard
45# Plating Cr


Main Machine ParameterMain Machine Working Craft

5.5 KW Storage Rack Roll Forming Machine , Roller Forming Machine Manual Uncoiler



Technical Datas roll forming machine
1 Material width As your regards
2 The effective width As your regards
3 The thickness of Coil 1.0-3.0mm or more
4 Application Warehouse system
5 The overall dimensions 6800mmX1500mmX1300mm
6 Total weight 5 Tons
7 Main Power 5.5 KW
8 Uncoiler Manual Uncoiler
9 Inner diameter 508--610mm
10 Outer diameter 1200mm
11 Loading weight 3T
12 Forming speed 5-10m/min
13 Forming steps 12 stations or more
14 Bracket welded with 36 # I-steel
15 Material of Shafts 45# steel with rough finished and then refined finished
16 Diameter of the Roll 76mm
17 Material of Rolls
high quality 45#steel coated with hard chromium 0.05
mm

18		 Processing Technology rough processing ---refined processing--Hard Chromium Plating.
19 Material of Rack
complete welded structure of A3 steel plate 16mm
thickness

20		 Transmission Transmitted by the chain-bracket/ Gearbox T180
21 Material of Chain 45#steel with heat treatment of HRC45-50°
22 Holders under chain for lubricant By the machine
23 Material of cutting blade Cr12 with quenched treatment 60-62
24 Cutting system Hydraulic cutting
25 Voltage 380V/50HZ/3phase


5.5 KW Storage Rack Roll Forming Machine , Roller Forming Machine Manual Uncoiler

BOSJ offer you the full range warehouse system products,BOSJ has a profesional engineering and production team to work with you.
