Motorized Valves Rolling Shutter Strip Forming Machine 0.5-1.5mm Galvanized Steel
Motorized Valves Rolling Shutter Strip Forming Machine 0.5-1.5mm Galvanized Steel
Motorized Valves Rolling Shutter Strip Forming Machine 0.5-1.5mm Galvanized Steel
Motorized Valves Rolling Shutter Strip Forming Machine 0.5-1.5mm Galvanized Steel
Specifications
Brand Name :
BOSJ
Model Number :
BOSJ-F
Certification :
ISO,CE,SGS
Place of Origin :
JIANGSU
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
2 sets per month
Delivery Time :
50 days
Packaging Details :
wooden cases,plastic packing
Machine Control Power :
Hydraulic type
Production Speed :
8-10m/min
Roller Material :
GCR15
Roller Axis :
60mm/70mm
Material Thickness :
0.5-1.5mm
Final Product :

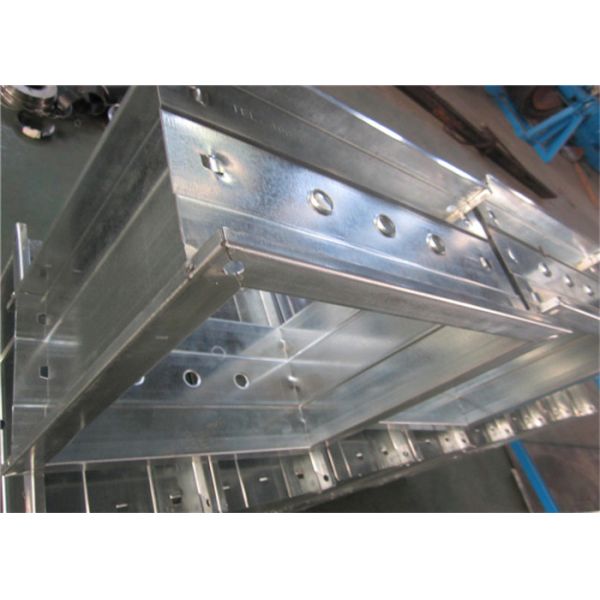

Fire Damper Frame
Control System :
PLC system
System :
HVAC System
Description

HVAC System Fire Frame Roll forming Line production

1, Production Forming process

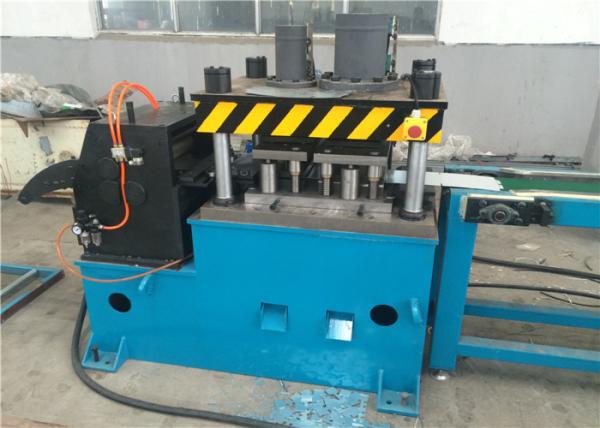

De-coiler—servo feeding—gap and cut off mould—forming ---collection table

2, Equipment composing parts

Equipment is composed of de-coiler ,feed system ,gap and cut off , forming machine,collection table ,electric control system , etc.

3, Technical parameter of equipment main parts

Structure and performance of machine

Processing

Passive De-coiler---Leveler---Servo feeder,Punching---Forming---cutting--Collection

Main structure and performance of machine

De-coiler Technical data

Width of material sheet:100~300mm；；Thickness of material sheet:2.5mm；

Inner diameter: φ508mm Range of expanding: ф480-520 mm

Maximum outer diameter: φ1200mm, loading: ≤3T

Leveler

Working roller: Nine rollers type leveling machine

Feature of structure: after the quenching and tempering, chrome-plating processing, the rigidity, surface roughness of the roller etc. are all enhance greatly; It is composed by the clamping roller and the leveling roller, the clamping roller may the independent control, the leveler has one pair of horizontal guide roller and two pairs of vertical guider roller and easy to adjust by hand wheel.

Main forming machine

Forming stations:18stations(roller)

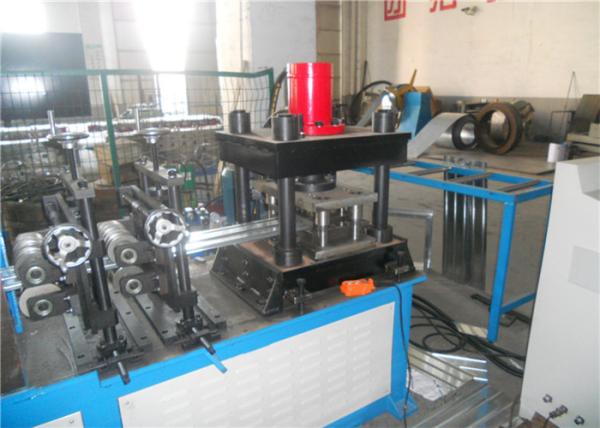

Type of profile(as photos)

Forming frame:Gantry type

Max. Feeding width:≤300㎜

Max. Feeding thickness:2.5mm

Roller axis:φ70 mm

Material of the roller:Gcr15,quenching treatment,HRC58-62°

Main drive motor:22kw frequency motor drive

Cutting device

Structure:hydraulic cutting blade

Collection table

Structure:Roller type with no power


NO.
Project
Unit
parameters
Remark

1
Material		 type Mild steel Galvanized sheet
Strength of material sheet Map ≥350
Thickness of material sheet mm 0.8~1.5
2 Size of production mm
Reference the picture
3 Production speed m/min 6~8
4 Material of roller GCr quenching treatment
5 Drive type Gear box
6 Power kw About 34
7 Electric control system PLC variable frequency control
8 Dimensions(Length*width*height) m 28X4X3.9
